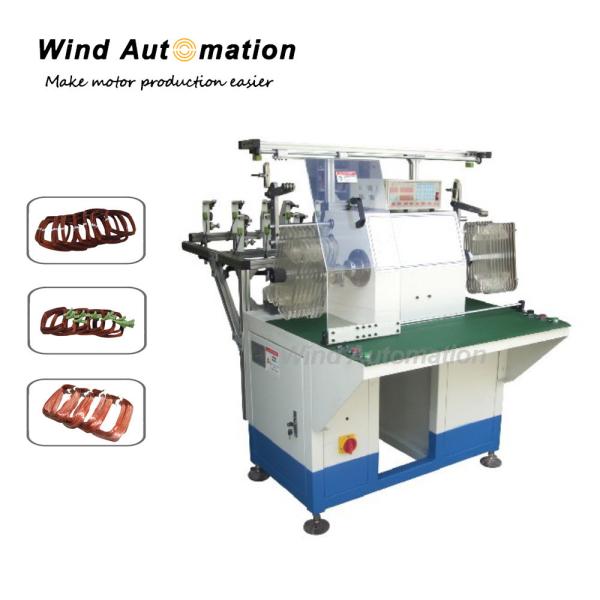

Multistrand Type Coil Winding Machine
Multistrand Type Coil Winding Machine
Specifications
Model NO. :
WIND-350-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Multistrand Type Coil Winding Machine
Multistrand Type Coil Winding Machine

This stator coil winding machine has a wide application. The tooling should be unloaded manually after coil winding.

(1) Specification
Wire diameter 0.2~1.5mm
Stator OD 210mm
Stack height 180mm
Winding head 3
Swing OD 350mm
Screw travel 400mm
Winding speed Max 1600r/min
Air pressure Min 0.4Mpa
Power supply 220V 2.2KW
Weight About 350KG
Dimension 1300x1260x1280mm


(2) Application
Apply to all kinds of micro motors such as AC motor, servo motor, hybrid car motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 3
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor
