Specifications
Model NO. :
WIND-ASW-2
Customized Service :
Provided
Loading Unloading :
Loading / Unloading Automatically
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Package Size :
2500.00cm * 1200.00cm * 1850.00cm
Package Gross Weight :
1200.000kg
Description
Shaded Motor Power Tool Motor Stator Automatic Coil Winding Machine
Aluminum Wire Stator Automatic Coil Winding Machine with 1200.000kg Gross Weight Package

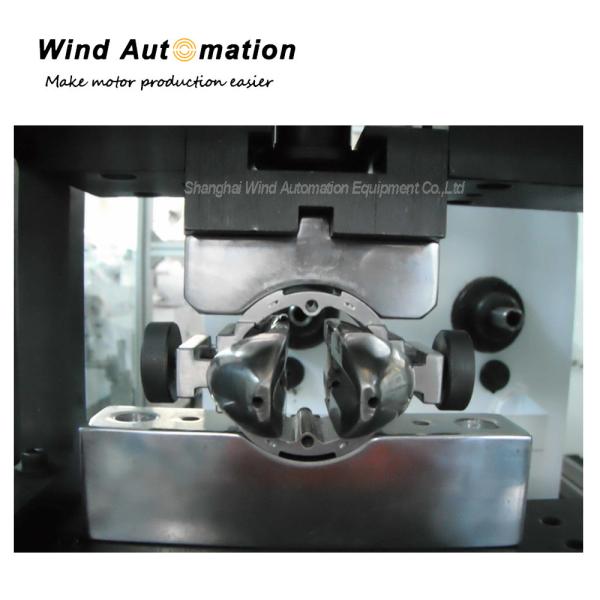

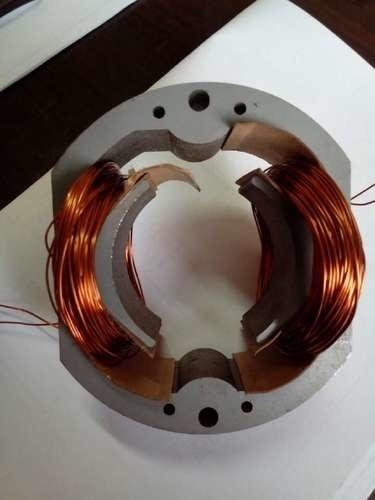

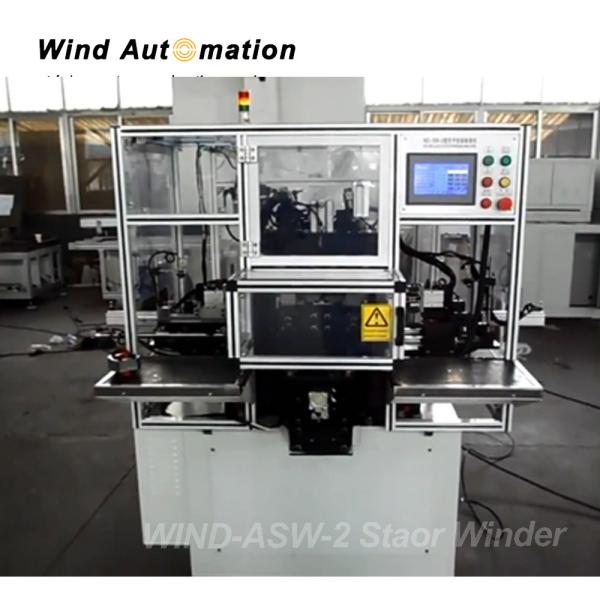

This machine is specially designed for two-poles series motor, shaded pole motor, power tool motor stator to do coil winding. It is controlled by Mitsubishi PLC. All parameter can be programmed on touch screen. Two working station do synchronous winding.

(1) Specification
Power supply AC 220V
Air pressure 0.5~0.7MPa
Total power 2KW
Winding speed 0~300r/min
Wire range 0.11~1.0mm
Stator ID Min 25mm
Stack length Max 50mm
Slot width Min 2.5mm


(2)Application
suitable for two poles stators.

(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading of the stator
Quick change-over of tooling
PLC control, fault display
