Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
Specifications
Model NO. :
WIND-SW-2
2 Pole Stator Winding Service :
Engineers Avaiable to Service Overseas
Condition :
New
Customized Service :
Provided
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Package Size :
1700.00cm * 1200.00cm * 1800.00cm
Package Gross Weight :
1100.000kg
Description
Two Poles Stator Automatic Coil Winding MachineMotor Coil Winder
Customized Two Poles Stator Automatic Coil Winding Machine for Customer Satisfaction
This stator winding machine WIND-SW-2 is designed for producing coil winding of two-poles stator, such as mixer motor, grinder motor, vacuum cleaner motor etc. With double working stations, this machine can synchronously wind two stators. Winding programs can be edited and stored in the touch screen memory.
(1) Specifications
Stator OD 50-150mm
Stack length 20-60mm
Wire diameter 0.15-1.3mm
Turn number 0-9999
Pole no. 2 poles
Spindle speed 0-450 rpm
Air supply pressure 5-7 Kg/cm2
Voltage AC380V 50/60Hz
Weight 1200Kg
Dimension 1050X2300X1750mm

(2)Application
This stator winding machine is designed for producing coil winding of two-poles stator, such as mixer motor, grinder motor, vacuum cleaner motor etc.

(3)Operation Procedure

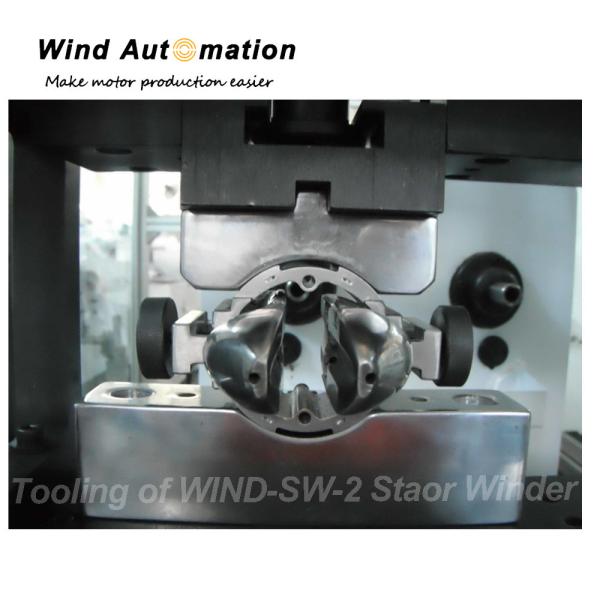

Fix winding tools on the stator core.
Then load the whole set on the winding area of machine.
Press Start button.
Machine will automatically do winding.
Unload the stator
