Stator Winding Machine for Multistrand Type Coils
Stator Winding Machine for Multistrand Type Coils
Specifications
Model NO. :
WIND-550-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

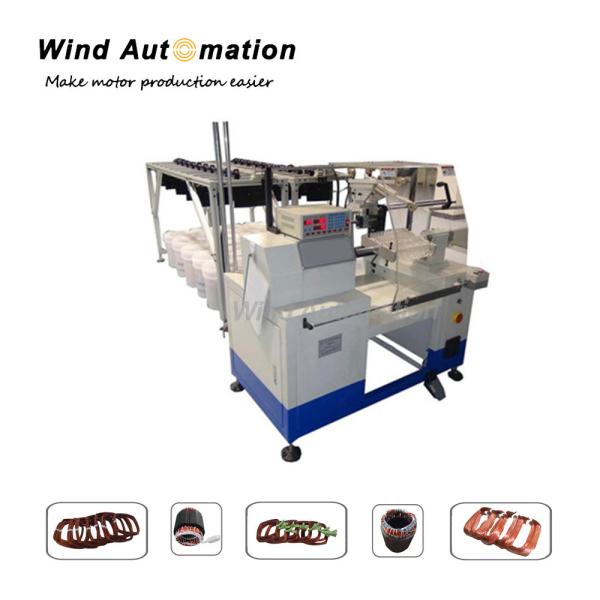

Stator Winding Machine For Multistrand Type Coils
Stator Winding Machine for Multistrand Type Coils

This stator coil winding machine is suitable for stator with multi-connected and multi layer winding.

(1) Specification
Wire diameter 0.2~1.5mm
Stator OD 210mm
Stack height 300mm
Winding head 1
Swing OD 550mm
Screw travel 400mm
Winding speed Max 500r/min
Air pressure Min 0.4Mpa
Power supply 220V 2.2KW
Weight About 400KG
Dimension 1360x1300x1280mm


(2) Application
Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor
