Multi Layer Coil Winding Machine
Multi Layer Coil Winding Machine
Specifications
Model NO. :
WIND-160-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Multi Layer Coil Winding Machine
Multi Layer Coil Winding Machine

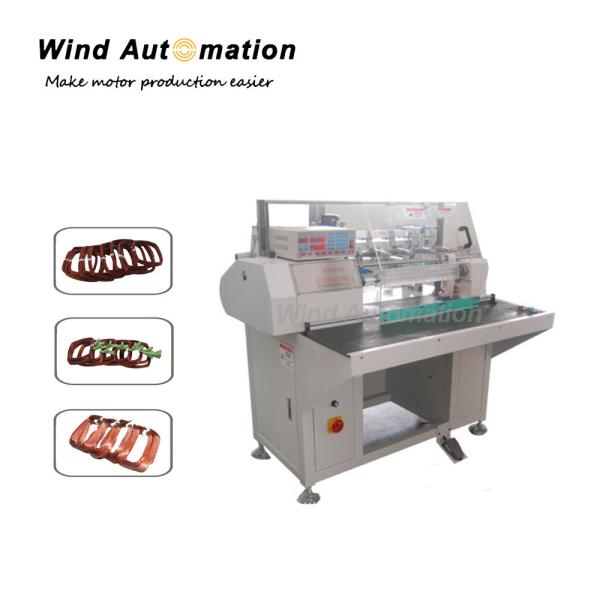

This stator coil winding machine is used wind wire into coils. It has several winding heads and it can synchronously wind 1-6 coils.

(1) Specification
Wire diameter 0.1~1.0mm
Winding head 1~6 Customized
Winding fixture OD Max 220mm
No-loading speed Max 3200r/min
Air pressure Min 0.4Mpa
Power supply 220V 0.75KW
Weight About 550KG
Dimension 1550x1250x1300mm

(2) Application
Suitable for stator with multi-connected and multi layer winding. Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 6
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor
