CNC Coil Winding Machine for Motor Stator
CNC Coil Winding Machine for Motor Stator
Specifications
Model NO. :
WIND-350-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

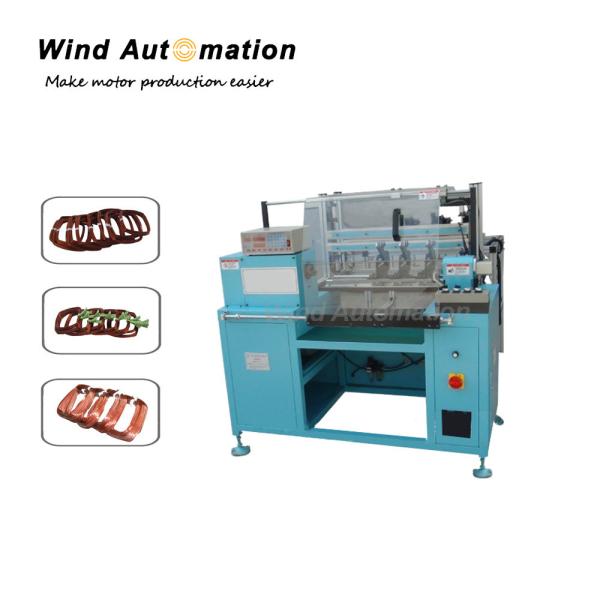

CNC Coil Winding Machine For Motor Stator
CNC Coil Winding Machine for Motor Stator

This stator coil winding machine is suitable for stator with wire diamter within 0.2 to 1.5mm. It can synchronously wind 1-3 coils.

(1) Specification
Wire diameter 0.2~1.5mm
Winding head 1~3 Customized
Wind fixture OD Max 350mm
Winding speed Max 2500r/min
Air pressure Min 0.4Mpa
Power supply 220V 1.5KW
Weight About 670KG
Dimension 1550x1250x1400mm

(2) Application
Suitable for stator with multi-connected and multi layer winding. Apply to all kinds of micro motors such as AC motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Feature
Suitable for multi-connect and multi-layer winding
Customized number of winding head within 3
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling
Memory storage of parameters for 999 stator types
Stator coil winding of most popular induction motor

CNC Coil Winding Machine for Motor StatorCNC Coil Winding Machine for Motor Stator
CNC Coil Winding Machine for Motor Stator
