Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Specifications
Model NO. :
WIND-1200-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor

This type of machine can do winding, arraying and cutting automatically. It is capable of producing various dimension coils through tooling adjustment.

(1) Application

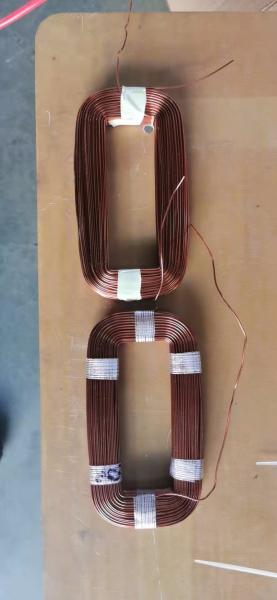

Suitable for winding chained and concentric coils. Apply to large or big stators with big power, such as deep well pump motor or other big power stators.

(2) Specification
Wire diameter 0.4~1.5mm
Winding head 1
Stack length Max 70mm
Winding fixture OD Max 1200mm
Air pressure Min 0.4Mpa
Power supply 380V 5.5KW
Weight About 1150KG
Dimension 2300x2200x2000mm

(3) Feature
Manual unloading coils after winding
No need to discharge winding tooling
CNC control
Tooling can extend and extract automatically
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling



Chained Coil Winder Stator Coil Winding Machine for Big Wire MotorChained Coil Winder Stator Coil Winding Machine for Big Wire Motor
Chained Coil Winder Stator Coil Winding Machine for Big Wire Motor
