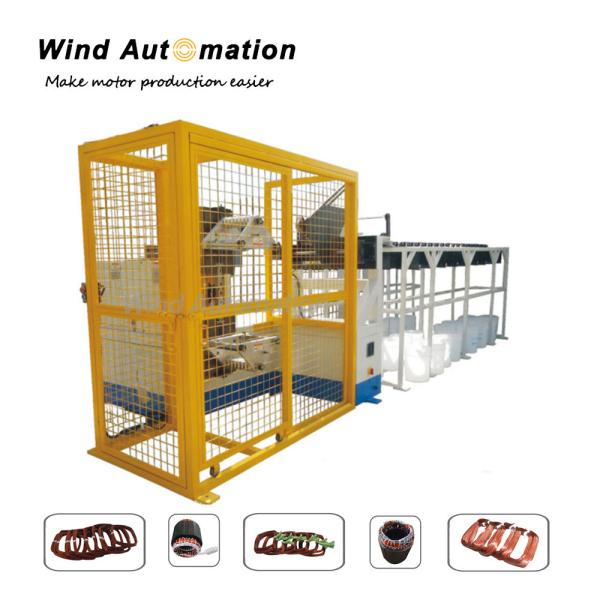

Semi-Auto Coil Winding Machine for Big Power Motor Stator
Semi-Auto Coil Winding Machine for Big Power Motor Stator
Specifications
Model NO. :
WIND-1200-CW
Automatic :
Semi-Automatic
Transport Package :
Wooden Case
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Semi-auto Coil Winding Machine for Big Power Motor Stator
Semi-Auto Coil Winding Machine for Big Power Motor Stator

This type of machine is a semi-auto type one, operator should manually unload wound coils froming winding fixture after coil winding process. There is not need to discharge the winding fixture.

(1) Specification
Wire diameter 0.4~1.5mm
Winding head 1
Stack length Max 70mm
Winding fixture OD Max 1200mm
Air pressure Min 0.4Mpa
Power supply 380V 5.5KW
Weight About 1150KG
Dimension 2300x2200x2000mm


(2) Application
Suitable for winding chained and concentric coils. Apply to large or big stators with big power, such as deep well pump motor or other big power stators.

(3) Feature
Manual unloading coils after winding
No need to discharge winding tooling
CNC control
Tooling can extend and extract automatically
Automatically stop if wire is run out
High quality level of the winding process
Quick change-over of tooling



Semi-Auto Coil Winding Machine for Big Power Motor StatorSemi-Auto Coil Winding Machine for Big Power Motor Stator
Semi-Auto Coil Winding Machine for Big Power Motor Stator
