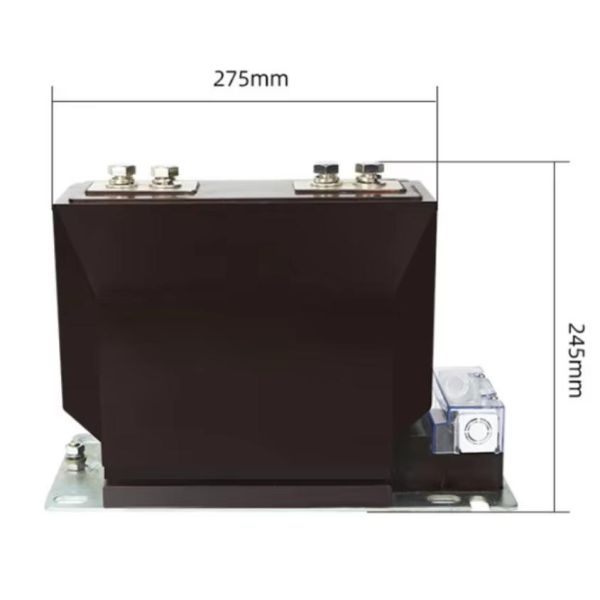

10P High Voltage Transformers 5A- 6000A Indoor Current Transformer
10P High Voltage Transformers 5A- 6000A Indoor Current Transformer
Specifications
Brand Name :
MacweyTEK
Model Number :
LZZBJ9-10
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$80-$150
Payment Terms :
T/T
Supply Ability :
20000 pcs
Delivery Time :
15 days
Packaging Details :
wooden case
Name :
Name
Material :
Epoxy resin
Accuracy Level :
0.5 - 0.2S
Voltage :
0.66KV
Rate Output :
5VA
Rated Current :
5-6000A
Description

LZZBJ9-10 High Voltage Indoor Current Transformer Switchgear CT Current Transformer


Model : LZZBJ9-10 Current Transformer
Model :LZZBJ9-10
Material:Epoxy resin
Accuracy Level 0.5 -0.2S Voltage 0.66KV
Rate Output: 5VA
Process Epoxy resin casting
product standard: GB1207/T-2014
Rated current :5-6000a
Secondary Rated current:5A/1A
Protection level:10P
Name: Current transformers(CT)
10P High Voltage Transformers 5A- 6000A Indoor Current Transformer
Model Rated primary
current (A)		 Accuracy level
combination		 Rated output (VA) Rated short-time
thermal
current(kA/s)		 Rated dynamic
stabilization
current(kA)
LZZBJ9-10(12)A1 5 0.2(S)
0.5(S)

0.2(S)/0.2(S)
0.2(S)/0.5(S)

0.2(S)/10P10
0.5(S)/10P10
0.2(S)/0.5(S)/10P10		 10

10
10/10
10/10
10/15
10/15		 0.5 1.25
10 1 2.5
15 1.5 3.75
20 2.0 5.0
30 3 7.5
40 4.0 10
50 5 12.5
75 7.5 25
100 10 25
150 15 37.5
200-600 45 112.5
800-1200 63 130
1500-3000 80 160
