Fully Enclosed High Voltage Current Transformer Casting CT Transformer LZZBW-35kV
Fully Enclosed High Voltage Current Transformer Casting CT Transformer LZZBW-35kV
Specifications
Brand Name :
MacweyTEK
Model Number :
LZZBW-35kV
Certification :
IEC
Place of Origin :
Ningbo,China
MOQ :
1 piece
Price :
$370
Payment Terms :
T/T
Supply Ability :
5000 pcs
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
High Voltage Current Transformer
Rated Voltage :
35kV
Rated Insulation Level :
40.5/95/185kV
Standards Compliance :
IEC60044-1, GB1208
Accuracy Classes :
0.2(S), 0.5, 10P
Rated Secondary Output :
10 - 20 VA
Description

LZZBW-35kV Fully Enclosed Casting High Voltage Current Transformer for Relay protection


Service conditon

·Altitude: ≤ 2500m
·Installation: Outdoor
·Rated Frequency: 50Hz or 60Hz
·Ambient Temperature: -25°C ~ +40°C
·Altitude: ≤1000m
·Pollution Level: Class II or Class III (customizable)
·Secondary Current: 5A or 1A

Construction & Features

·Epoxy Resin Casting – excellent insulation, UV resistance, and aging resistance
·Fully Enclosed Outdoor Design – moisture-proof, pollution-resistant, safe for harsh climates.
·Compact & Pillar-Type Structure – reduced footprint, easy installation with base mounting holes.
·High Mechanical Strength – withstands short-circuit thermal and dynamic currents.
·Low Maintenance – long service life without frequent inspections.

Technical Parameters

·Rated Voltage: 35kV
·Rated Insulation Level: 40.5/95/185kV
·Standards: IEC60044-1, GB1208
·Accuracy Classes: 0.2(S), 0.5, 10P
·Rated Secondary Output: 10 – 20 VA
·Short-Time Thermal Current (Ith): up to 80kA / 1s
·Rated Dynamic Current (Idyn): up to 160kA
Key Features
·Cast-resin insulation for high reliability
·Fully enclosed design, suitable for harsh environments
·Wide range of accuracy classes to meet metering & protection needs
·Strong short-time thermal & dynamic current capacity
·OEM & customization support for specific project requirements

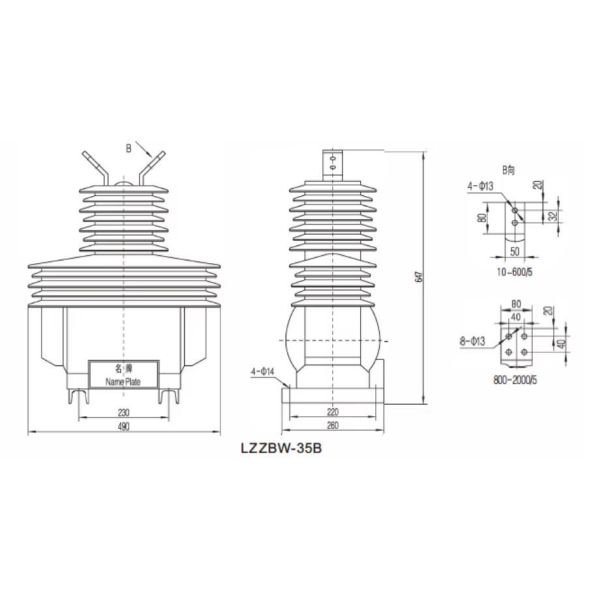

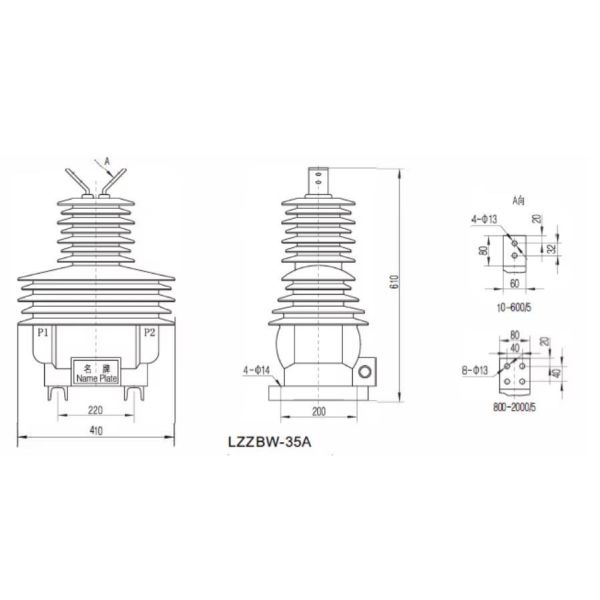

Outline & Dimensions

Fully Enclosed High Voltage Current Transformer Casting CT Transformer LZZBW-35kV

Fully Enclosed High Voltage Current Transformer Casting CT Transformer LZZBW-35kV
