3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration
3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration
Specifications
Brand Name :
MacweyTEK
Model Number :
JDZJ-3,6 JDZJ-10W
Certification :
IEC
Place of Origin :
Ningbo,China
MOQ :
1 piece
Price :
$85
Payment Terms :
T/T
Supply Ability :
5000 pieces
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
CT PT Transformer
Rated Voltage :
3kV/6kV/10kV，AC 50Hz
Structure Type :
Single-phase, Epoxy Resin Cast, Double-Winding
Core Feature :
Moisture/Pollution-Resistant, High Insulation Strength
Application Scope :
Indoor Industrial, Voltage Measurement/Metering/Protection
Compliance :
IEC60044-1, GB1208-1997 Standards
Description

JDZJ-3, JDZJ-6, JDZJ-10W Epoxy Resin Voltage Transformers High Voltage Current Transformer CT


Product descriptions
The JDZJ Series Voltage Transformers are single-phase, epoxy resin-cast insulated devices, designed for voltage measurement, energy metering, and relay protection in AC 50Hz medium-voltage power systems. ·Available in JDZJ-3(W), JDZJ-6(W), and JDZJ-10(W) models, covering 3kV, 6kV, and 10kV systems. ·Double-winding configuration ensures higher accuracy. ·Epoxy resin insulation provides excellent durability, moisture resistance, and protection against pollution. ·Ideal for indoor and industrial applications requiring precision and reliability.
Service conditon ·Altitude: ≤1000m ·Ambient temperature: -5°C ~ +40°C ·Relative humidity: ≤85% at 20°C ·Vibration resistance: Passed 0.4g test (equivalent to 9° earthquake intensity) ·Pollution resistance: Suitable for moderate pollution environments Construction & Features ·Epoxy resin cast insulation with piled ring core ·Primary & secondary windings concentrically wound on the same core ·Encapsulated coil structure ensures high insulation strength and long service life ·Secondary terminals routed through embedded nuts at the base (marked a.x) ·Primary terminals routed through high-voltage posts (marked A.X) ·Compliance: Meets IEC60044-1 and GB1208-1997 standards

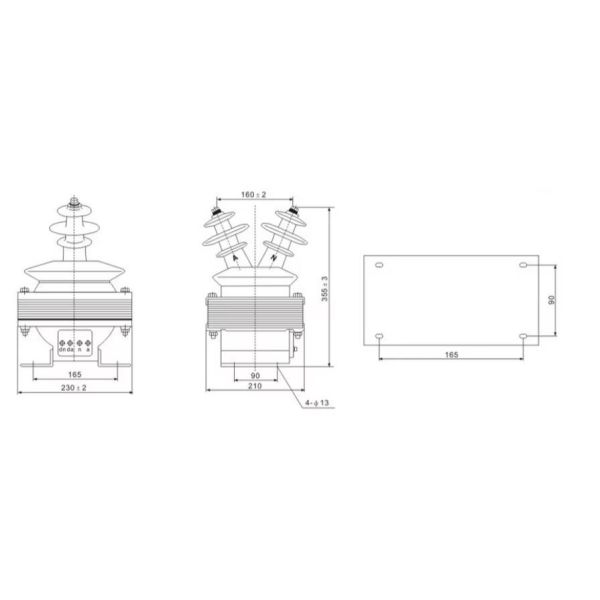

Outline & Dimensions
3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration
