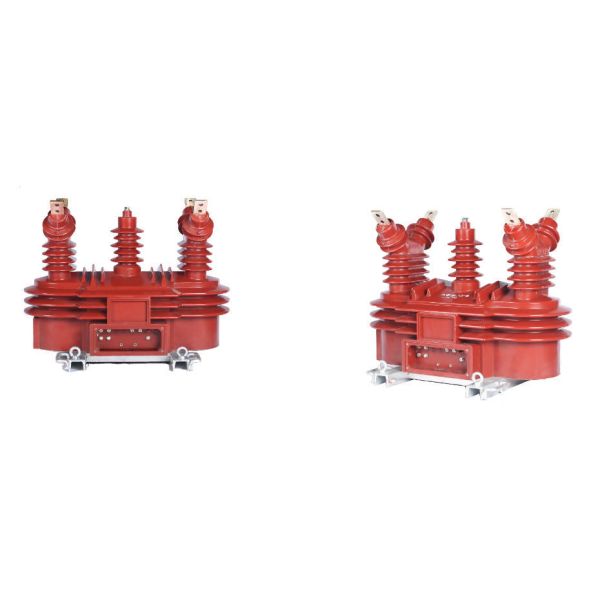

Combined Epoxy Resin Cast Current Transformers Outdoor Current Transformer JZZV1-10
Combined Epoxy Resin Cast Current Transformers Outdoor Current Transformer JZZV1-10
Specifications
Brand Name :
MacweyTEK
Model Number :
JZZV1-10
Certification :
IEC
Place of Origin :
Ningbo, China
MOQ :
1 piece
Price :
$420
Payment Terms :
T/T
Supply Ability :
5000 pcs
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
Epoxy Resin Cast Current Transformers
Rated Voltage Ratio :
10/0.1 kV
Rated Insulation Level :
12/42/75 kV
Accuracy Class & Rated Output :
0.2 Class, 2 × 20 VA
Max Output :
300 VA Current Transformer (CT) Parameters
Rated Primary Current :
20A – 600A
Description

JZZV1-10 Outdoor Epoxy Resin Casting Combined Transformer High Voltage Metering Box Combined Transformer


Product descriptions
The JZZV1-10 outdoor epoxy resin casting combined transformer is a high-performance measuring instrument designed for three-phase AC systems up to 10kV (50Hz). It integrates voltage transformers (PTs) and current transformers (CTs) into a compact unit, suitable for current, voltage, and energy metering, as well as relay protection in outdoor substations, industrial distribution networks, and rural/urban power systems. By adopting epoxy resin casting insulation and a fully sealed structure, the transformer offers superior electrical insulation, mechanical strength, and resistance to aging, UV radiation, and harsh environmental conditions. This design ensures reliable long-term operation, reduced maintenance, and enhanced safety compared with traditional oil-immersed transformers.
Service conditon
·Rated Frequency: 50Hz ± 0.5Hz
·Ambient Temperature: -25°C to +55°C
·Altitude: ≤ 2000m
Construction & Features
·Voltage Transformer (PT):
Electromagnetic type, closed iron core, with primary winding connected in parallel to the high-voltage circuit. The secondary winding provides a reduced voltage (100V or 100/√3 V) for metering and monitoring.
·Current Transformer (CT):
Electromagnetic type, closed iron core, with primary winding connected in series to the high-voltage line. The secondary provides a reduced current (5A or 1A) for metering and relay protection. ·Integrated Design: The combination of PTs and CTs in one sealed epoxy resin-cast body ensures compact structure, high reliability, and ease of installation. ·Safety Notes: PT secondary must never be short-circuited; CT secondary must never be open-circuited.
Technical Parameters
·Standards Compliance: GB/T 20840.1-2010, GB20840.4-2015, IEC 61869.4:2013
Voltage Transformer (PT) Parameters
·Rated Voltage Ratio: 10/0.1 kV
·Rated Insulation Level: 12/42/75 kV
·Accuracy Class & Rated Output: 0.2 Class, 2 × 20 VA
·Max Output: 300 VA Current Transformer (CT) Parameters
·Rated Primary Current: 20A – 600A ·Rated Insulation Level: 12/42/75 kV
·Accuracy Class & Rated Output: 0.2S/15VA, 0.5S/15VA
·Short-Time Thermal Current: up to 31.5kA/4s
·Rated Dynamic Current: up to 80kA

Combined Epoxy Resin Cast Current Transformers Outdoor Current Transformer JZZV1-10

Model
Voltage Transformer Section
Current Transformer Section
Rated Voltage Ratio (kV)
Accuracy Class
Rated Burden (VA)
Rated Current Ratio (A)
Accuracy Class
Rated Burden (VA)
JZZV1-20
20 / 0.1
0.5

0.2
5
10
15
20
20/5–1200/5
0.5S

0.2S
5
10
15
20/1–1200/1
2.5

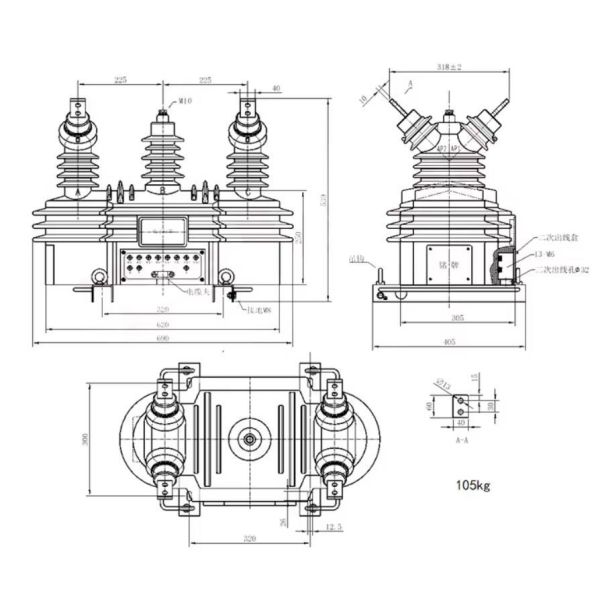

Outline & Dimensions
