Steel Tank Oil Immersed Current Transformer Indoor / Outdoor Single Phase Current Transformer
Steel Tank Oil Immersed Current Transformer Indoor / Outdoor Single Phase Current Transformer
Specifications
Brand Name :
MacweyTEK
Model Number :
LJW1-35, LJWD1-35
Certification :
IEC
Place of Origin :
Ningbo, China
MOQ :
1 piece
Price :
$2500
Payment Terms :
T/T
Supply Ability :
5000 pcs
Delivery Time :
25 days
Packaging Details :
wooden case
Name :
Oil Immersed Current Transformer
Accuracy Class :
0.2, 0.5, 1.3 (D)
Structure Type :
Steel-Tank Oil-Immersed, Single-phase Self-cooling
Stability Rating :
Thermal Stability ×75, Dynamic Stability ×187.5
Ratio Configuration :
Single/Double-ratio, Single/Double-secondary
Installation Scope :
Indoor/Outdoor, Ground/Pole-mounted
Description

LJW1-35, LJWD1-35 Steel-Tank Oil-Immersed Current Transformers, Indoor & Outdoor CT for Accurate Measurement and Protection


Construction & Features

·Single-phase, oil-immersed, self-cooling design for stable performance
·Advanced vacuum oil-filtering & oil-filling process → enhanced insulation & cooling
·Steel oil tank with air vent + waterproof & snowproof cover → reduces oil oxidation
·Diaphragm inside the tank isolates oil from external air → longer service life
·Thermal stability ×75 and dynamic stability ×187.5 compared to conventional CTs
·Multiple model options:
.Single-ratio, single secondary
.Single-ratio, double secondary
.Double-ratio, single secondary
.Double-ratio, double secondary

Technical Parameters

·Rated insulation level: 40.5 / 95 / 120 kV ·Rated secondary current: 5A ·Creepage distance: Standard ≥735mm; W2 type ≥1100mm ·Accuracy classes: 0.2, 0.5, 1.3 (D) available
Type
VoltageClass (kV)
Rated CurrentRatio (A)
COSΦ = 0.8Measurement Class 0.2Capacity (vA)
Capacity for Class 1Continuous Protection
Weight(kg)

LJW1-11
11
5~400/5
10~15
_
21

LJW1-33
33
5~600/5
30~(50)
_
64

LJWD1-11
11
5~400/5
10~15
10~15
28

LJWD1-33
33
5~600/5
30~(50)
30~(50)
83

Custom models available for specific accuracy classes, primary current ratings, and output capacities.

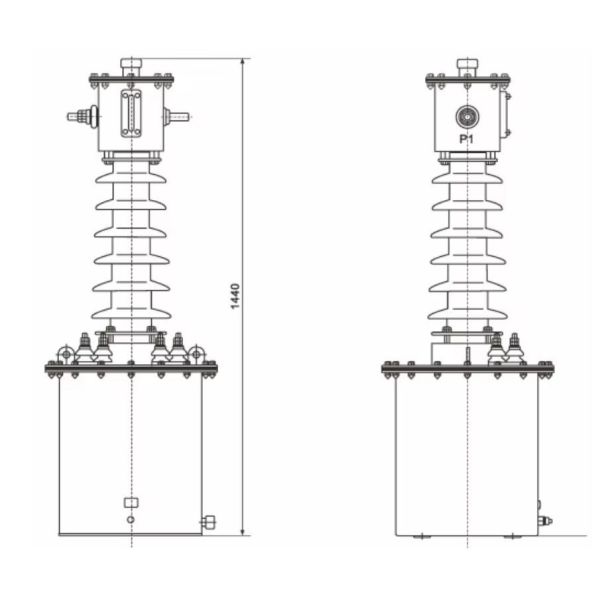

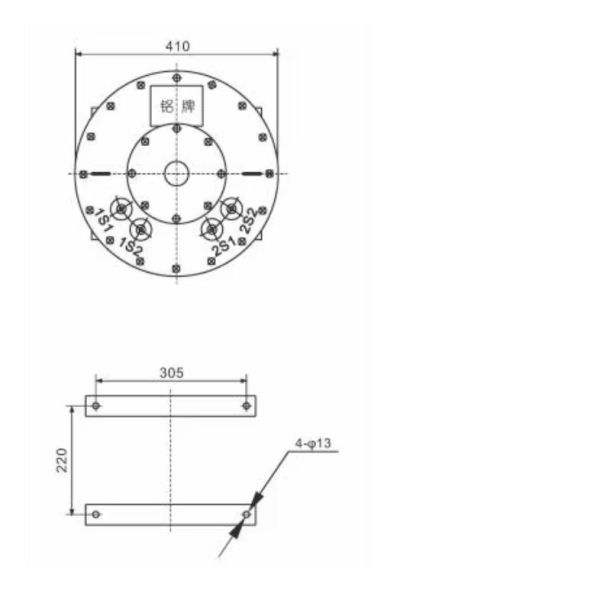

Outline & Dimensions
·Compact steel-tank design with easy mounting
·Suitable for both ground-mounted and pole-mounted installations
·Detailed outline drawings & wiring diagrams provided on request
