Outdoor CT PT Transformer 35kV Epoxy Resin Current Transformer For High Voltage Power Systems
Outdoor CT PT Transformer 35kV Epoxy Resin Current Transformer For High Voltage Power Systems
Specifications
Brand Name :
MacweyTEK
Model Number :
LZZW-35
Certification :
IEC
Place of Origin :
Ningbo, China
MOQ :
1 piece
Price :
$1200
Payment Terms :
T/T
Supply Ability :
5000 pcs
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
CT PT Transformer
Rated Voltage :
35kV AC (50Hz/60Hz)
Insulation Structure :
Epoxy Resin Cast, Fully Enclosed, Moisture/Pollution-Resistant
Accuracy & Output :
0.2/0.2s/0.5/0.5s/10p10/10p15, 10/18VA Rated Output
Installation Environment :
Outdoor, Pollution Class IV, -25~+40℃ (Optional -40℃)
Specifications :
Complies with IEC185/GB1208-2006, Up to 500A Primary Current (Customizable)
Description

35kV High-Voltage LZZW-35 35kV Current Transformer | Outdoor Epoxy Resin Cast Type | OEM Factory


Product descriptions
The LZZW-35 Current Transformer is a fully enclosed, resin-cast post-type CT designed for 35kV outdoor power systems at 50Hz / 60Hz. ·Suitable for energy metering, current measurement, and relay protection. ·Built with epoxy resin insulation for superior electrical performance and durability. ·Designed according to IEC185 and GB1208-2006 standards, ensuring accuracy and reliability in high-voltage applications. Widely applied in substations, industrial power distribution, and medium-voltage grid systems.

Service conditon

·Installation: Outdoor, free from severe pollution & corrosive environments
·Ambient temperature: -25°C ~ +40°C (optional: -40°C on request)
·Altitude: ≤1000m
·Pollution class: IV (designed for polluted outdoor environments)
·Atmospheric conditions: No explosive gases, heavy steam, or dust that affect insulation
·Vibration: Stable operation, free from strong vibration & shock

Construction & Features

·Resin-cast insulation: Fully enclosed, moisture-proof, and pollution-resistant.
·Pillar-type design: Compact, durable, and easy to install.
Primary / Secondary configuration:
Primary current: Up to 500A (custom options available)
·Secondary: 5A standard output
·High insulation strength: Rated insulation level 40.5/95/185 kV.
·Standards: Complies with IEC185 / GB1208-2006.

Technical Parameters
Current (A)
Combination
Rated Output (VA)
Current (ka/s)
Current (kA)
0.2s
0.2
0.5
10p10
10p15
5-100
0.2
10
10
15
15
10
13.5
34
150
0.2s





18
45
200
0.5





27
67.5
300
0.5s





30
75
400
10p10





36
90
500
10p15





40
1001In
600






N/A
N/A
750-1000






N/A
N/A
Partial discharge: Meets GB1208-2006 / IEC185 standards Secondary current: 5A standard

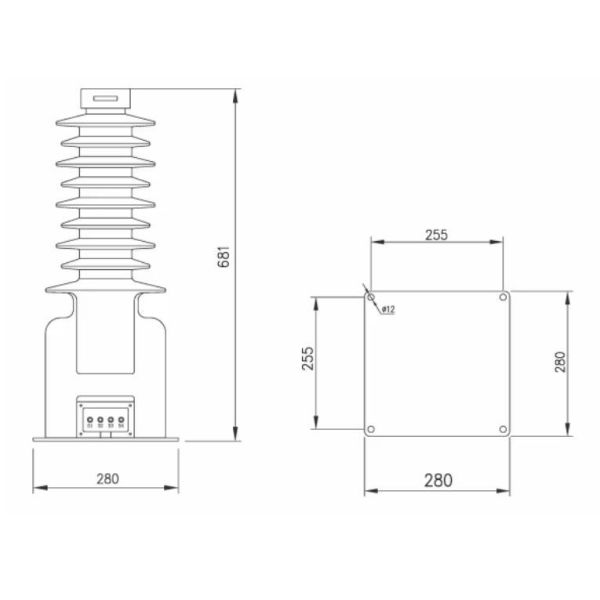

Outline & Dimensions

·Compact design for easy outdoor installation.
·Standard mounting dimensions available.
·Outline drawings & installation guides provided on request.
