Industrial Indoor Voltage Transformer Single Phase / Three Phase CT Transformer With Max Output 500VA
Industrial Indoor Voltage Transformer Single Phase / Three Phase CT Transformer With Max Output 500VA
Specifications
Brand Name :
MacweyTEK
Model Number :
MSZV12-10R
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$290
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
Indoor Voltage Transformer
Rated Voltage :
3/6/10kV
Insulation Level :
12/42/75kV
Max Output :
500VA
Accuracy Class :
0.2/0.5
Application :
Voltage Measurement, Circuit Breaker Power
Description

MSZV12-10R High Quality 3-40.5KV Indoor Combined Voltage Transformer Single-Phase Three-Phase Potential Transformer


Applicable working conditions

1. The height above sea level is not above 1000m. (Please indicate height above sea level if it is used in high land area).2. Max.
change of environment temperature doesn't exceed 5℃ to 40℃. (If there is any requirement. Please indicate in the order).
3. Ordinary products can be used in the area with relative humidity not above 85%.
4.There is no gas, steam, chemical sedimentation, dust or dirt or other explosive and corrosive medium that seriously affect
transformer at installation site. There is no serious vibration or bump. Either.

Technical data of voltage transformer for measuring
Type Rated voltage ratio(kV) Accuracy class and rated output (VA) Max output (VA) Rated insulation level (kV)
0.2 0.5
MSZV12-10R 10000/100 20 60 500 12/42/75
MSZV12-10R 10000/100 20 60 12/42/75
MSZV12-6R 6000/100 7.2/32/60

Technical data of voltage transformer for circuit breaker operating power
Type Rated voltage ratio(kV) Accuracy class and rated output (VA) Short time Max output power (VA) Rated insulation level (kV)
MSZV12-10R 10/0.1/0.22 0.2 30 600 12/42/75
MSZV12-10R 10/0.1/0.1 0.2 20 2*400 12/42/75
MSZV12-6R 6/0.1/0.1 7.2/32/60
MSZV12-3R 3/0.1/0.1 0.2 20 3.6/25/40
MSZV12-10R 10/0.1 0.2 0.2 500 12/24/75
MSZV12-6R 6/0.1 7.2/32/60

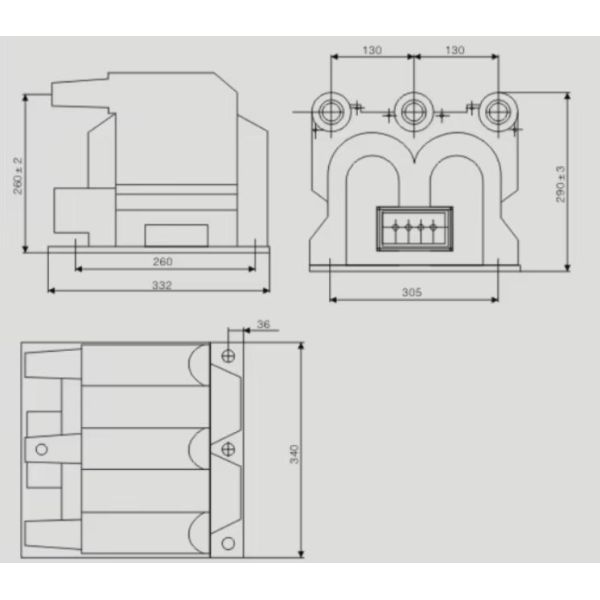

Overall Dimensions
Industrial Indoor Voltage Transformer Single Phase / Three Phase CT Transformer With Max Output 500VA
