15kV 24kV CT PT Transformer Industrial Potential Transformer MDZX(F)9-35
15kV 24kV CT PT Transformer Industrial Potential Transformer MDZX(F)9-35
Specifications
Brand Name :
MacweyTEK
Model Number :
MDZX(F)9-35
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$190
Payment Terms :
T/T
Supply Ability :
10000 piece
Delivery Time :
20 days
Packaging Details :
wooden pallet
Name :
CT PT Transformer
Rated Voltage :
15kV/24kV/35kV
Rated Voltage Ratio :
35000/√3/100
Accuracy Class Combination :
0.2/6P、0.5/6P、0.2/0.2/6P
Max Output :
600VA
Rated Insulation Level :
40.5/95/200kV
Description


Macwey MDZX(F)9-35 15kV 24kV Potential Transformer PT VT Voltage Transformer


Applicable working conditions

1. The height above sea level is not above 1000m. (Please indicate height above sea level if it is used in high land area).2. Max.
change of environment temperature doesn't exceed 5℃ to 40℃. (If there is any requirement. Please indicate in the order).
3. Ordinary products can be used in the area with relative humidity not above 85%.
4.There is no gas, steam, chemical sedimentation, dust or dirt or other explosive and corrosive medium that seriously affect
transformer at installation site. There is no serious vibration or bump. Either.

Precautions

1. While the primary current goes through current transformer, the open circuit of secondary winding is not allows, other wise
high voltage will produce and affect the performance of product.2. The short circuit of secondary winding of voltage transformer
is not allowed. Otherwise the transformer will be burned.
3. The repeated power frequency withstand voltage test of primary winding shall be conducted under 80% of stipulated test voltage
value.

Technical Data
Type Rated voltage ratio(V) Accuracy class combination Rated output(VA) Max output (VA) Rated insulation level (kV)
MDZX9-35 35000/√3/100 /√/100/3 0.2/6P 30/100 600 40.5/95/200
0.5/6P 50/100
MDZXF9-35 35000/√3/100 /√3/100/√3/100/3 0.2/0.2/6P 20/20/100 20*300
0.2/0.5/6P 20/30/100
0.5/0.5/6P 30/30/100

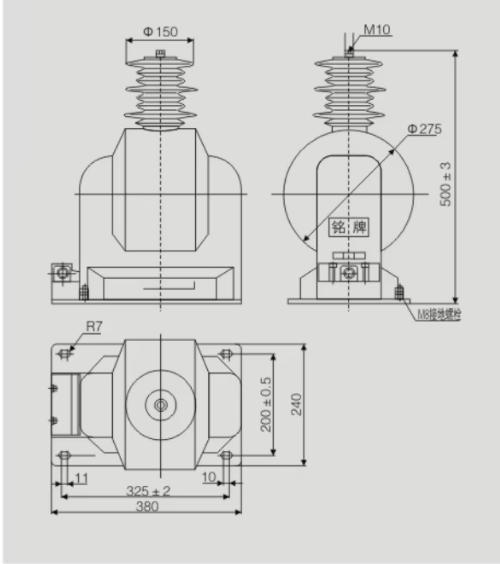

Overall Dimensions
