Three Phase CT PT Transformer Combined Dry Type Current Transformer 35kV
Three Phase CT PT Transformer Combined Dry Type Current Transformer 35kV
Specifications
Brand Name :
MacweyTEK
Model Number :
MKSZY-35W
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$80-380
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
20 days
Packaging Details :
wooden pallet
Name :
CT PT Transformer
Rated Voltage :
35 kV
Accuracy Rating :
0.2 and 0.2 S
Rated Voltage Ratio :
3500/√3/100/√3 V
Rated Primary Current :
5~800 A
Rated Secondary Current :
5 A or 1 A
Description

MKSZY-35W 20000/100V 200/5A 10-30VA Outdoor Three-phase Dry Type Combined Instrument Transformer


Technical Data
rated voltage 35 kv
accurate rating:0.2 and 0.2 S
rated voltage ratio:3500/3/100/V3

Rated primary current:5~800 a
The rated secondary current: 5 a or 1 a
Rated capacity: current0.2s-class 15VA; 30VA voltage part 0.2 on the Richter scaleA.

Rated short-time currentratio (lth):75 i1n/s
rated dynamic thermal stability: 2.5 lth


Rated primary current (A) Accuracy class combination Rated output(VA) 0.2S Short time thermal current (kA/S) Rated dynamic currOent (kA)
5-100 0.2S 0.2S/0.2S 15 15/15 75/1n 250/1n
150
200
300
400
500
600-800

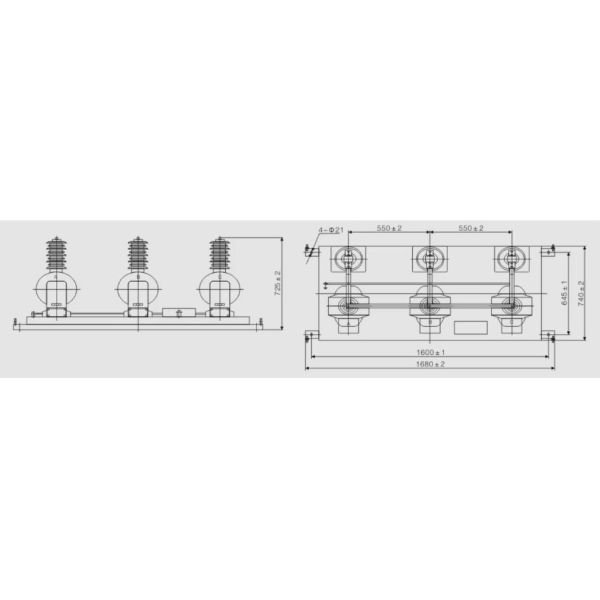

Overall Dimensions

Three Phase CT PT Transformer Combined Dry Type Current Transformer 35kV
