Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor
Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor
Specifications
Brand Name :
MacweyTEK
Model Number :
MZZBJ9-35D
Certification :
IEC
Place of Origin :
China
MOQ :
1 piece
Price :
$110
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
20 days
Packaging Details :
wooden case
Name :
CT PT Transformer
Rated Voltage :
10/33kV
Rated Current Ratio :
5-1000A/5A
Accuracy Class :
0.2S/0.5S/0.2/0.5/5P10/5P15/5P20
Installation Scope :
Indoor & Outdoor
Rated Secondary Output :
3-50kVA
Description

MZZBJ9-35D Single&three Phase Power Transformer 10/33kv 5-1000A/5A 3kva-50kva Indoor&outdoor Custom Current Transformer Price


The transformer is one of import electrical appliances in electric system. It's similar to power transformer and also used to transformer voltage or current in the circuit. However, transforming voltage and current by power transformer aims at transferring electric energy while transforming voltage and current by transformer aims at measuring and monitoring voltage or current in the circuit. Generally, power transformer owns large capacity as well as large change difference of voltage or current. While transformer owns small capacity as well as smaller change difference of voltage or current. In measuring circuit. The transformer that transforms current and supplies electricity for current meter and relay is called current transformer. The transformer that transforms voltage and supplies electricity for voltage meter and relay is called voltage transformer.


Model definition
The model composition of current transformer and voltage transformer is divided into two parts. The first part is product model letter and design number and the letter part is rated voltage grade (kV) and specific using environment code. (the definition of model letter is shown as know).
Technical data
Type Rated primary current Accuracy class combination Rated secondary output(VA ) 1s thermal current (kA) Rated dynamic current (kA)
0.2S 0.5S 0.2 0.5 5P10 5P15 5P20
MZZBJ9-35D 10 0.2 ( S)/0.2 ( S) 10 10 15 30 50 30 20 1.44 3.6
15 0.2 ( S)/0.5 ( S) 2.1/2 5.25 7.1 375lin/2
25,30 0.2 ( S)/5P 2.82/2
30-100 0.5 ( S)/5P 150lin/2
150 5P/5P 31.5 31.5/2 31.5/3 31.5/4 40/4 80 80 80 80 100
200,250 0.2 ( S)/0.2 ( S)/5P
300-500 0.2 ( S)/0.5 ( S)/5P
600-800 0.2 ( S)/5P/5P 15 15 30/40 50 50 40/50 30
1000-3150 0.5 ( S)/5P/5P

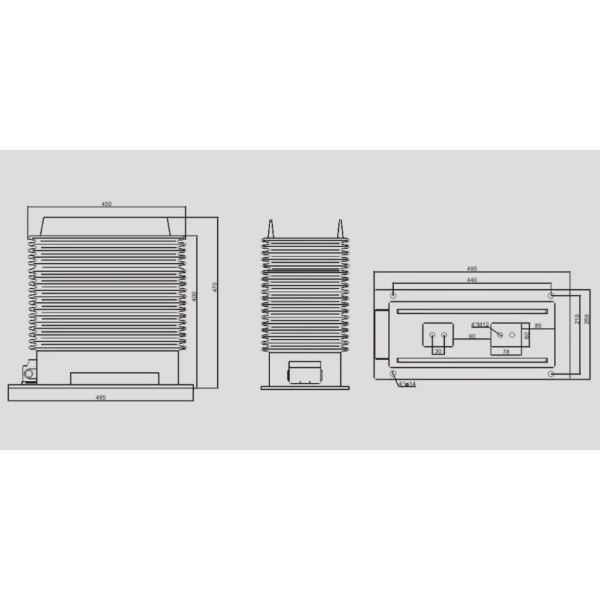

Overall Dimensions
Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor
