Specifications
Model Number :
BF216-11
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1520×1520×3000mm(W*D*H)
Rated Temperature :
850ºC
Maximum Temperature :
1050°c
Transport Package :
Wooden Packaging
Specification :
1520× 1520× 3000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

Uniform Temperature Vertical Style Chitherm BF216-11 Type Bell Furnace for Optimal Heating Performance

1,Equipment Name and Model:
 BF216-11 Bell Furnace



2,Application Fields:
It is mainly used for the debinding and sintering processes of Low Temperature Co-fired Ceramics (LTCC), and can also be widely applied to the sintering processes of other related electronic products.

3,Technical Specifications and Basic Configuration:
1,Rated Temperature: 850°C;
2,Maximum Temperature: 1050°C;
3,Furnace Chamber Size: 600mm×600mm×600mm (D×W×H)
4,Effective Size: 400mm×400mm×400mm (D×W×H);
5,Heating Element: FEC Ceramic Fiber Heating Plate;
6,Maximum Heating Power: 40kW;
7,Insulation Power of the Empty Furnace: ≤25kW;
8,Maximum Gas Preheating Power: 4×3kW;
9,Thermocouple Type: K Graduation;
10, Number of Temperature Zones: 4;
11,Number of Temperature Control Points: 4;
12,Number of Preheating Points: 4;
13,Temperature Monitoring Ports: 10 Channels;
14,Detection Port: A curved thermocouple hole is reserved at the bottom of the equipment;
15,Temperature Control Precision: ≤±1°C;
16,Temperature Control Method: Imported Japanese temperature control module;
17,Number of Heating-up Stages: 20 steps;
18,Temperature Recording: The upper computer conducts real-time sampling and recording of the furnace chamber temperature and gas heating temperature;
19,Heating-up Rate: 8°C/min;
20,Furnace Temperature Uniformity: Better than ±3°C within the effective area (at a constant temperature of 850°C for 1 hour);
21,Power-off Protection Function: Equipped with a UPS power supply system, which can ensure the lifting function of the furnace chamber after a power outage, and prevent the computer from sudden power failure to avoid the loss of important parameters;
22,Alarm System: When situations such as over-temperature of the furnace chamber, over-temperature of gas preheating, low air pressure, motor overload, and over-travel occur, the buzzer and alarm light will be triggered for audible and visual alarms;
23,Surface Temperature Rise: ≤35°C;
24,Operating Noise: ≤75dB
25,Maximum Lifting Stroke: 600mm;
26,Load-bearing Capacity: ≤150Kg;
27,Reference Dimensions of the Appearance: 1520×1520×3000mm (D×W×H);
28,Equipment Weight: 1500kg;
29,Appearance Color: Light Gray.

4, Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Main Furnace Unit 1 UNIT
Inspection Certificate of Conformity Certificates of major outsourced components 1 SET
Technical Documents Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. 1 SET
Key Components Silicon Molybdenum Rod 1 SET
Touch Screen 1 SET
Temperature Controller 1 SET
Spare Parts 1 UNIT
5,Overall Technical Description

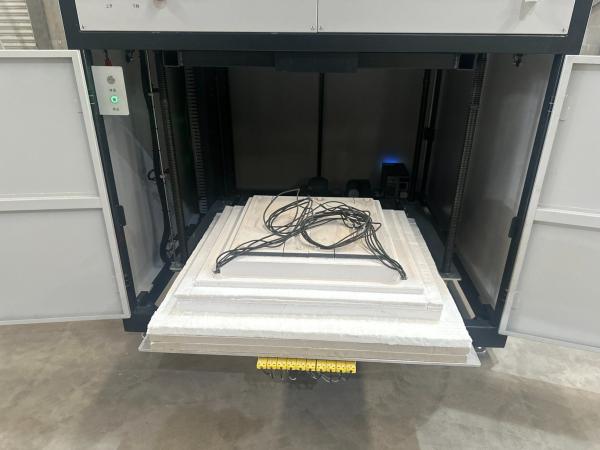

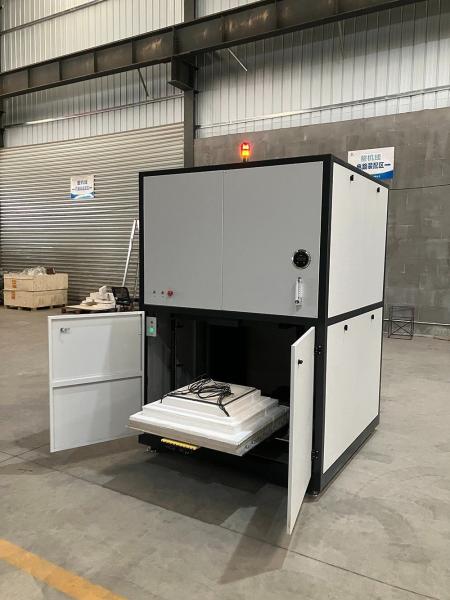

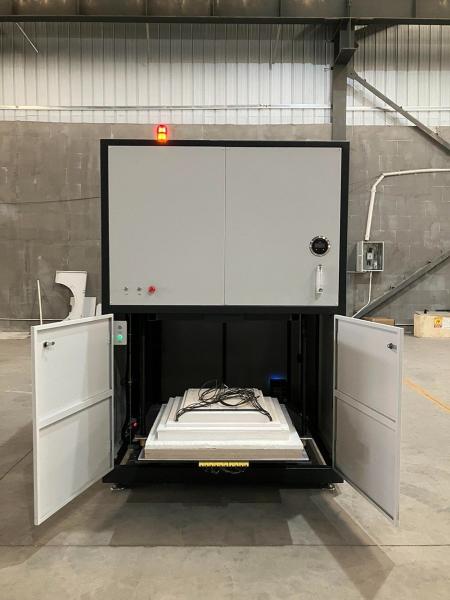

The equipment is mainly composed of an outer frame, a square furnace chamber, a bottom support, a lifting system and a control system.
