Specifications
Model Number :
Bf125-17
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
550*500*550mm(D*W*H)
Transport Package :
Wooden Packaging
Specification :
1740*2780*2505mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

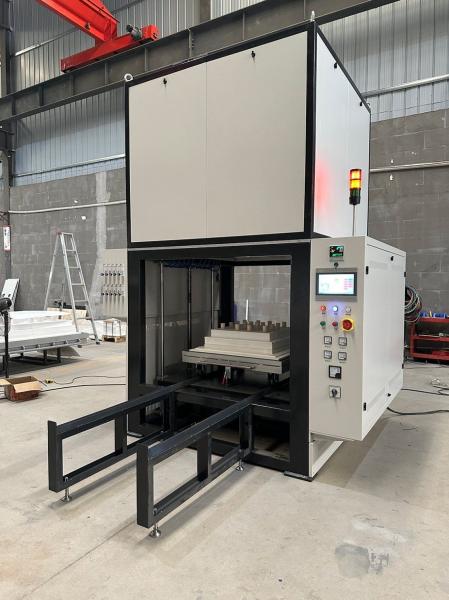

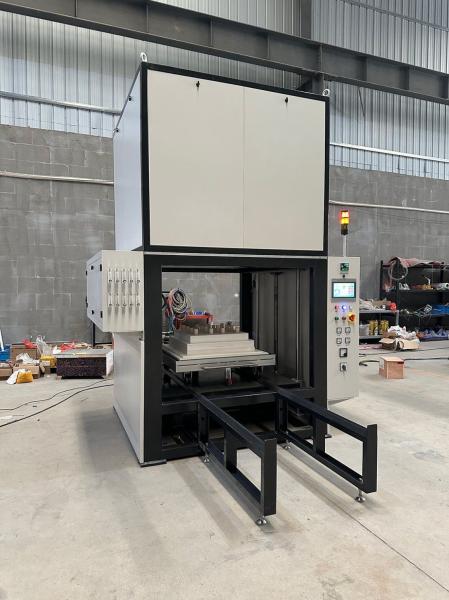

High Temp. Bell Furnace 1740*2780*2505mm W*H*D for Ceramic Sintering within Chitherm Bf125-17
1. Application:
This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:
  1. Rated Temp.:1600ºC
  2. Max Temp.:1700ºC

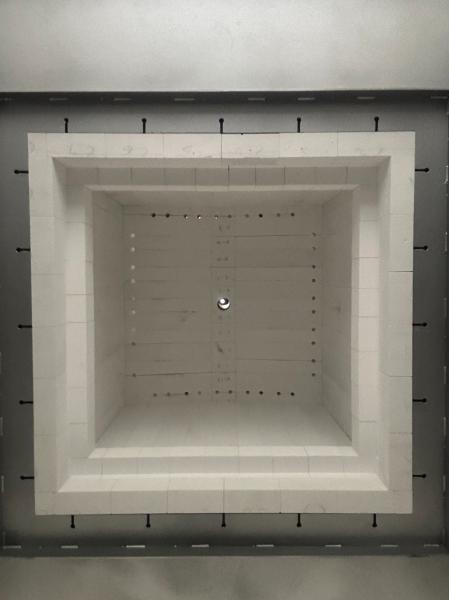

  3. Effective Dimensions:550mm*500mm*550mm(D*W*H)
  4. Heating Method: U-shaped silicon molybdenum heater
  5. Thermcouple:R-Type
  6. Temperature Control: 1 Point
  7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)

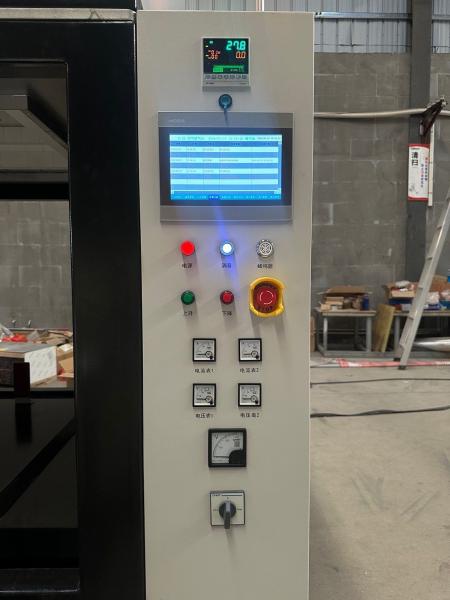

  8. Temp. Control Mode:control module imported from Japan with PID
  9. Heat-up Rate :400 ~ 1000≤5ºC/min,1000 ~ 1500≤2ºC/min
  10. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC)
  11. Maximum Lifting Trip:800mm
  12. Lift System: the equipment lifting operation system adopts three-point control, which can be stopped at any time, with stable and reliable operation
  13. Loading Weight ≤ 1000kg (with firing furniture and products)
  14. Exhaust System : 1 exhaust chimney is set at the top for exhaust gas emission
  15. Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
  16. Maximum Heating Power:50kW
  17. Insulation Power:≤25kW
  18. External Dimensions: 1740*2780*2505mm(D*W*H) (without control cabinet)
  19. Appearance Color: Light gray.
Magnetic Materials Industrial Sintering Furnace For Ceramic Sintering


2. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Electrical purification furnace 1 SET
Key Components Silicon molybdenum rods U-shaped Model MK1800 (Diameter Range: 6-12mm) 1 SET
Touchscreen 1 SET
Thermocouple R-Type 1 SET
Temperature Control Module 1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC


3. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;

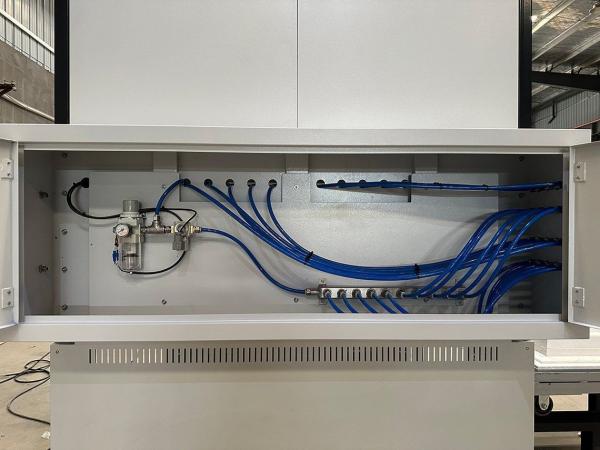

  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site:3800mm*2650mm*3500mm(D*W*H), with an installation area greater than 12m2.
