Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Specifications
Delivery Time :
Customized
Transport Package :
Wooden Package
HS Code :
8514101000
Model Number :
HRF930‑05
Type :
Electric Holding Furnace
Payment Terms :
Customized
Chamber Dimensions :
900*900*1150mm
Place of Origin :
China
Usage :
Ceramic Sintering
Price :
Negotiable
Packaging Details :
Customized
Atmosphere :
Air
Trademark :
Chitherm
Supply Ability :
Customized
Applications :
processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products
Production Capacity :
50 Sets/Year
Brand Name :
Chitherm
Range of Applications :
Industrial
MOQ :
1
Fuel :
Electric
Origin :
China
Description
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Product Specifications
Rated Temperature 300℃
Maximum Temperature 450℃
Chamber Dimension 900×900×1150 mm (W×D×H)
Chamber Material SUS304
Material Loading Method 4‑layer non‑perforated stainless‑steel trays
Heating Element Stainless‑steel sheathed heaters
Max. Heating Power 30 kW
Holding Power (Empty Chamber) ≤20 kW
Temperature Control Stability ±1℃
Temperature Uniformity Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points)
Temperature range of the 5 points Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min)
HS Code 8514101000
Production Capacity 50 Sets/Year
Product Description

50 Sets/Year Chitherm HRF930‑05 Hot‑Air Circulating Chamber Furnace for Air Atmosphere Manufacturing Facility

Application
HRF930‑05 Hot‑Air Circulating Chamber Furnace is Widely used for processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products.


Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing

Technical Specifications
Rated Temperature: 300℃
Maximum Temperature: 450℃
Chamber Dimension: 900×900×1150 mm (W×D×H)
Chamber Material: SUS304
Material Loading Method: 4‑layer non‑perforated stainless‑steel trays
Heating Element: Stainless‑steel sheathed heaters
Max. Heating Power: 30 kW
Holding Power (Empty Chamber): ≤20 kW
Temperature Control Stability: ±1℃
Temperature Uniformity: Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points). Temperature range of the 5 points: Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min).
Thermocouple Type: K‑type
Heating Rate: ≤5℃/min
Working Atmosphere: Air (natural air intake or compressed air inlet via flow meter)

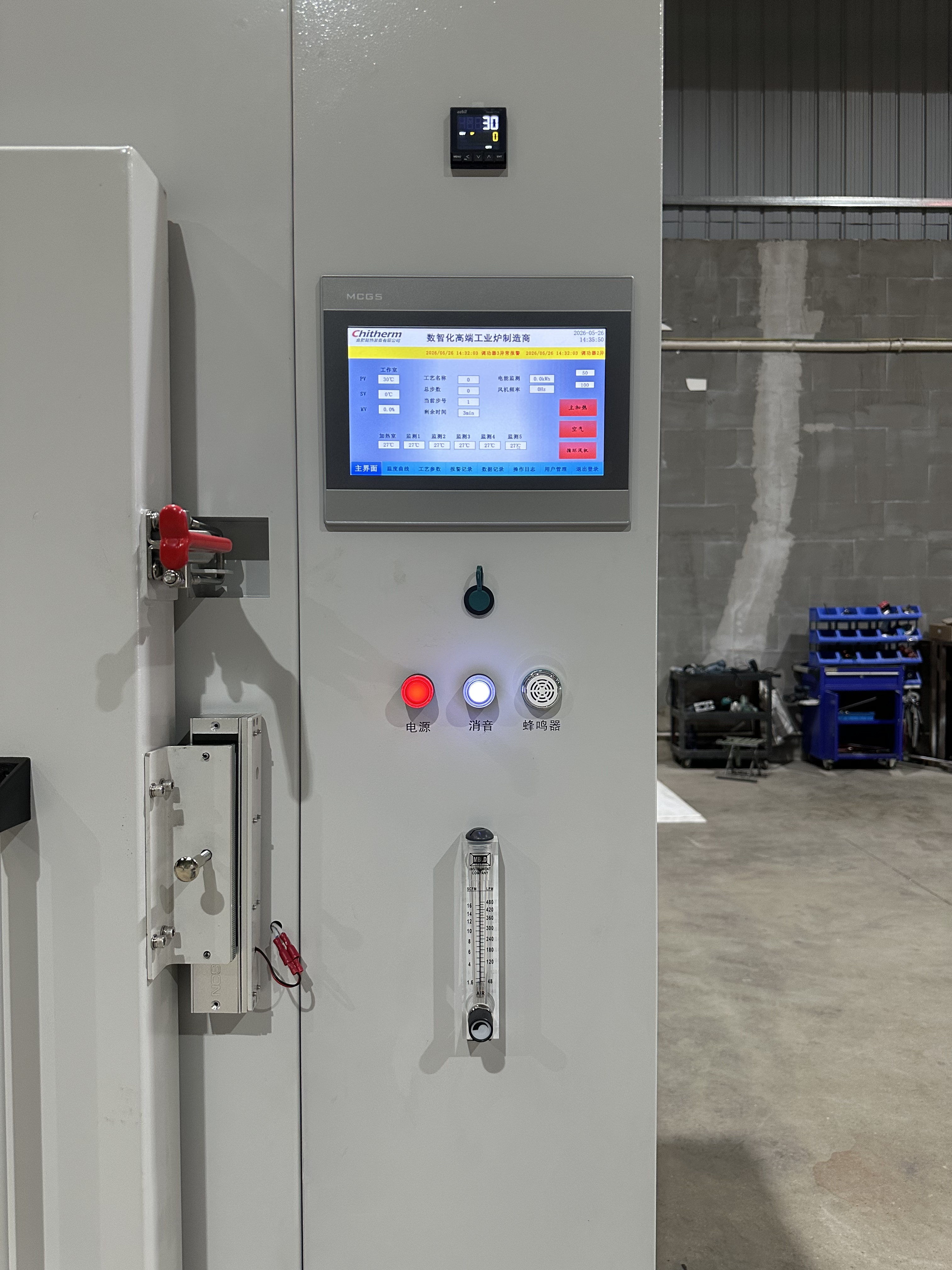

Temperature Controller: Imported intelligent temperature controller with PID auto‑tuning function
Program Setting: 20 temperature control programs storable, up to 20 segments per program
Control Points: 1 point
Measurement Points: 6 points
Company Profile
Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc. We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & Curing
Model HRF930‑05 Hot‑Air Circulating Chamber Furnace, Industrial Furnace for Heat‑Treatment Debinding & CuringFAQ
1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
