HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
Specifications
Transport Package :
Wooden Package
HS Code :
8514101000
Delivery Time :
Customized
Type :
Electric Holding Furnace
Model Number :
HRF930‑05
Usage :
Ceramic Sintering
Place of Origin :
China
Atmosphere :
Air
Trademark :
Chitherm
Price :
Negotiable
Packaging Details :
Customized
Applications :
processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products
Production Capacity :
50 Sets/Year
Supply Ability :
Customized
Chamber Dimensions :
900*900*1150mm
Payment Terms :
Customized
Range of Applications :
Industrial
Brand Name :
Chitherm
Fuel :
Electric
MOQ :
1
Origin :
China
Description
HRF930-05 hot air box furnace, high uniformity hot air circulating furnace, electronic ceramic powder curing binder removal furnace
In the production of electronic ceramics, functional powders and magnetic materials, processes including curing, binder removal, aging and annealing impose stringent requirements on temperature field uniformity and airflow stability inside the furnace. Conventional static box furnaces tend to suffer from local overheating, green body cracking and poor batch consistency.

The HRF930-05 Hot Air Box Furnace is a precision hot air circulating electric box furnace developed by Hefei Zhire Equipment. It is designed specifically for curing and binder removal of electronic ceramic powder, aging and annealing of metal parts, as well as drying and heat treatment of powder materials, and can be customized non-standard to meet process requirements.
The HRF930-05 Hot Air Box Furnace is composed of four major modules: furnace body structure, hot air circulation system, temperature control system and tail gas treatment unit. It features a clear layout for easy operation, maintenance and inspection.
Product Specifications
Rated Temperature 300℃
Maximum Temperature 450℃
Chamber Dimension 900×900×1150 mm (W×D×H)
Chamber Material SUS304
Material Loading Method 4‑layer non‑perforated stainless‑steel trays
Heating Element Stainless‑steel sheathed heaters
Max. Heating Power 30 kW
Holding Power (Empty Chamber) ≤20 kW
Temperature Control Stability ±1℃
Temperature Uniformity Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points)
Temperature range of the 5 points Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min)
HS Code 8514101000
Production Capacity 50 Sets/Year
Product Description

50 Sets/Year Chitherm HRF930‑05 Hot‑Air Circulating Chamber Furnace for Air Atmosphere Manufacturing Facility

Application
HRF930‑05 Hot‑Air Circulating Chamber Furnace is Widely used for processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products.

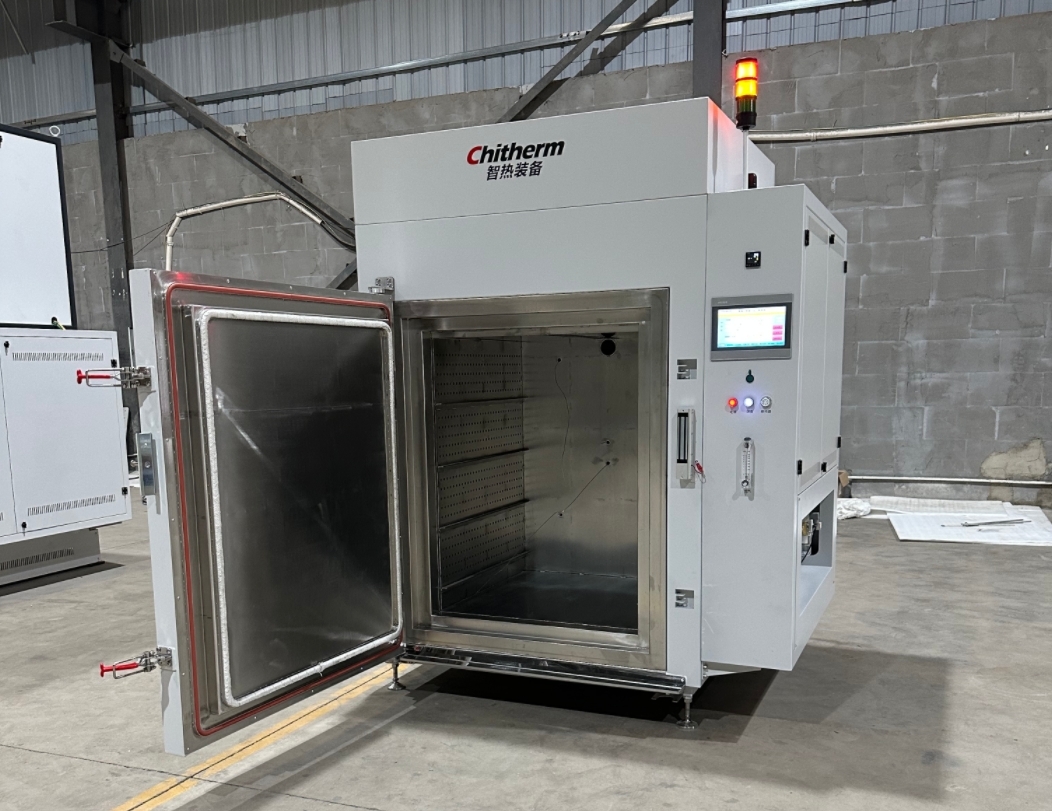

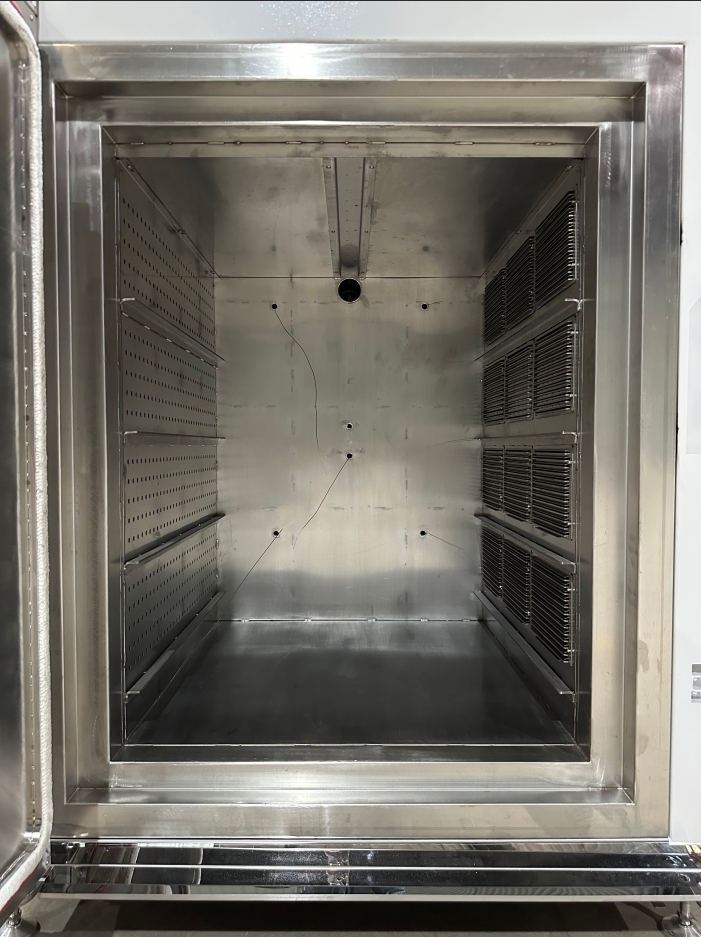

HRF930‑05 Hot‑Air Circulating Chamber Furnace body structure consists of the heating chamber, hot air system and control system. The heating chamber is hermetically welded from high-quality SUS304 stainless steel plates. Ceramic fiber insulation material is filled between the heating chamber and the furnace frame. The whole furnace is supported by four anchor feet with adjustable height ranging from 80 mm to 200 mm.
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
Technical Specifications
Rated Temperature: 300℃
Maximum Temperature: 450℃
Chamber Dimension: 900×900×1150 mm (W×D×H)
Chamber Material: SUS304
Material Loading Method: 4‑layer non‑perforated stainless‑steel trays
Heating Element: Stainless‑steel sheathed heaters
Max. Heating Power: 30 kW
Holding Power (Empty Chamber): ≤20 kW
Temperature Control Stability: ±1℃
Temperature Uniformity: Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points). Temperature range of the 5 points: Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min).
Thermocouple Type: K‑type
Heating Rate: ≤5℃/min
Working Atmosphere: Air (natural air intake or compressed air inlet via flow meter)

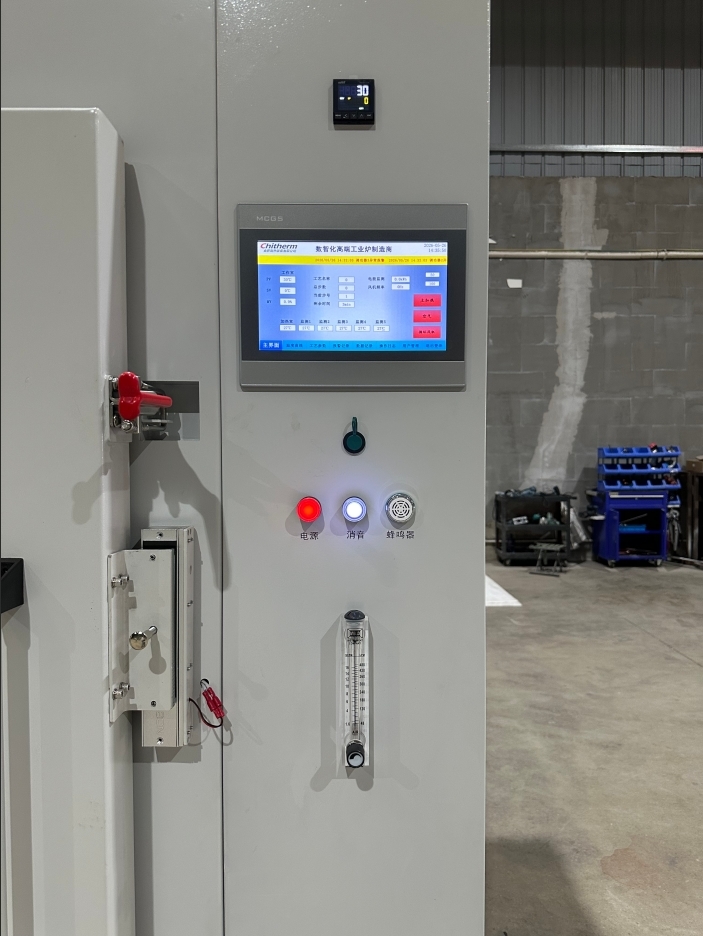

Temperature Controller: Imported intelligent temperature controller with PID auto‑tuning function
Program Setting: 20 temperature control programs storable, up to 20 segments per program
Control Points: 1 point
Measurement Points: 6 points
Company Profile
Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. 　　The products include bell jar furnace, hot blast stove, box furnace, tube furnace, vacuum furnace, trolley furnace, rotary furnace, mesh belt furnace, push plate furnace, etc., which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields. It is suitable for the heat treatment process of ITO target, MLCC / HTCC / LTCC, ceramic filter, magnetic material, CIM / MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials. 　　The company's team is composed of elites who have been engaged in thermal technology research and advanced electric furnace equipment development and design for a long time. At the same time, the company also employs experienced experts to provide technical guidance. Adhering to the attitude of being responsible for customers, the company provides customers with high-quality products and services. Looking forward to the future, Hefei Zhire is willing to work with its customers to continue to contribute to the rapid development of China's economy and contribute to the field of China's intelligent equipment manufacturing.
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder

HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
HRF930-05 Hot Air Box Furnace with High Uniformity, 900×900×1150mm Chamber, and ±1℃ Temperature Control for Electronic Ceramic Powder
FAQ
1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
