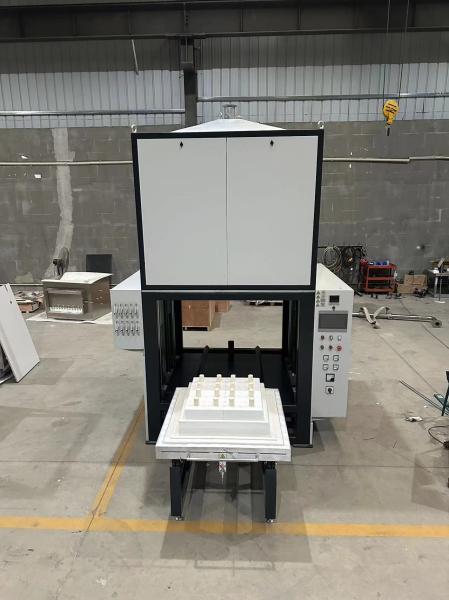

Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple
Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple
Specifications
Brand Name :
Chitherm
Model Number :
BF150-17
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Maximum Temperature :
1700°c
HS Code :
8514101000
Customization :
Available
Place Style :
Vertical
Model :
BF150-17
Description

​​High-Temperature Industrial Furnace - Technical Specifications​​

​​Product Overview​​

This precision furnace is engineered for processing electronic ceramics, magnetic materials, and ceramic filters requiring exceptional temperature uniformity and small-batch production capabilities.

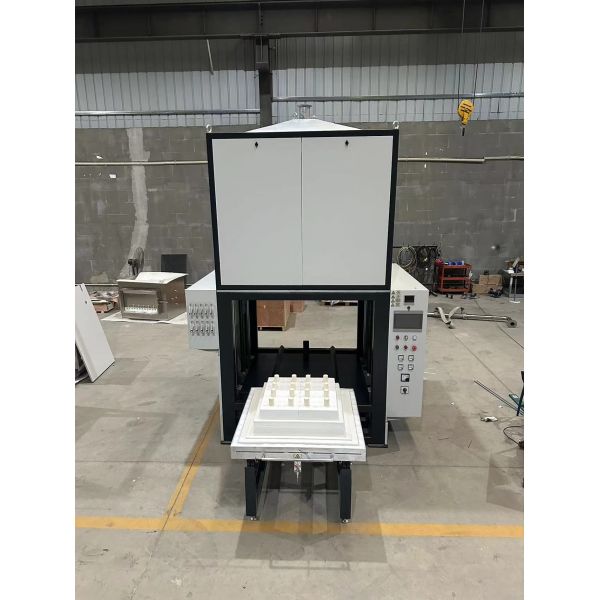

Bf150-17 High-Temperature Bell Furnace B-Grade Thermocouple

​​Technical Parameters​​

Specification

Value

​​Temperature Range​​

1650°C (rated) / 1700°C (max)

​​Working Dimensions​​

550×500×550mm (D×W×H)

​​Heating System​​

U-shaped silicon molybdenum heating elements

​​Temperature Control​​

Single-point monitoring with ±1°C accuracy

​​Heat-up Rate​​

≤5°C/min (400-1000°C) / ≤2°C/min (1000-1500°C)

​​Temperature Uniformity​​

±5°C (1500°C, 2hr test)

​​Power Requirements​​

70kVA, 3-phase 380V/50Hz

​​Exhaust System​​

Single top-mounted chimney

​​Thermal Efficiency​​

≤25kW insulation power

​​Performance Features​​

    • ​​Precision Control​​: Japanese imported PID module ensures ±2°C tracking accuracy

    • ​​Safety Systems​​: Comprehensive temperature monitoring and alarms

    • ​​Energy Efficient​​: Optimized insulation design reduces power consumption

    • ​​Compact Design​​: Space-saving footprint with high-temperature capability

    • ​​Quality Assurance​​: ±5°C uniformity at 1500°C

​​Installation Requirements​​

    • ​​Space​​: 3800×2650×3500mm (D×W×H) minimum

    • ​​Floor Load​​: >600kg/m²

    • ​​Environment​​: 0-40°C, ≤80% RH, vibration-free

    • ​​Gas Supply​​: 0.2-0.4MPa clean compressed air (10-30m³/h)

​​Standard Configuration​​

    • High-efficiency heating system

    • Precision temperature control

    • Integrated exhaust management

    • Light gray powder-coated exterior

​​Operating Conditions​​

    • ​​Atmosphere​​: Dry, oil-free compressed air

    • ​​Ventilation​​: >35m³/h exhaust capacity
