Specifications
Model Number :
Bf260-16
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
720*500*720mm(D*W*H)
Transport Package :
Wooden Packaging
Specification :
1950*3600*3100mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

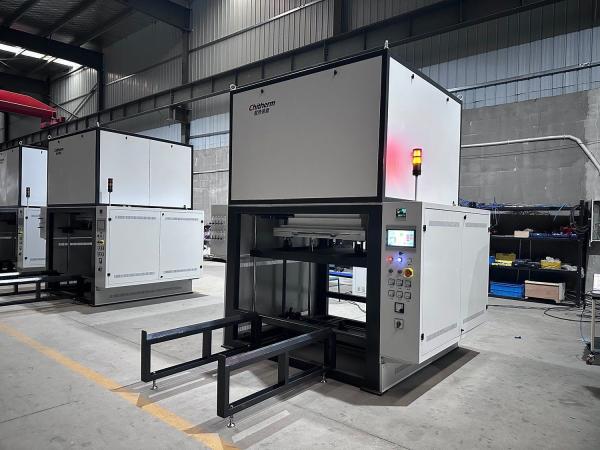

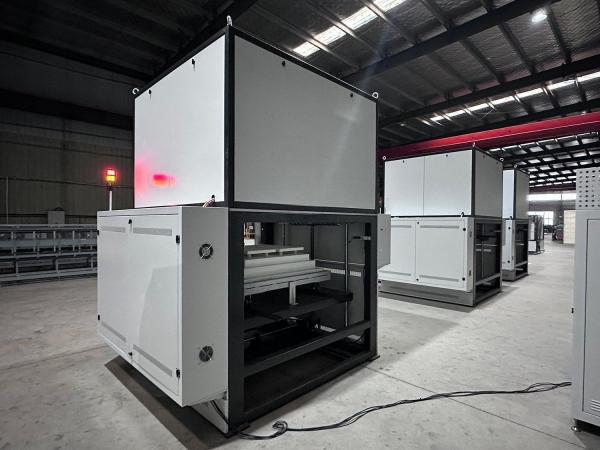

Electric Chitherm Bf260-16 High Temp. Bell Furnace for Air Atmosphere and Electric Fuel at High Temperature
1. Application:
Widely used in the adhesive sintering process of zirconia ceramics, magnetic materials, electronic ceramic components and other products.

2. Technical Specification:
  1. Rated Temp.:1500ºC
  2. Max Temp.:1600ºC
  3. Effective Dimensions:720mm*500mm*720mm(D*W*H)
  4. Heating Method:MoSi2 heating element
  5. Thermcouple:B-Type
  6. Temperature Control: 1 Point
  7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)

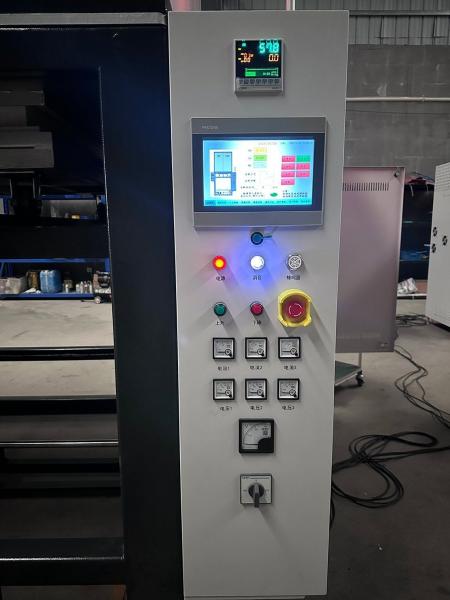

  8. Temp. Control Mode:The Japanese Daiwa Chino Programmable Temperature Controller features PID auto-tuning functionality.
  9. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC) .
  10. Maximum Heating Power:85kW
  11. Insulation Power:≤40kW
  12. Program Control: SCR Control Module;
  13. Lifting Mechanism: Lead Screw Drive Elevation System;
  14. Control Method: Phase Angle Control;
  15. Operating Atmosphere: Air;
  16. Exhaust System: Top-mounted exhaust stack for effluent discharge;
  17. Protection Functions: Audible & visual alarm system for over-temperature, motor overload, and over-travel conditions;
  18. External Dimensions: 1950*3600*3100mm(D*W*H) (without control cabinet)
  19. Appearance Color: Light gray.
High Temp Bell Elevator Furnace For Air Nitrogen Atmosphere Custom
3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Control Cabinet 1000*2000*600mm(W*H*D) 1 SET
Key Components Silicon molybdenum rod 1 SET
Thermocouple B-Type 1 SET
Temperature controller Japanese Daiwa Chino 1 SET
Spare Parts Heating Element Silicon molybdenum rod 1 PC


4.Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 30 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m2;
  5. Power Condition(TBD): capacity > 120kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site:4000mm*3500mm*4000mm(D*W*H), with an installation area greater than 14m2.
