Specifications
Model Number :
BF1500-15O
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1600*1250*800mm(D*W*H)
Warranty :
1 Year
Transport Package :
Wooden Packaging
Specification :
3280*4600*2240mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Supply Ability :
Customized
Description
Electric Holding Furnace Chitherm Bf1500-15o 1500c High Temperature Ceramic Sintering Bell Furnace for Precise Sintering
1. Application:
This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.
Vacuum Hydrogen Atmosphere Furnace For Precise Sintering Batch Production
2. Technical Specification:
  1. Rated Temp.:1400ºC
  2. Max Temp.:1500ºC
  3. Effective Dimensions:1600mm×1250mm×800mm(D×W×H)

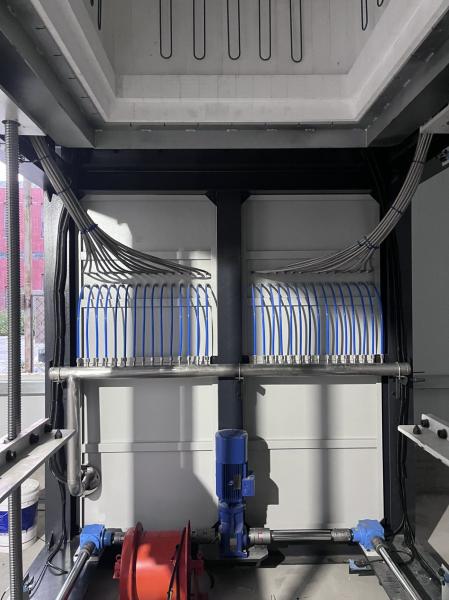

  4. Heating Method: U-shaped silicon molybdenum heater
  5. Thermcouple: Type S
  6. Temperature Control: 6 Points
  7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)
  8. Temp. Control Mode:control module imported from Japan with PID
  9. Heat-up Rate : ≤2.5ºC/min
  10. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1400ºC)
  11. Program Tracking Accuracy: ±2ºC (>600ºC)
  12. Furnace Surface Temperature ≤ 40ºC

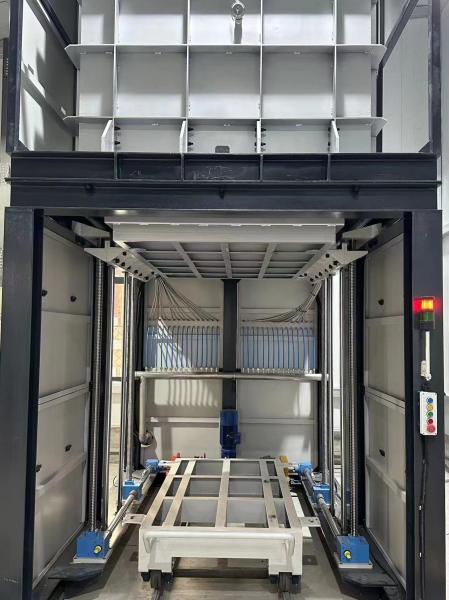

  13. Maximum Lifting Trip:800mm
  14. Lift System: the equipment lifting operation system adopts three-point control, which can be stopped at any time, with stable and reliable operation
  15. Loading Weight ≤ 1000kg (with firing furniture and products)
  16. Atmosphere Control : four channels of air inlet, each channel of air flow is controlled by the glass rotor flowmeter, single range of 12 ~ 120L / min
  17. Exhaust System : 2 exhaust chimney are set at the top with auto switch function
  18. Alarm System : with over-temperature, broken couple, overload, over-range, deviation and other sound and light alarm protection function
  19. Maximum Heating Power:180kW
  20. Insulation Power:≤ 90kW

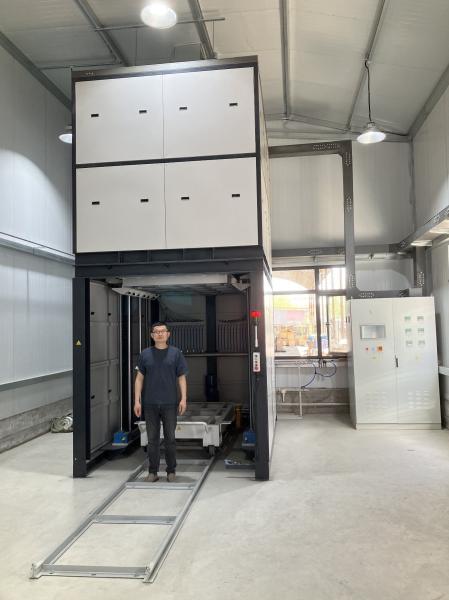

  21. External Dimensions: 3280×4600×2240mm(D×W×H) (without control cabinet)
  22. Appearance Color: Light gray
Vacuum Hydrogen Atmosphere Furnace For Precise Sintering Batch Production
2. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Control Cabinet 1000×2000×600mm(W×H×D) 1 SET
Key Components Heating Plate U-shaped silicon molybdenum heater 1 SET
Flow Meter TOFCO 1 SET
Thermocouple THERMOWAY 1 SET
Lifting System 1 SET
Temperature Control Module Azbil 1 SET
PLC SIEMENS 1 SET
Touch Screen MCGS 1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC


3. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 30 - 90 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 240kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site: 4000mm×4000mm×5000mm(D×W×H), with an installation area greater than 20m2.
