Specifications
Model Number :
BF220-17NH
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
H2/N2
Effective Chamber Dimensions :
Φ750*500
Warranty :
1 Year
Transport Package :
Wooden Packaging
Specification :
2240*2900*3000mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

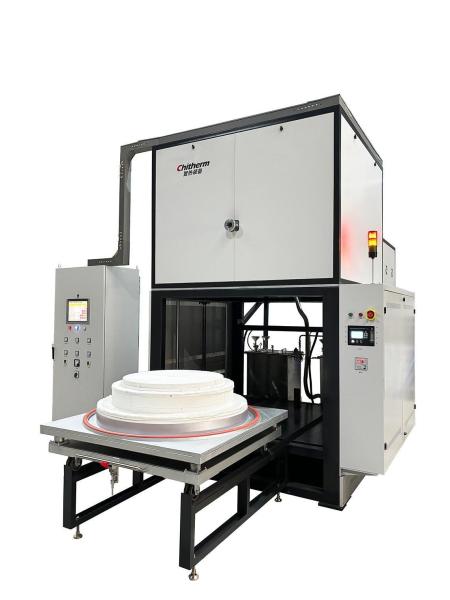

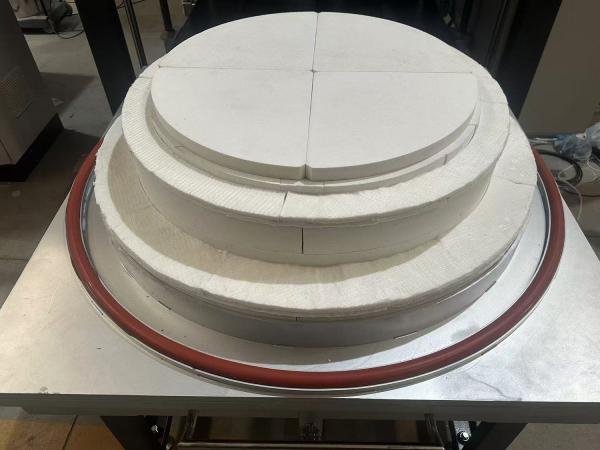

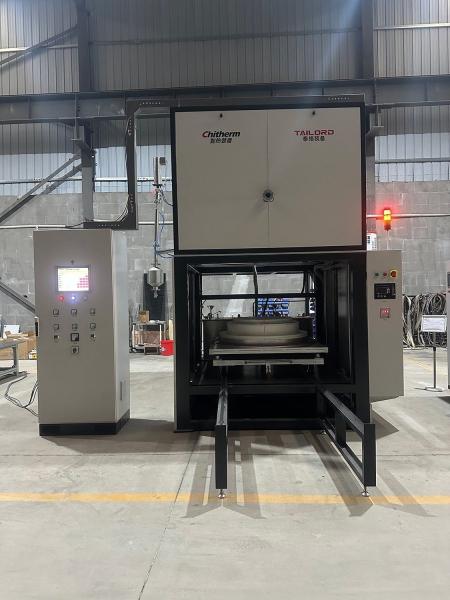

Chitherm Bf220-17nh Temperature Atmosphere Bell Furnace Effective Chamber Dimensions 750*500 and Customization Options
1. Application:
It is mainly used in the high-temperature co-sintering process of alumina substrate and metal slurry (HTCC) in nitrogen-hydrogen atmosphere.Nitrogen Hydrogen Atmosphere Elevator Furnace HTCC Steel Molding

2. Technical Specification:
  1. Rated Temp.:1600ºC
  2. Max Temp.:1650ºC
  3. Effective Dimensions:Φ750*50

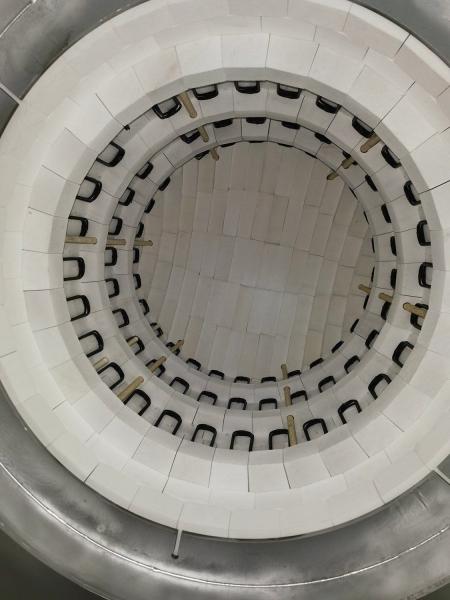

  4. Heating Method: Molybdenum-made heater
  5. Thermcouple: Type B
  6. Temperature Control: There are a total of 3 heating groups from top to bottom, with 3 independent temperature control points.
  7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)
  8. Temp. Control Mode:control module imported from Japan with PID
  9. Heat-up Rate : RT~1200ºC≤5ºC/min,1200~1600ºC≤3ºC/mi
  10. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1600ºC)
  11. Dew point range: -20~60ºC
  12. Furnace Surface Temperature <35ºC
  13. Pressure range:5000~15000Pa

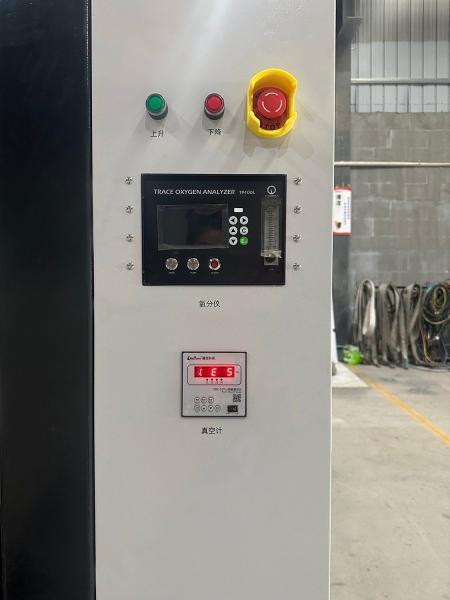

  14. Vacuum detection: vacuum gauge tube detects the vacuum value of the furnace, and the digital vacuum gauge displays the vacuum value.
  15. Loading Weight ≤ 3500kg (with firing furniture and products)
  16. Explosion protection: when the furnace pressure is higher than the set value, the exhaust valve will automatically open.
  17. Exhaust chimney: an exhaust outlet with a ignition device
  18. Alarm System : Over temperature, broken couple, electric leakage, broken wire, motor overload, humidifier low water level, low pressure, cooling water low water pressure, UPS start alarm and has over temperature alarm power protection function.
  19. Maximum Heating Power:120kW
  20. Insulation Power:≤ 60kW
  21. External Dimensions: 2240*2900*3000mm(W*H*D) (without control cabinet)
  22. Appearance Color: Light gray
Nitrogen Hydrogen Atmosphere Elevator Furnace HTCC Steel Molding
3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Molybdenum wire Custom-made 1 SET
Flow Meter Azbil or HORIBA 1 SET
Thermocouple Song Qi 1 SET

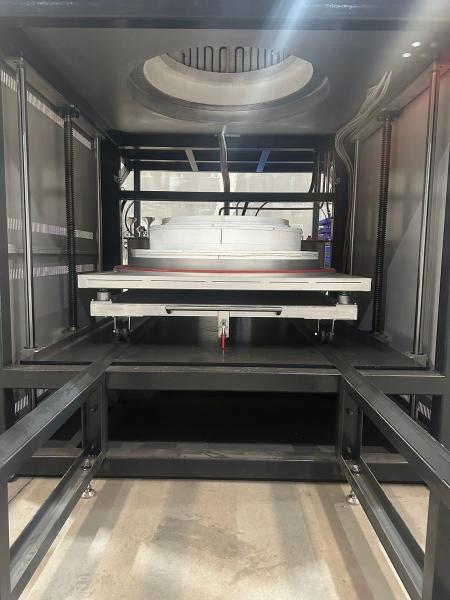

Lifting System 1 SET
Temperature Control Module Azbil 3 SET
PLC SIEMENS 1 SET
Touch Screen MCGS 1 SET
Spare Parts Heater 1 PC


4. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 30 - 90 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 240kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site: 4000mm*4000mm*5000mm(D*W*H), with an installation area greater than 20m2.
