Specifications
Model Number :
hwf260-11nh
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air/H2/N2
Effective Chamber Dimensions :
Φ550*1000(D*H)
Transport Package :
Wooden Packaging
Specification :
2100*3900*2500mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Supply Ability :
Customized
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Place of Origin :
China
Brand Name :
Chitherm
MOQ :
1
Price :
Negotiable
Packaging Details :
Customized
Delivery Time :
Customized
Payment Terms :
Customized
Description

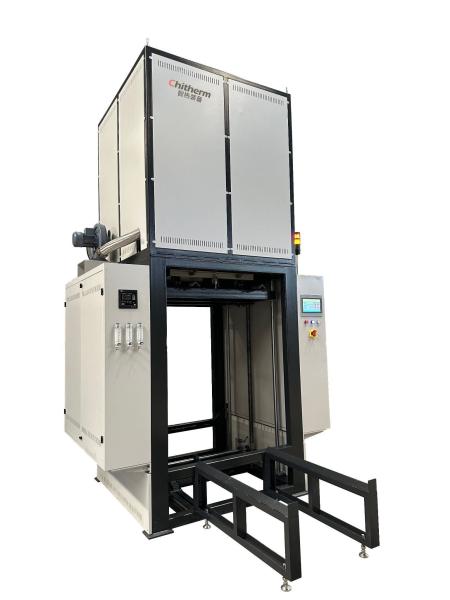

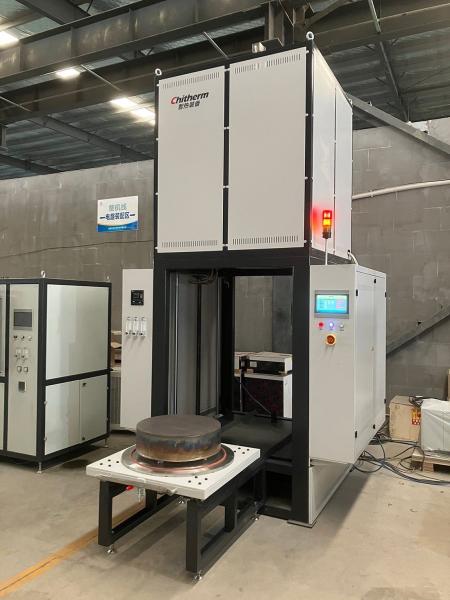

1150 ordm C Hwf260-11nh Electric Elevator Furnace Cim/MIM Annealing Degreasing Tank Furnace Hwf260-11nh for Metalworking
1. Application:
Brazing, annealing, CIM/MIM (Compression Injection Molding/Metal Injection Molding), degreasing, degassing, drying, pyrolysis, quenching, rapid prototyping, sintering, welding, sublimation, synthesis, tempering, and other processes.1150Ordm C Heat Treatment Electric CIM MIM Sintering Furnace For Metalworking Annealing Degreasing

2. Technical Specification:
  1. Rated Temp.:1100ºC
  2. Max Temp.:1150ºC
  3. Effective Dimensions:Φ550×1100mm(d×H).
  4. Heating Method:FEC ceramic fiber heater.
  5. Thermcouple:N-Type.
  6. Temp. Set Accuracy: ±1ºC
  7. Temp. Control Mode:The Japanese Programmable Temperature Controller features PID auto-tuning functionality.
  8. Temp. Uniformity: ± 5ºC .
  9. Maximum Heating Power:54kW
  10. Insulation Power:≤25kW
  11. Operating Atmosphere: Air/N2/H2.
  12. Heating rate: ≤5ºC/min.
  13. Surface temperature rise: ≤35ºC
  14. Temperature control points: 3 independently controlled zones (upper, middle, lower).
  15. Cooling method: Forced cooling via external blower.
  16. External Dimensions: 2100×3900×2500mm(W×H×D) .
  17. Appearance Color: Light gray.
3. Delivery List
Table 1 Delivery list
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Method 1 SET

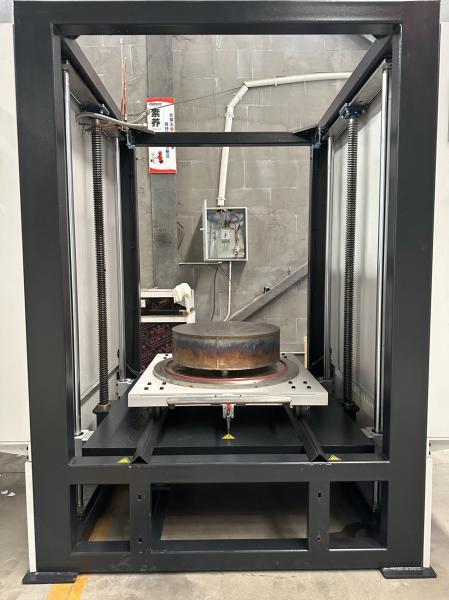

llifting system 1 SET
micro-oxygen analyzer 1 SET
blower 1 SET
Touch Screen 1 unit
Temperature controller 1 SET
Spare Parts SSR 1 PC


4.Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Nitrogen gas conditions: Supply pressure 0.2-0.4 MPa; purity ≥99.999%; consumption 3-7 m³/h;
  3. Hydrogen gas conditions: Supply pressure 0.2-0.4 MPa; consumption 3-7 m³/h;
  4. Air conditions: Supply pressure 0.2-0.4 MPa; clean, dry, oil-free; consumption 3-7 m³/h;
  5. Water inlet conditions: 0.1-0.3 MPa; clean, non-corrosive; supply flow rate 1-3 L/min;
  6. Ventilation system: Non-contact interface with user exhaust system; extraction capacity >10 m³/h;
  7. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m2;
  8. Power Condition(TBD): capacity >75kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  9. Installation Site:3500mm×3000mm×5000mm(D×W×H), with an installation area greater than 10m2.
