Specifications
Brand Name :
Chitherm
Model Number :
BF150-17
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
50 Sets/Year
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Steel Molding
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1740&;2780&;2505 (mm) (W×h×d)
Rated Temperature :
1650ºC
Maximum Temperature :
1700°c
Transport Package :
Wooden Packaging
Specification :
1740&; 2780&; 2505 (mm) (W× H× D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Customization :
Available
Certification :
ISO
Place Style :
Vertical
Description
BF150-17 High-Temperature Bell Jar Furnace
Industrial-grade heat treatment equipment optimized for high-temperature sintering processes, featuring advanced bell-jar structure suitable for sintering, annealing, and atmosphere treatment in ceramics, powder metallurgy, and electronic materials.
Key Specifications
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Rated Temperature 1650°C
Maximum Temperature 1700°C
Effective Chamber Dimensions 1740×2780×2505mm (W×H×D)
Certification ISO
Technical Specifications
Heating Method U-shaped silicon molybdenum heater
Temperature Control 1 Point with ±1°C accuracy
Heat-up Rate 400-1000°C: ≤5°C/min, 1000-1500°C: ≤2°C/min
Temperature Uniformity ±5°C (1500°C empty furnace test)
Maximum Heating Power 50kW
Insulation Power ≤25kW
Applications
Ideal for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.
Delivery Contents
Item Description Quantity
Basic Components Furnace 1 SET
Key Components U-shaped silicon molybdenum heater 1 SET

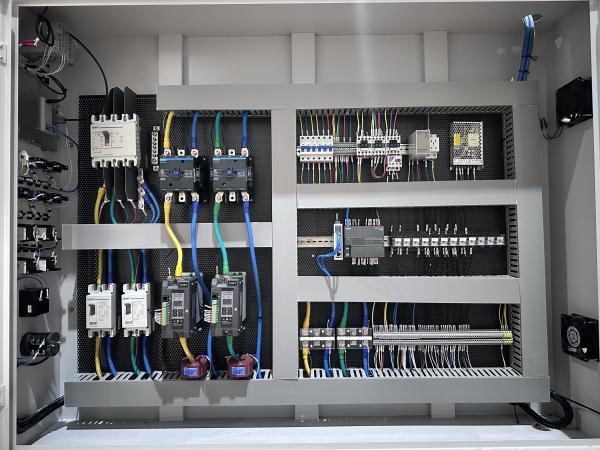

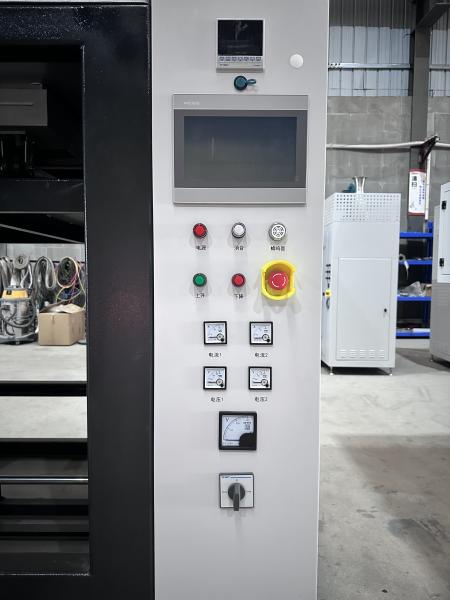

Control System SIEMENS PLC with MCGS Touch Screen 1 SET
Temperature Control Azbil control module 1 SET
Operating Conditions
  • Environment: 0-40°C, ≤80% RH, no corrosive gas
  • Atmosphere: Dry, clean compressed air (0.2-0.4MPa)
  • Power: 3-phase 5-line, 220/380V, 50Hz, >70kVA capacity
  • Installation: Minimum 12m² area with >600kg/m² load capacity

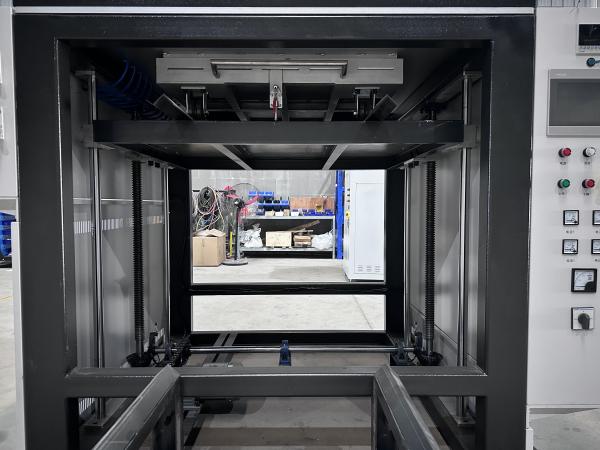

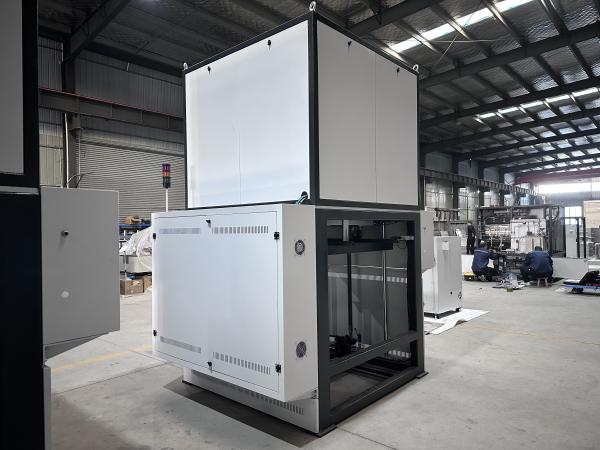

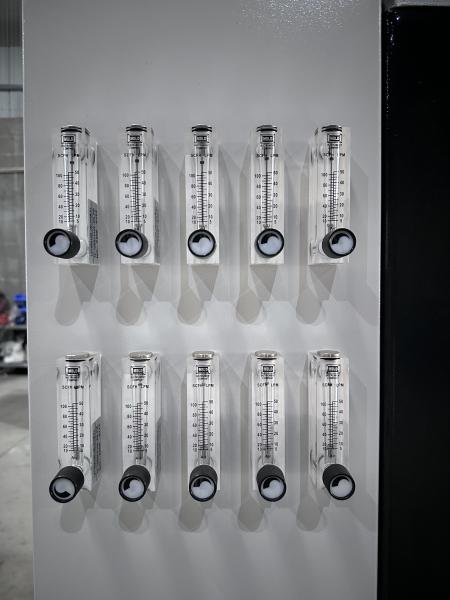

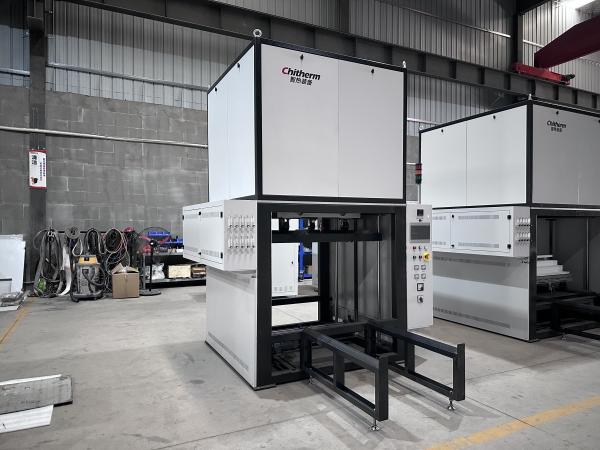

Product Images
Elevator Furnace Model BF150-17 Steel Molding 8514101000 HS Code Elevator Furnace Model BF150-17 Steel Molding 8514101000 HS Code Elevator Furnace Model BF150-17 Steel Molding 8514101000 HS Code Elevator Furnace Model BF150-17 Steel Molding 8514101000 HS Code
About Manufacturer
Hefei Chitherm Equipment Co., Ltd. specializes in R&D and manufacturing of high-quality industrial furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications.
