Specifications
Brand Name :
Chitherm
Model Number :
BF1500-15O
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Customized
Supply Ability :
Customized
Delivery Time :
Customized
Packaging Details :
Customized
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Atmosphere :
Air
Effective Chamber Dimensions :
1600*1250*800mm(D*W*H)
Warranty :
1 Year
Transport Package :
Wooden Packaging
Specification :
3280*4600*2240mm(W*H*D)
Trademark :
Chitherm
Origin :
China
HS Code :
8514101000
Production Capacity :
50 Sets/Year
Description

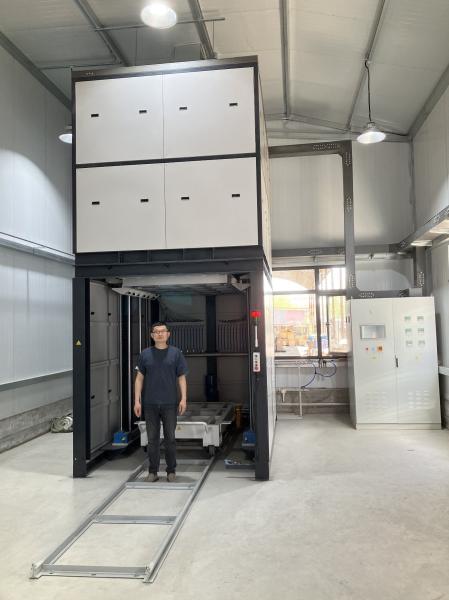

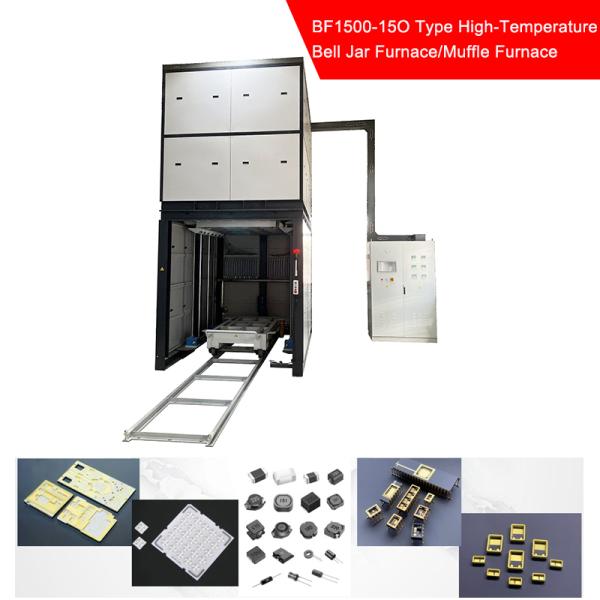

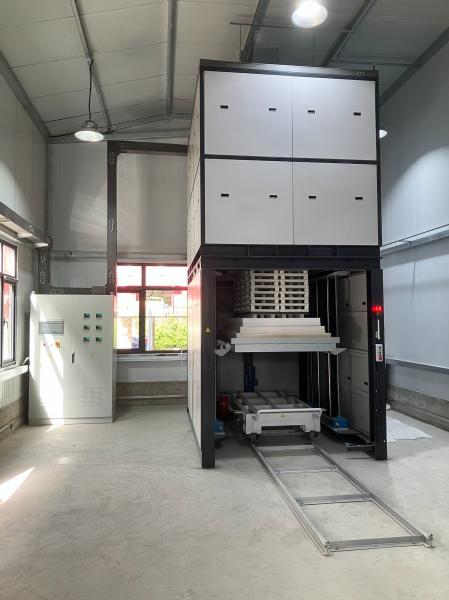

BF1500-15O High-Temperature Bell Jar Furnace/Muffle Furnace
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 1600*1250*800mm(D*W*H)
Warranty 1 Year
Transport Package Wooden Packaging
Specification 3280*4600*2240mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Production Capacity 50 Sets/Year
Product Description
The BF1500-15O High-Temperature Bell Jar Furnace/Muffle Furnace is a high-performance industrial furnace designed for advanced heat treatment processes in laboratories, research institutions, and industrial applications. With a maximum operating temperature of 1500°C, this furnace is ideal for sintering, annealing, calcination, and other thermal processes requiring precise temperature control and uniform heating.
Applications
This equipment is primarily designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.
Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere
Technical Specifications
Rated Temperature 1400°C
Maximum Temperature 1500°C
Effective Dimensions 1600mm×1250mm×800mm(D×W×H)

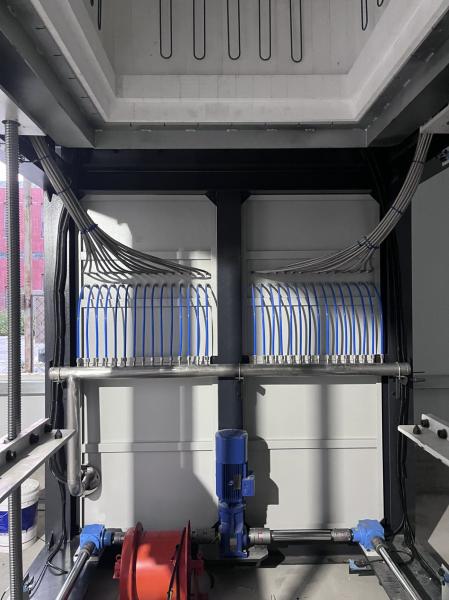

Heating Method U-shaped silicon molybdenum heater
Thermocouple Type S
Temperature Control 6 Points
Temperature Set Accuracy ±1°C (flat temperature insulation)
Temperature Control Mode Control module imported from Japan with PID
Heat-up Rate ≤2.5°C/min
Temperature Uniformity ±5°C (empty furnace insulation test 2 hours under 1400°C)
Program Tracking Accuracy ±2°C (>600°C)
Maximum Lifting Trip 800mm

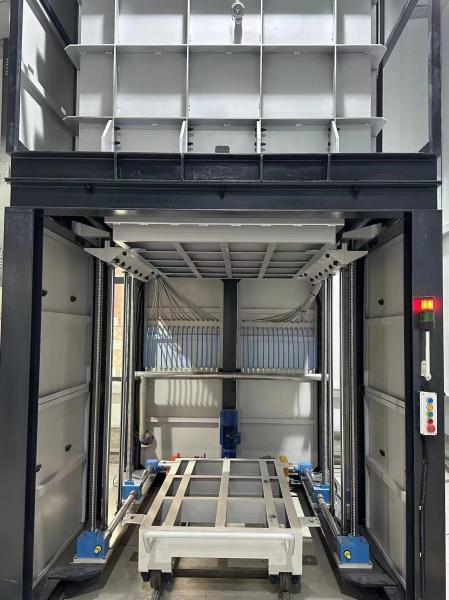

Lift System Three-point control system with stable and reliable operation
Atmosphere Control Four channels of air inlet with flow control
Exhaust System 2 exhaust chimneys with auto switch function
Alarm System Over-temperature, broken couple, overload, over-range, deviation alarms
External Dimensions 3280×4600×2240mm(D×W×H) (without control cabinet)
Delivery List
Item Note Quantity
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents 1 SET
Control Cabinet 1000×2000×600mm(W×H×D) 1 SET
Key Components Heating Plate (U-shaped silicon molybdenum heater) 1 SET
Flow Meter TOFCO 1 SET
Thermocouple THERMOWAY 1 SET
Lifting System 1 SET
Temperature Control Module Azbil 1 SET
PLC SIEMENS 1 SET
Touch Screen MCGS 1 SET
Spare Parts Heating Element (U-shaped silicon molybdenum heater) 1 PC
Equipment Operating Conditions
  • Environmental Conditions: Temperature 0~40°C, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
  • Atmosphere Conditions: Dry, clean, oil-free compressed air, working pressure 0.4-0.8MPa, gas consumption 30-90 m³/h
  • Ventilation System: Non-contact access to user pumping system with capacity >100 m³/h
  • Ground Requirements: Horizontal, no vibration, load-bearing >600 Kg/m²
  • Power Condition: Capacity >240kVA, 3-phase 5-line, voltage 220/380V, frequency 50Hz
  • Installation Site: 4000mm×4000mm×5000mm(D×W×H), installation area >20m²
Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere
Company Profile
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research, development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, extensively applied in advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.
Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere Elevator Furnace BF1500-15O 8514101000 HS Code Air Atmosphere
Frequently Asked Questions
What products does Chitherm offer?
We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet specific requirements.
What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
