Specifications
Brand Name :
Chitherm
Model Number :
Bf216-11
Place of Origin :
China
MOQ :
1
Price :
86000-86361
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Year
Packaging Details :
Wooden Package
Model NO. :
Bf216-11
Range of Applications :
Industrial
Type :
Electric Holding Furnace
Usage :
Ceramic Sintering
Fuel :
Electric
Description

Company Profile

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc.

We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.

Product Description


1. Application
This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.

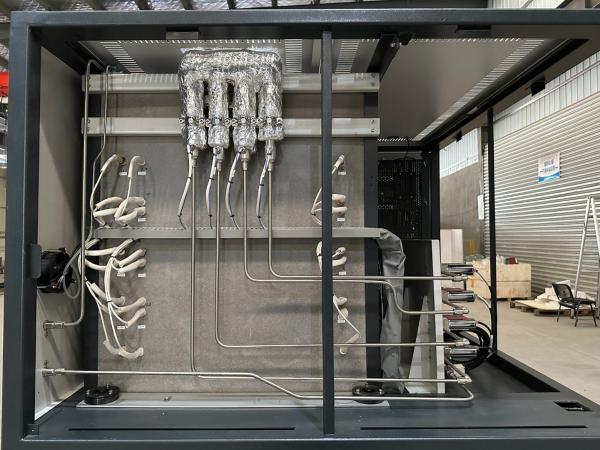

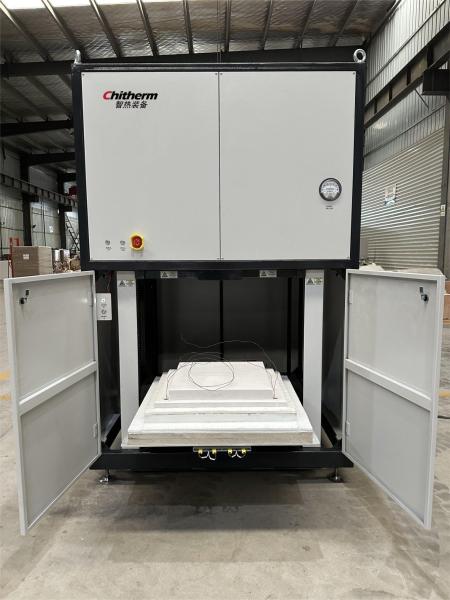

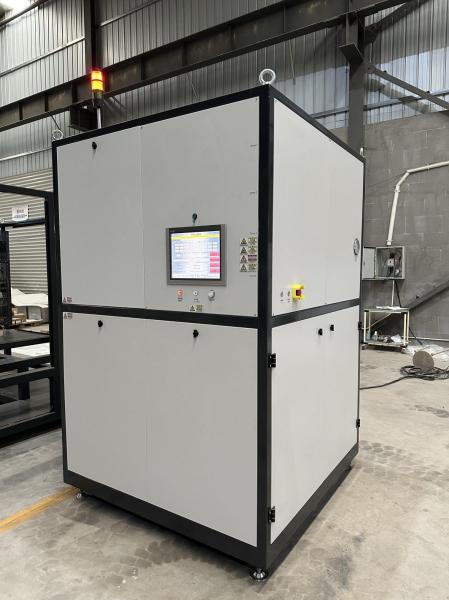

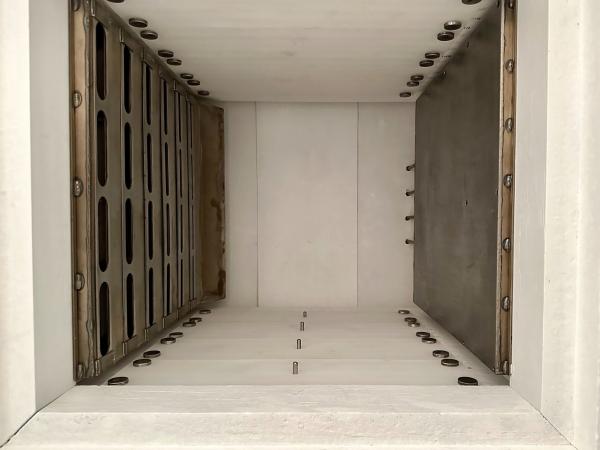

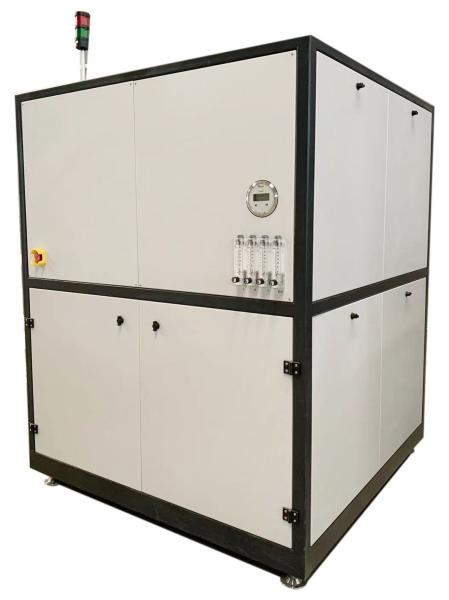

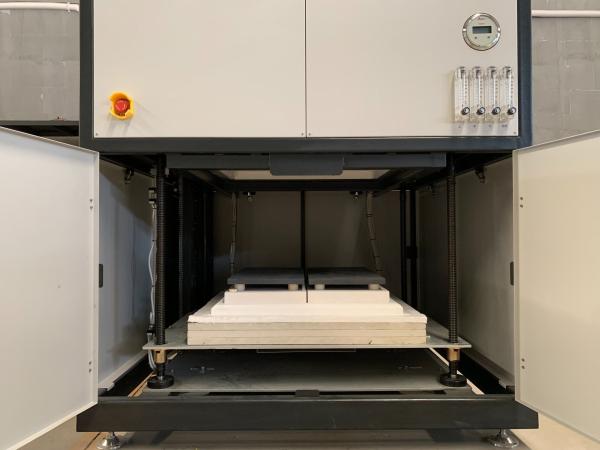

Detailed Photos

1000°C Elevator Furnace For LTCC Casting Process And Binder Burnout


Product Parameters

2.Technical Specification:

Rated Temperature 850ºC
Max. Temperature 1000ºC
Chamber Dimensions 600mm×600mm×600mm(D×W×H)
Effective Dimensions 400mm×400mm×400mm(D×W×H)
Chamber Insulation Material Aluminosilicate Ceramic Fiber
Heating Elements Resistance Coils in Ceramic Fiber Block
Thermcouple Type K
Temperature Control Point 4 Points
Pre-Heating 4 Inlets
3 Stages Pre-Filtering of air 1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Mode Temperature controller imported from Japan
Heating-up Steps Default 20 Steps
Chamber Temperature Uniformity 400mm×400mm×400mm (D×W×H) area is better than ± 3ºC
Maximum Lifting Trip 800mm
Total Power 52kW ( Max Heating Power:40kW, Max Gas Preheating Power:4×3kW )
Weight

about 1000kg



1000°C Elevator Furnace For LTCC Casting Process And Binder Burnout
3.Shipping List

 Item Description Qty
Basic Components Furnace
1SET
inspection certificate Certificate of major outsourced components 1SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1SET
Key Components Heating Elements Resistance Coils Heating Plate 1SET
Flowmeter Azbil/Dwyer/TOFCO/YINHUAN 1SET
Differential Pressure Dwyer/TOFCO/DUWEI 1SET
Thermocouple Watlow/THERMOWAY 1SET
Lifting System Customized 1SET
Temp. Controller Azbil 1SET
PLC SIEMENS 1SET
Touch Screen MCGS ( based on Linux) 1SET
Spare Parts Solid State Relay XIMADEN 1PC
Heating Elements Resistance Coils Heating Plate 1 PC

4. Facility Requirements
  1. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 25-70 m3/h
  2. Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2;
  5. Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
  6. Installation Site:3500mm×3000mm×3000mm(D×W×H), with an installation area greater than 11m2.
