1. Rated Temp.:1500ºC
2. Max Temp.:1600ºC
3. Effective Dimensions:720mm*500mm*720mm(D*W*H)
4. Heating Method:MoSi₂ heating element
5. Thermcouple:B-Type
6. Temperature Control: 1 Point
7. Temp. Set Accuracy: ±1ºC(flat temp. insulation)

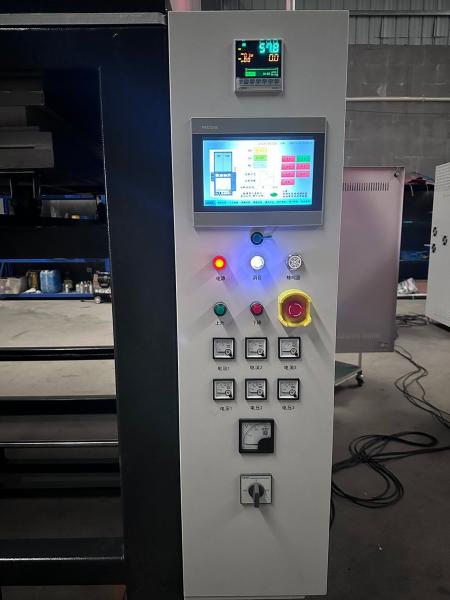

8. Temp. Control Mode:The Japanese Daiwa Chino Programmable Temperature Controller features PID auto-tuning functionality.
9. Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC) .
10. Maximum Heating Power:85kW
11. Insulation Power:≤40kW
12. Program Control: SCR Control Module;
13. Lifting Mechanism: Lead Screw Drive Elevation System;
14. Control Method: Phase Angle Control;
15. Operating Atmosphere: Air;
16. Exhaust System: Top-mounted exhaust stack for effluent discharge;
17. Protection Functions: Audible & visual alarm system for over-temperature, motor overload, and over-travel conditions;
18. External Dimensions: 1950*3600*3100mm(D*W*H) (without control cabinet)
19. Appearance Color: Light gray.

1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;

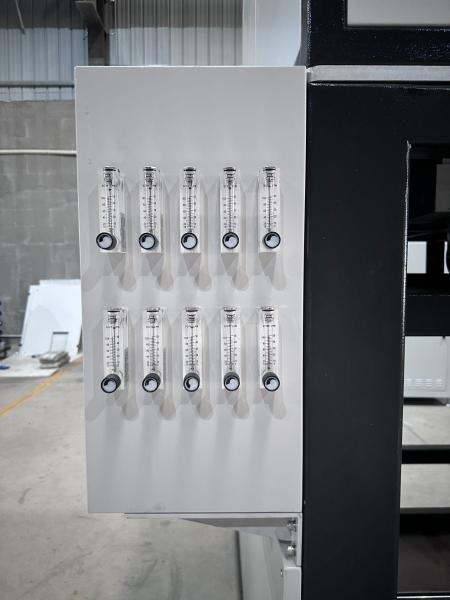

2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 10 - 30 m³/h;
3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 30 m³/h
4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m²;
5. Power Condition(TBD): capacity > 120kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
6. Installation Site:4000mm*3500mm*4000mm(D*W*H), with an installation area greater than 14m².
