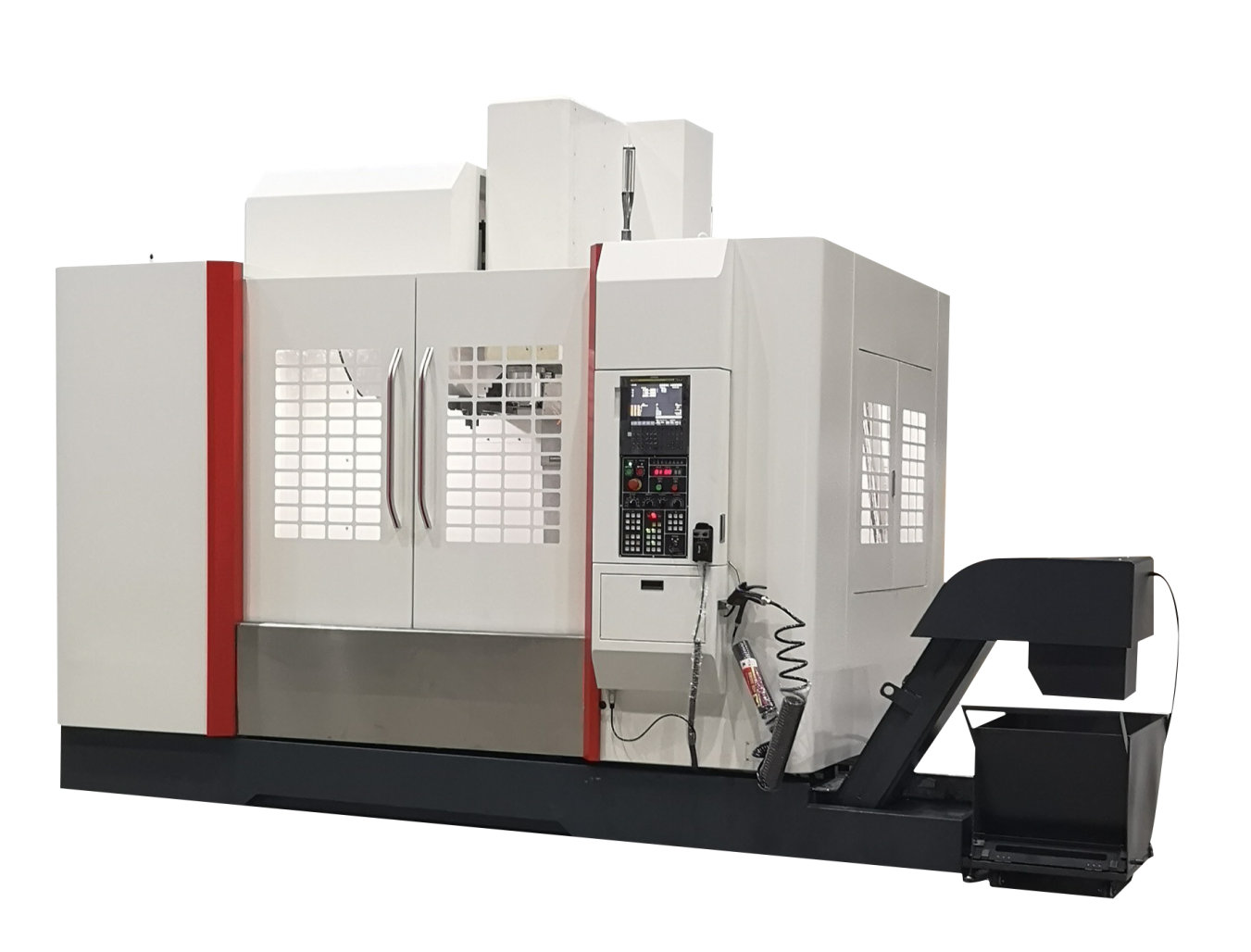

GY1300 Vertical Machining Center
GY1300 Vertical Machining Center
GY1300 Vertical Machining Center
GY1300 Vertical Machining Center
Specifications
Place of Origin :
CHINA
Guideway Type :
3‑axis heavy‑load linear guideways
Application Scenarios :
Heavy‑cut molds, construction‑machinery fittings, thick‑plate workpieces
Brand Name :
GOING
Frame Material :
High‑rigidity thick‑wall Meehanite casting with stress‑relief
Design Feature :
Max table load 1200 kg; X‑axis travel 1300 mm
Description

GY1300 Vertical Machining Center

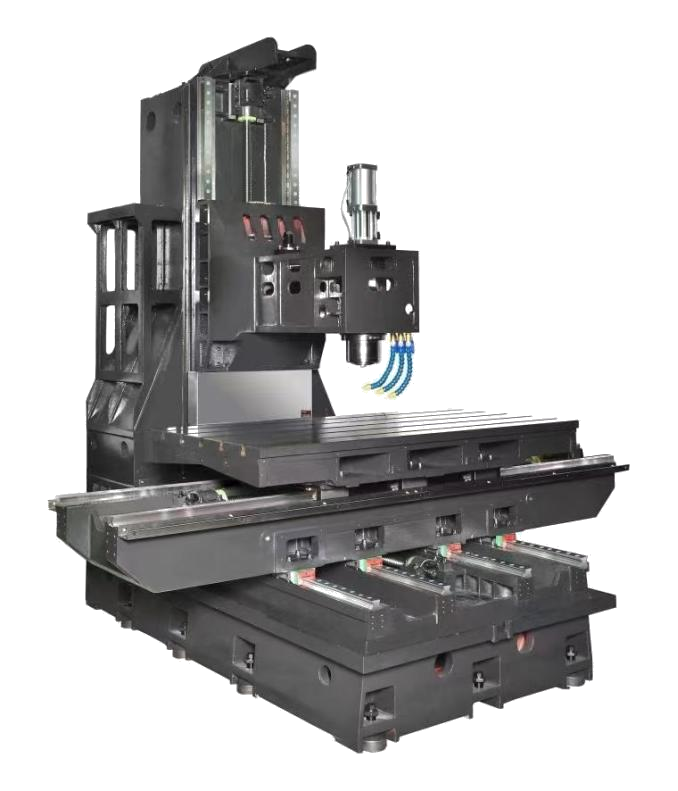

  1. GY1300 offers optional BT50 heavy‑cutting spindle. Heavy‑duty Meehanite cast frame supports 1200 kg table load.
  2. Designed for heavy‑cut conditions for large molds and construction‑machinery components.

Technical parameter

Item Specification
Model GY1300
X‑axis Travel 1300 mm
Y‑axis Travel 700 mm
Z‑axis Travel 700 mm
Spindle nose to worktable 120‑820 mm
Spindle center to column guide surface 750 mm
Table Size (X×Y) 1400×700 mm
Table T‑slot 5‑18*110 mm
Table Max Load 1200 kg
Spindle Speed 6000/8000/10000 rpm
Spindle Taper BT40 / BT50
Spindle Drive Belt type / Direct connection
Spindle Motor Power 15/18 kW
X/Y/Z Axis Motor Power 3*3*3 kW
Tool Magazine Capacity 24/30 T
Rapid Feed X/Y/Z 24/24/24 m/min
Cutting Feed X/Y/Z 1‑10 m/min
X/Y/Z Ball Screw Spec 4512/4512/4512
X/Y/Z Guideway Spec 45/45/45
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 3400*2700*2800 mm
Machine Weight 12 T
