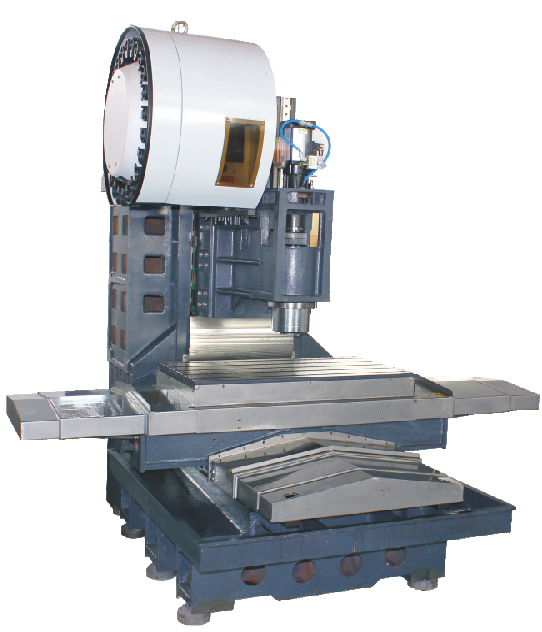

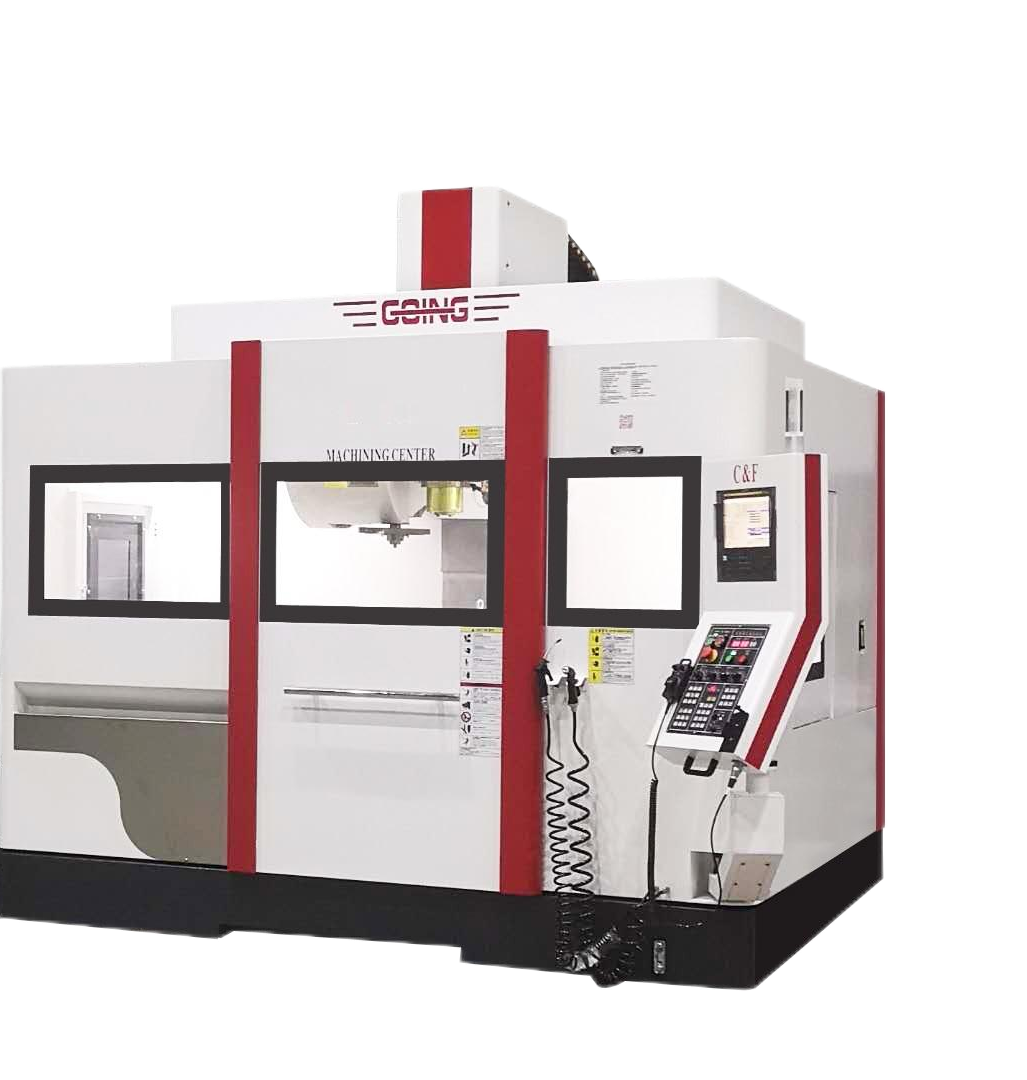

C‑855 Vertical Machining Center
C‑855 Vertical Machining Center
C‑855 Vertical Machining Center
C‑855 Vertical Machining Center
Specifications
Place of Origin :
CHINA
Guideway Type :
3‑axis precision linear guideways
Design Feature :
Extended Z‑travel up to 600 mm; max table load 500 kg
Application Scenarios :
Small‑medium mold cavities, plastic molds, precision mechanical parts
MOQ :
1pc
Brand Name :
GOING
Frame Material :
Meehanite cast iron with stress‑relief, widened column‑base box‑type construction
Description

C‑855 Vertical Machining Center

  • Frame Material: Meehanite cast iron with stress‑relief, widened column‑base box‑type construction
  • Guideway Type: 3‑axis precision linear guideways
  • Application Scenarios: Small‑medium mold cavities, plastic molds, precision mechanical parts
  • Design Feature: Extended Z‑travel up to 600 mm; max table load 500 kg

Technical parameter

Item Specification
Model C‑855
X‑axis Travel 820 mm
Y‑axis Travel 550 mm
Z‑axis Travel 600 mm
Spindle nose to worktable 120‑720 mm
Spindle center to column guide surface 560 mm
Table Size (X×Y) 1000×500 mm
Table T‑slot 5‑18*100 mm
Table Max Load 500 kg
Spindle Speed 8000/10000/12000/15000 rpm
Spindle Taper BT40 / BBT40 / HSK A63
Spindle Drive Belt type / Direct connection
Spindle Motor Power 11/15 kW
X/Y/Z Axis Motor Power 3*3*3 kW
Tool Magazine Capacity 24/30 T
Rapid Feed X/Y/Z 48/48/48 m/min
Cutting Feed X/Y/Z 1‑12 m/min
X/Y/Z Ball Screw Spec 4016/4016/4016
X/Y/Z Guideway Spec 35/45/45
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 2700*2300*2640 mm
Machine Weight 6 T
