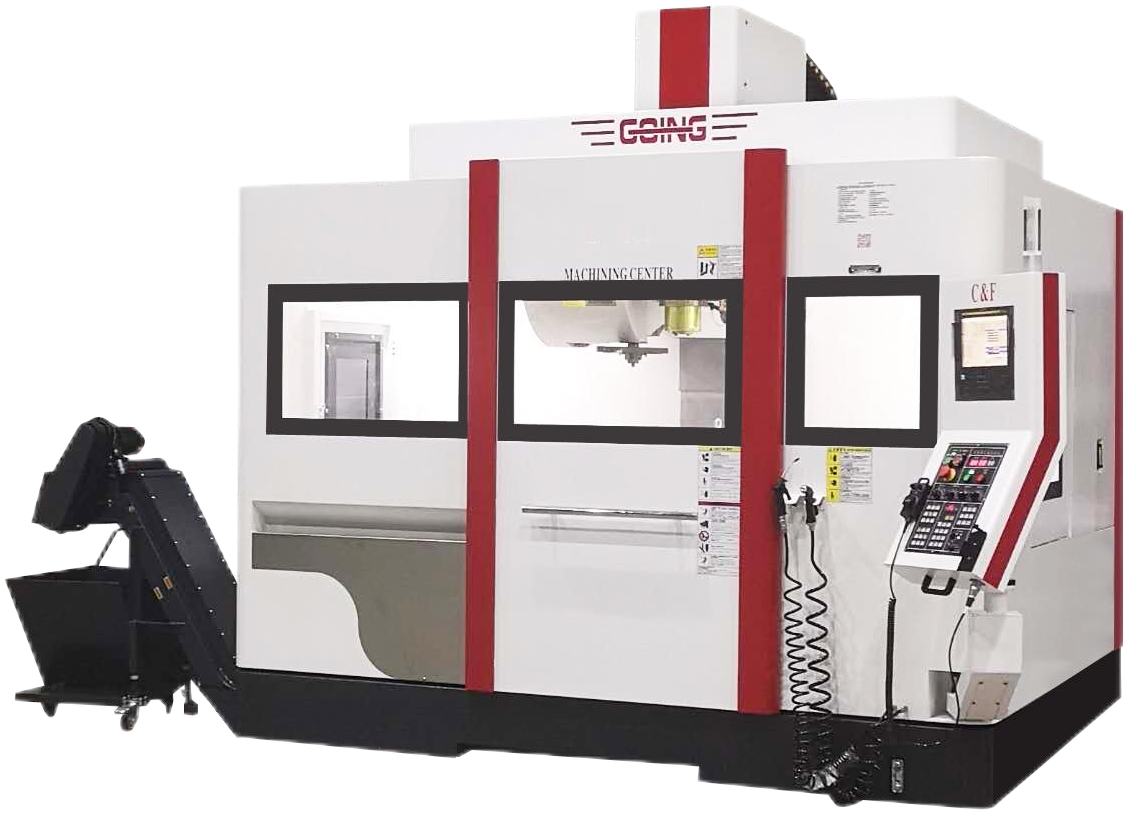

GY1200 Vertical Machining Center
GY1200 Vertical Machining Center
GY1200 Vertical Machining Center
GY1200 Vertical Machining Center
Specifications
Place of Origin :
CHINA
Design Feature :
Max table load 1000 kg; X‑axis 1200 mm, Y‑axis 700 mm
Frame Material :

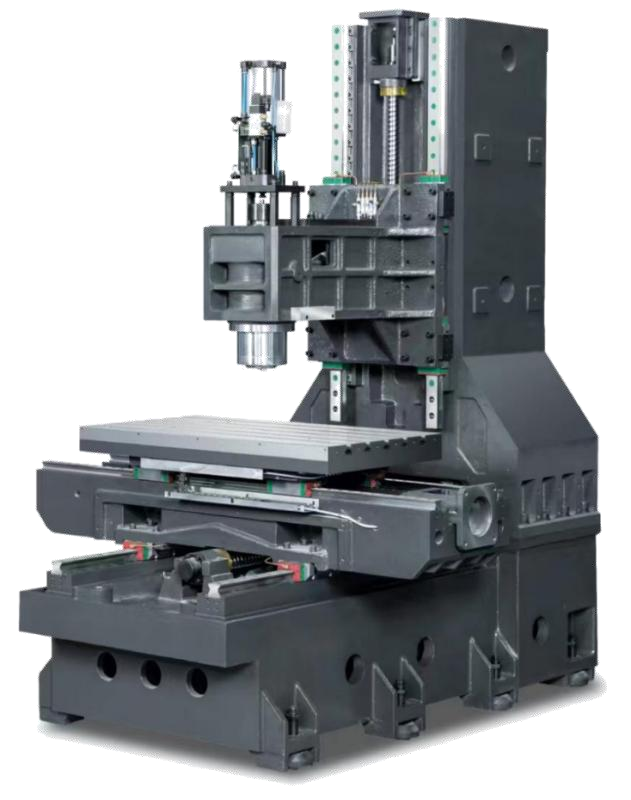

Thick‑wall Meehanite cast iron with multi‑step stress‑relief, wide‑span linear guides
Application Scenarios :
Automotive structural parts, large plate‑shaped workpieces, big molds
Brand Name :
GOING
Guideway Type :
3‑axis linear guideways
Description

GY1200 Vertical Machining Center

  1. GY1200 targets medium‑large heavy‑weight workpieces. Heavy‑duty stress‑relieved Meehanite frame carries up to 1000 kg on worktable.
  2. Widened X‑Y travel suits milling of automotive components and large plate parts.

Technical parameter

Item Specification
Model GY1200
X‑axis Travel 1200 mm
Y‑axis Travel 700 mm
Z‑axis Travel 600 mm
Spindle nose to worktable 80‑680 mm
Spindle center to column guide surface 785 mm
Table Size (X×Y) 1360×700 mm
Table T‑slot 5‑18*122 mm
Table Max Load 1000 kg
Spindle Speed 8000/10000/12000/15000 rpm
Spindle Taper BT40 / BBT40 / HSK A63
Spindle Drive Belt type / Direct connection
Spindle Motor Power 15/18 kW
X/Y/Z Axis Motor Power 3*3*3 kW
Tool Magazine Capacity 24/30T
Rapid Feed X/Y/Z 36/36/36 m/min
Cutting Feed X/Y/Z 1‑10 m/min
X/Y/Z Ball Screw Spec 4012/4012/4012
X/Y/Z Guideway Spec 45/55/45
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 3600*3000*2700 mm
Machine Weight 9 T
