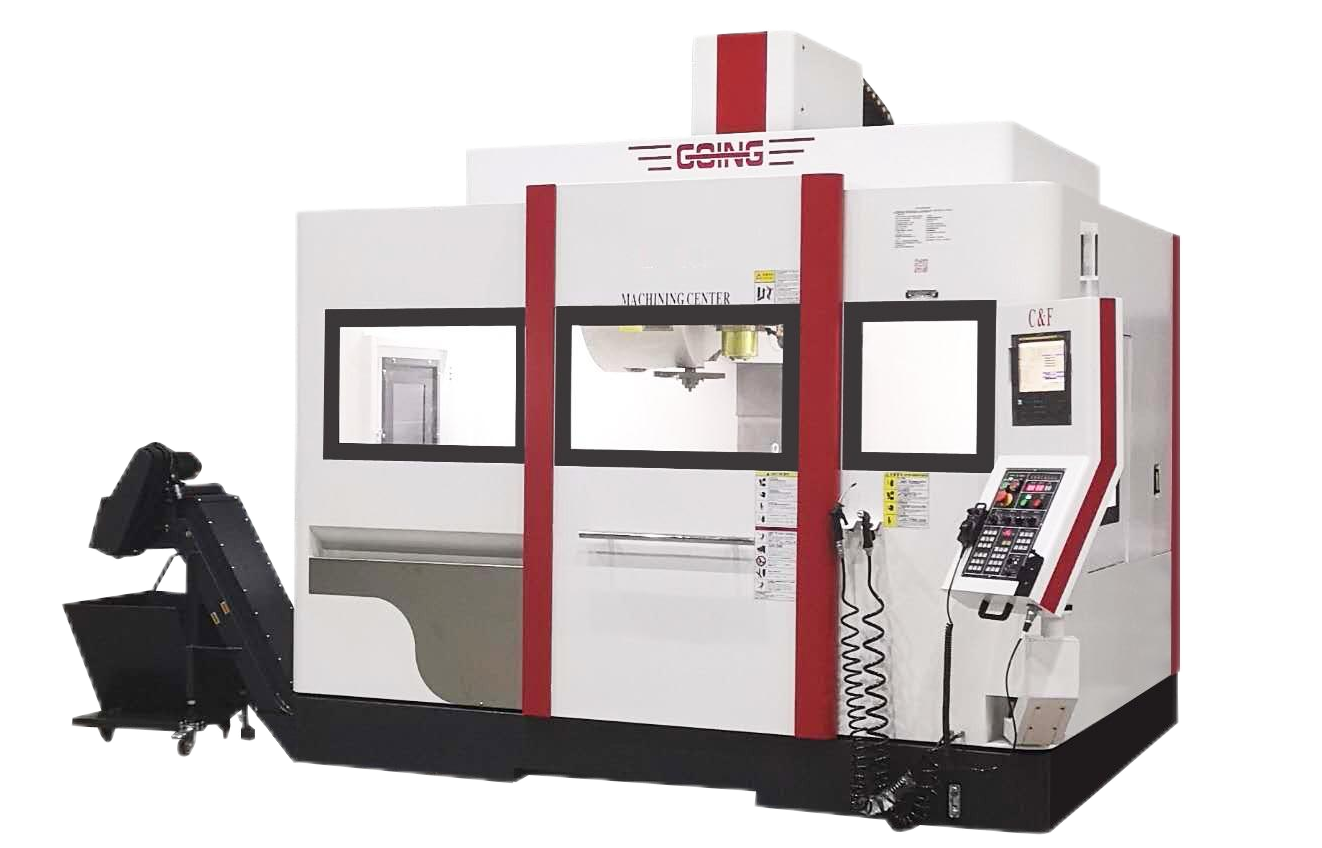

GY855 Vertical Machining Center
GY855 Vertical Machining Center
GY855 Vertical Machining Center
GY855 Vertical Machining Center
Specifications
Place of Origin :
CHINA
Guideway Type :
3‑axis precision linear guideways
Design Feature :
Compact machine dimension, balance feed speed & rigidity; max table load 500 kg
Application Scenarios :
Machining of small‑medium molds, 3C components and general‑purpose precision parts
MOQ :
1pc
Brand Name :
GOING
Frame Material :
Premium Meehanite cast iron with stress‑relief treatment, reinforced rib‑box construction
Description

GY855 Vertical Machining Center

  1. GY855 compact vertical machining center adopts stress‑relieved Meehanite cast frame with 3‑axis linear guideways.
  2. It supports both belt‑type and direct‑connection spindle drive, suited for small‑medium molds and precision‑part machining with small floor space occupation.

Technical parameter

Item Specification
Model GY855
X‑axis Travel 800 mm
Y‑axis Travel 550 mm
Z‑axis Travel 550 mm
Spindle nose to worktable 120‑670 mm
Spindle center to column guide surface 595 mm
Table Size (X×Y) 1000×550 mm
Table T‑slot 5‑18*90 mm
Table Max Load 500 kg
Spindle Speed 8000/10000/12000/15000 rpm
Spindle Taper BT40 / BBT40 / HSK A63
Spindle Drive Belt type / Direct connection
Spindle Motor Power 11/15 kW
X/Y/Z Axis Motor Power 3*3*3 kW
Tool Magazine Capacity 24/30 T
Rapid Feed X/Y/Z 48/48/48 m/min
Cutting Feed X/Y/Z 1‑10 m/min
X/Y/Z Ball Screw Spec 4016/4016/4016
X/Y/Z Guideway Spec 35/45/45
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 2600*2200*2400 mm
Machine Weight 5.2 T
