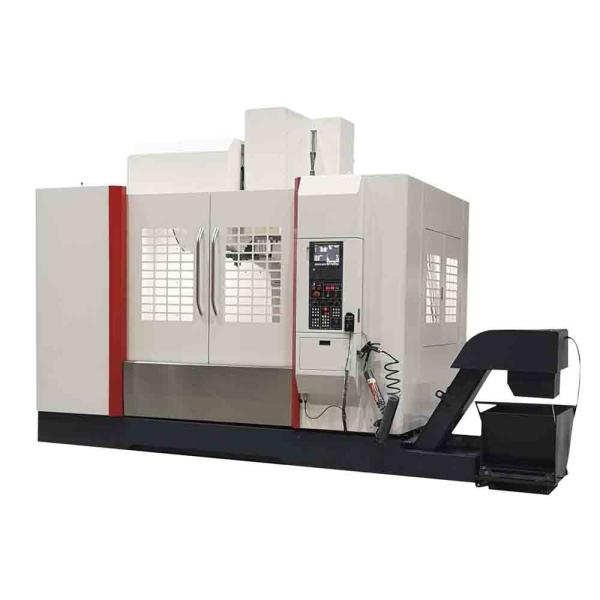

GY1300 3 Axis Vertical Machining Center High Rigidity And Lasting Stability Vmc Cnc Machine
GY1300 3 Axis Vertical Machining Center High Rigidity And Lasting Stability Vmc Cnc Machine
Specifications
Description
GY1300 VERTICAL MACHINING MACHINE

●The unique and powerful mechanical structure perfectly embodies high rigidity and lasting stability
●Integrated screw base and motor base to ensure high rigidity and stability
●Suitable for aerospace, high precision mold, parts, 3C, 5G parts processing tool.
●High-end impeller machining/surface, curve, universal machining

TECHNICAL PARAMETER
Specifications/Models Unit GY-1300

Processing range		 X-axis travel mm 1300
Y-axis travel mm 700
Z-axis travel mm 700
Distance from spindle nose to work surface mm 120-820
Distance from spindle center to column track plane mm 750
Table specification Bed dimension mm 1400*700
Table T-slot dimensions mm 5-18*110
Maximum bearing capacity of table kg 1200
Main specifications Speed of mainshaft rpm 6000/8000/10000
Main specifications / BT40/BT50
kind of drive / Belt type/ Direct connection
Electrical machinery Spindle motor power kw 15/18
X, Y, Z axis motor power kw 3*3*3
Knife library Capacity T 24/30
Feed X, Y, Z axis fast feed m/min 24/24/24
X, Y, Z axis cutting feed m/min 1-10
Screw, guide rail specifications X, Y, Z axis screw specifications mm 4512/4512/4512
X, Y, Z axis guide specifications mm 45/45/45
Precision Positional accuracy mm ±0.005/300
Repeated positioning accuracy mm ±0.003/300
Machine Specification Machine size mm

3400*2700*2800
Machine weight kg 9800
