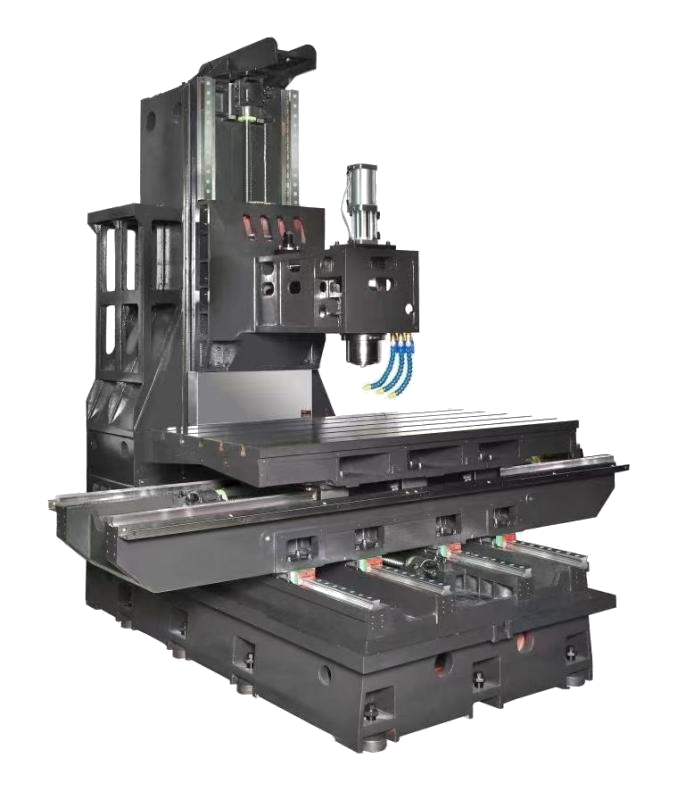

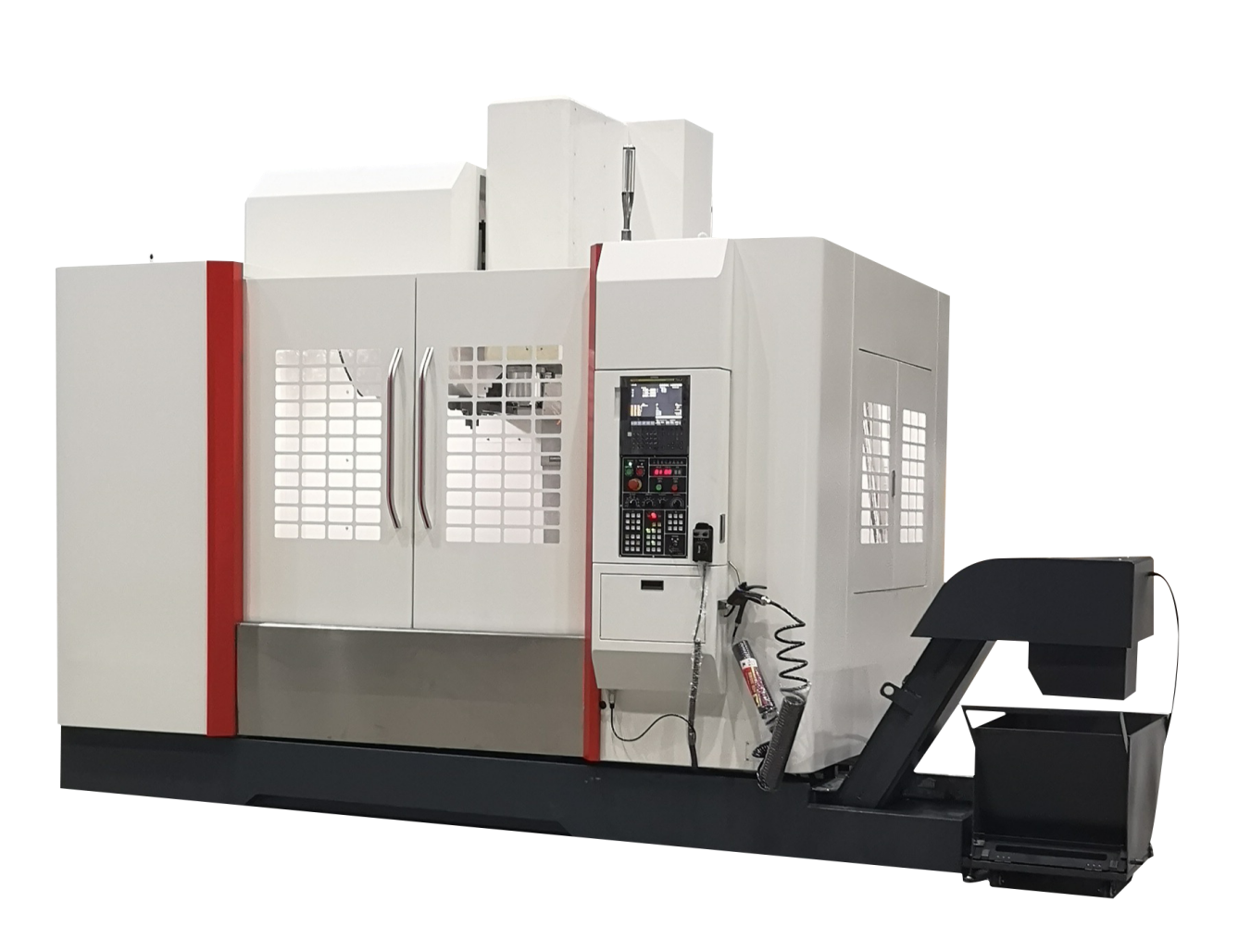

GY1500 Vertical Machining Center
GY1500 Vertical Machining Center
GY1500 Vertical Machining Center
GY1500 Vertical Machining Center
Specifications
Guideway Type :
3‑axis over‑size heavy‑load linear guideways
Place of Origin :
CHINA
Application Scenarios :
Large automotive molds, heavy plates, extra‑large housings
Frame Material :
Extra‑heavy Meehanite casting with full stress‑relief process
Brand Name :
GOING
Design Feature :
Max table load 1500 kg; high‑power 4.5 kW X/Y/Z servo motors
Description

GY1500 Vertical Machining Center

  • GY1500 is the largest‑size vertical model in this series. Heavy‑duty Meehanite cast frame realizes 1500 kg table load.
  • 4.5 kW high‑power X/Y/Z servo motors and BT50 spindle cater for heavy‑cutting of extra‑large heavy workpieces.

Technical parameter

Item Specification
Model GY1500
X‑axis Travel 1500 mm
Y‑axis Travel 800 mm
Z‑axis Travel 700 mm
Spindle nose to worktable 185‑885 mm
Spindle center to column guide surface 865 mm
Table Size (X×Y) 1600×800 mm
Table T‑slot 7‑22*110 mm
Table Max Load 1500 kg
Spindle Speed 6000/8000/10000 rpm
Spindle Taper BT40 / BT50
Spindle Drive Belt type / Direct connection
Spindle Motor Power 15/18 kW
X/Y/Z Axis Motor Power 4.5*4.5*4.5 kW
Tool Magazine Capacity 24/30 T
Rapid Feed X/Y/Z 30/30/30 m/min
Cutting Feed X/Y/Z 1‑10 m/min
X/Y/Z Ball Screw Spec 5010/5010/5010
X/Y/Z Guideway Spec 55/45/55
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 3700*2900*3800 mm
Machine Weight 15 T
