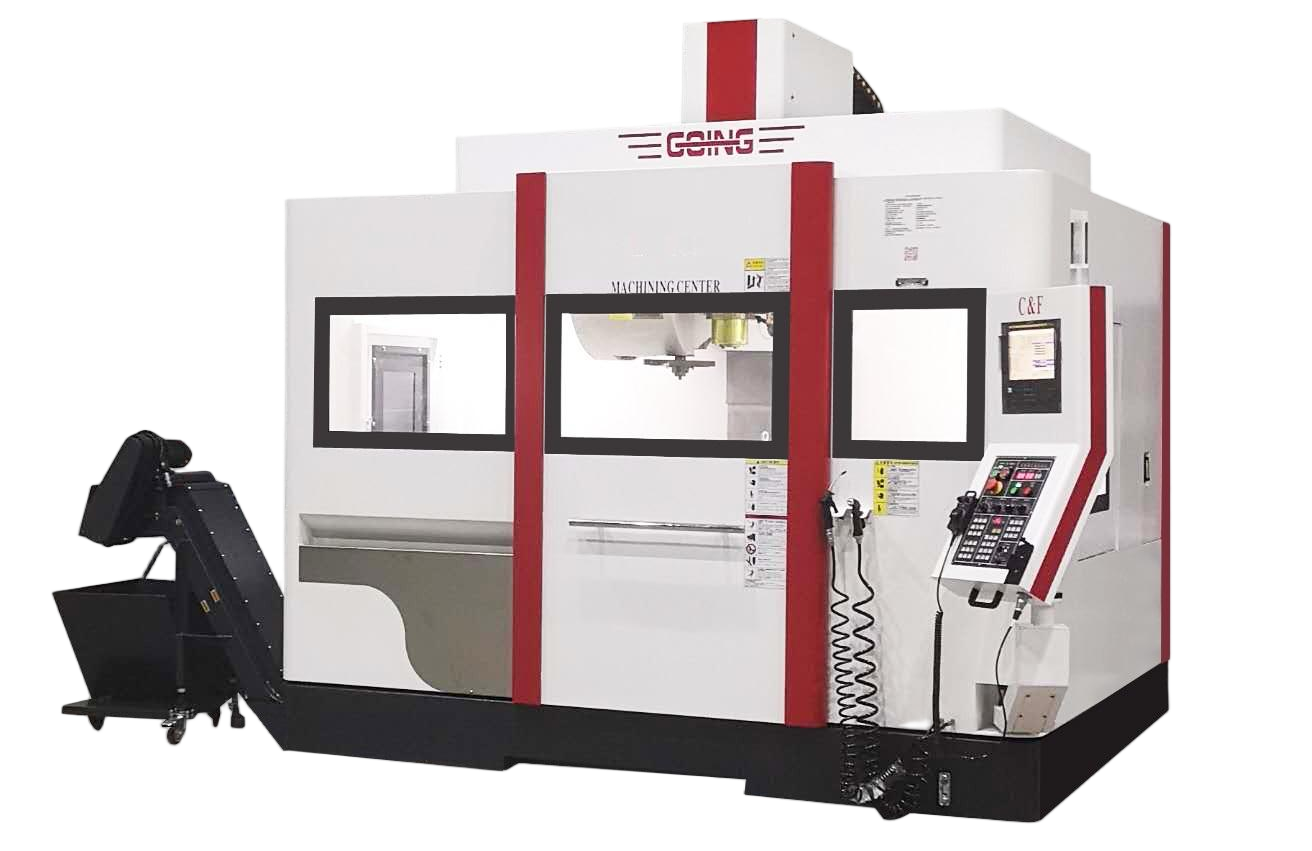

GY1100 Vertical Machining Center
GY1100 Vertical Machining Center
GY1100 Vertical Machining Center
GY1100 Vertical Machining Center
Specifications
Place of Origin :
CHINA
Guideway Type :
3‑axis linear guideways
Design Feature :
Max table load 800 kg; X‑axis travel 1100 mm
Application Scenarios :
Batch machining for medium‑size molds, valve bodies and housing parts
MOQ :
1pc
Brand Name :
GOING
Frame Material :
Stress‑relieved Meehanite cast iron with reinforced box ribs
Description

GY1100 Vertical Machining Center

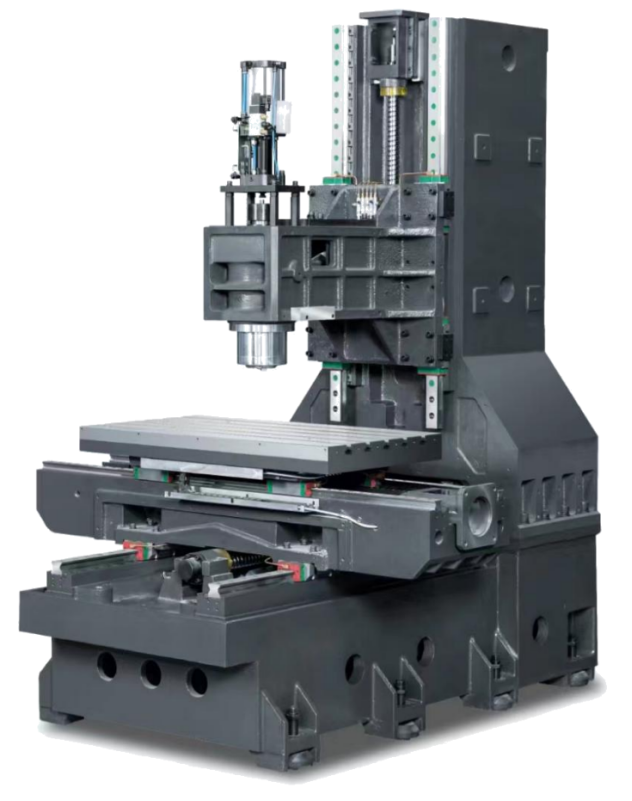

  1. GY1100 is medium‑size large‑travel vertical machine. Stress‑relieved Meehanite frame equips heavy‑load worktable up to 800 kg.
  2. High‑speed 3‑axis rapid traverse suits milling of housings, valve‑bodies and medium‑sized molds.

Technical parameter

Item Specification
Model GY1100
X‑axis Travel 1100 mm
Y‑axis Travel 600 mm
Z‑axis Travel 600 mm
Spindle nose to worktable 120‑720 mm
Spindle center to column guide surface 650 mm
Table Size (X×Y) 1200×600 mm
Table T‑slot 5‑18*100 mm
Table Max Load 800 kg
Spindle Speed 8000/10000/12000/15000 rpm
Spindle Taper BT40 / BBT40 / HSK A63
Spindle Drive Belt type / Direct connection
Spindle Motor Power 11/15 kW
X/Y/Z Axis Motor Power 3*3*3 kW
Tool Magazine Capacity 24/30 T
Rapid Feed X/Y/Z 36/36/36 m/min
Cutting Feed X/Y/Z 1‑10 m/min
X/Y/Z Ball Screw Spec 4012/4012/4012
X/Y/Z Guideway Spec 45/45/45
Positioning Accuracy ±0.005/300 mm
Repeat Positioning Accuracy ±0.003/300 mm
Machine Dimension 3100*2300*2600 mm
Machine Weight 6 T
