0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
Specifications
Brand Name :
LongJoin
Model Number :
JL-200Z
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Volt Range :
0~480VAC
Load Rating :
15 A
Lead Length :
6" min
Lead :
AWG#12/14 AWG#16/18(non-UL)
Certifications :
RoHS,RU,CE,CB,UKCA
Real-world Scenarios :
Industrial Park Management
Description
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material

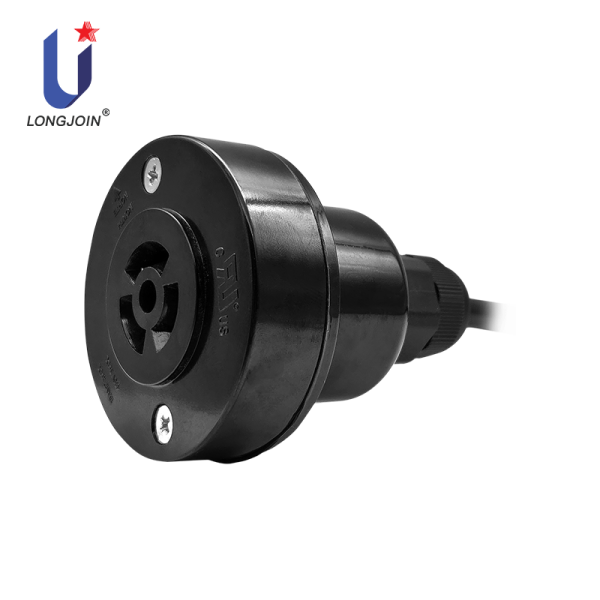

JL-200Z Photocontrol Receptacle

All JL-200Z photocontrol receptacles are designed for lanterns intended to accept a twist-lock photocontrol for power management.

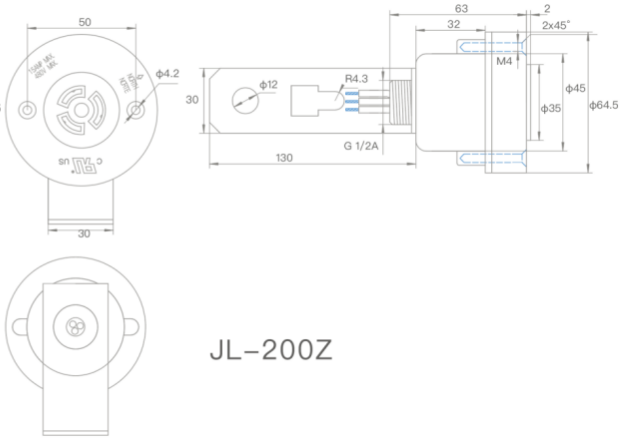

Product Dimensions
0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
Product Features
  • PBT material or bakelite material options
  • Silicone gasket for enhanced waterproof protection
Technical Specifications
Model No. JL-200Z
Power Volt Range 0~480VAC
Rated Frequency 50/60Hz
Load Rating 15 A
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Lead Length 6" min
Lead AWG#12/14 AWG#16/18(non-UL)
Cable Line (IP65) Optional
Certifications 0~480V Wide Voltage Photocontrol Receptacle NEMA 3P PBT Material Or Bakelite Material
Frequently Asked Questions
What is the 0~480V wide voltage photocontrol receptacle?

It is a NEMA 3-pin socket for photosensitive controllers, supporting a wide voltage range of 0-480V, suitable for various high and low voltage outdoor lighting control systems.

What interface specification does this receptacle use?

It adopts the standard NEMA 3P interface, which has good compatibility and can match most conventional photocontrol devices on the market.

What material options are available for this product?

This receptacle offers two material options: PBT material and bakelite material, allowing users to choose according to project requirements and environmental conditions.

What are the characteristics of PBT and bakelite materials?

PBT features high toughness, good insulation and strong weather resistance; bakelite has high heat resistance, flame retardancy and excellent mechanical strength, both suitable for long-term outdoor use.

In which scenarios is this wide voltage photocontrol receptacle mainly applied?

It is mainly used in road lighting, street lamps, industrial and mining lighting, and public outdoor lighting with different voltage systems and high stability requirements.
