Specifications
Brand Name :
LongJoin
Model Number :
JL-260D
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Applicable Volt Range :
0~480VAC
Power Loading :
15A
Signal Control :
0-30 VDC, 250 mA Max
Lead :
16AWG/14AWG 6" min
Certifications :
ANSI C136.41-2013,RoHS,RU,CE,CB,UKCA
Real-world Scenarios :
Highway & Expressway Lighting
Description
15A High Current Load Flagship Slim Dimming Receptacle 7P Flagship Ultra Thin Waterproof Rotatable Version
JL-260D Flagship Slim Dimming Receptacle 7P

This JL-260D series photocontrol receptacle is designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. It conforms to the newly published ANSI C136.41 standard to allow LED lamp multi-control through the receptacle.

The receptacle offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.

Key features include waterproof self-rotation with 360° limited rotation and a super compressed height size. The D1 type features an integral structure with external thread installation, while the D2 type is a split structure for internal thread installation.

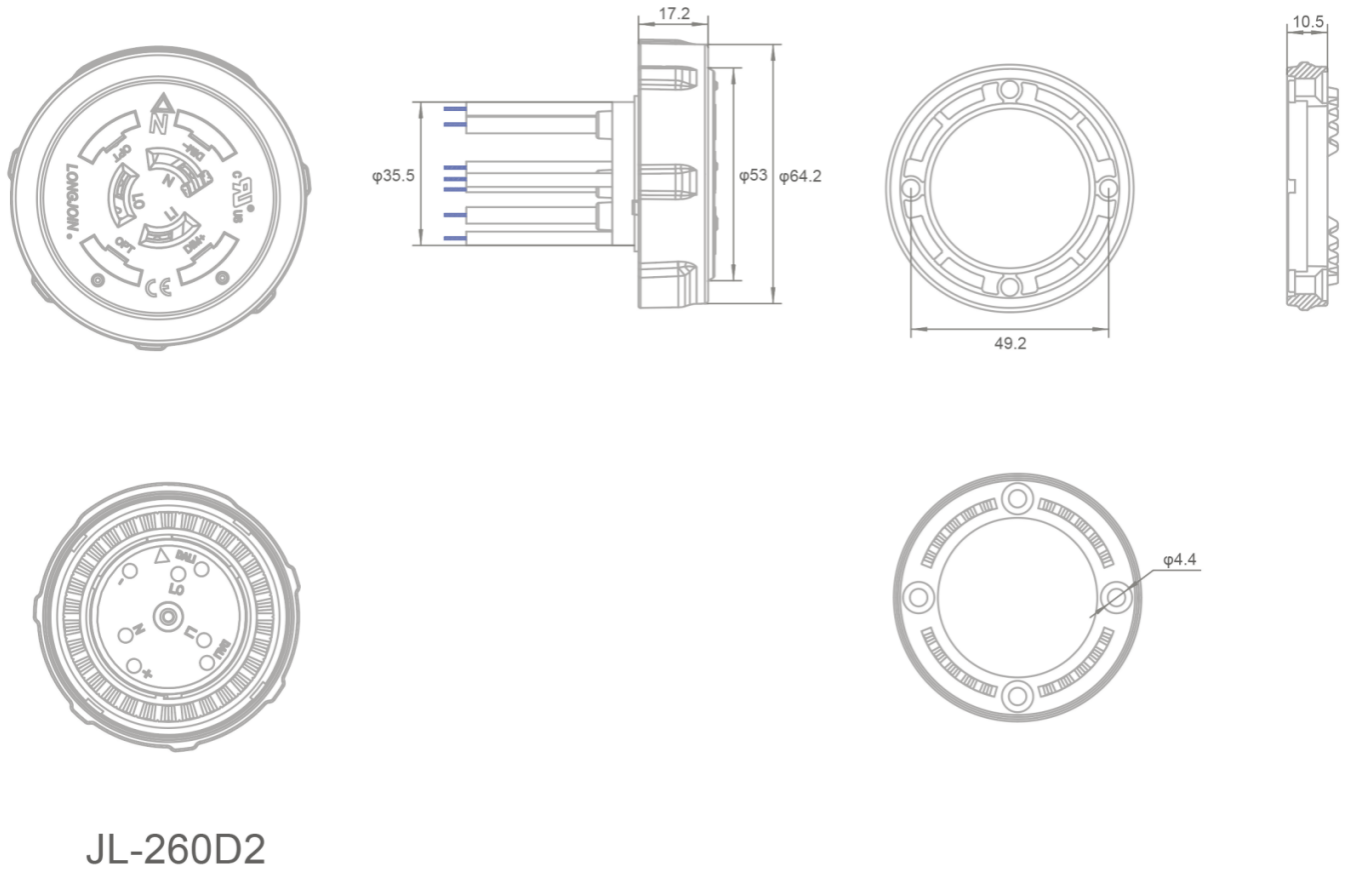

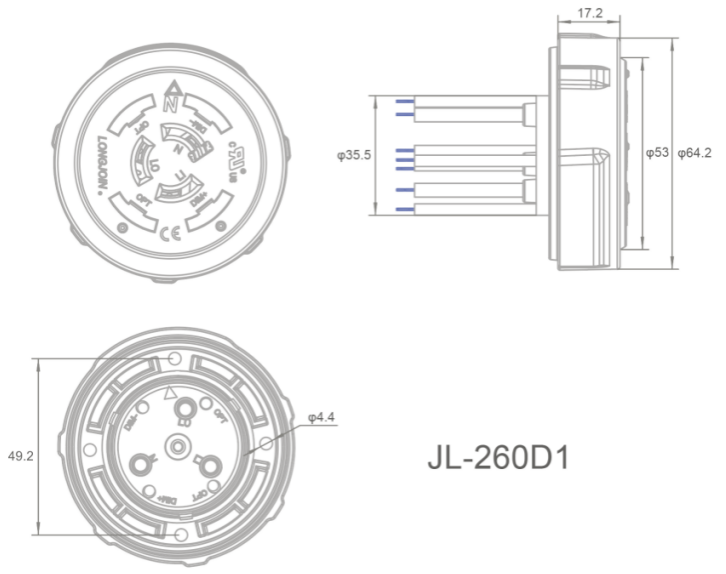

Product Dimensions
15A High Current Load Flagship Slim Dimming Receptacle 7P Flagship Ultra Thin Waterproof Rotatable Version 15A High Current Load Flagship Slim Dimming Receptacle 7P Flagship Ultra Thin Waterproof Rotatable Version
Product Features
  • Body made from durable polycarbonate material
  • Contacts constructed from phosphor bronze for optimal conductivity
  • Gold pads made from nickel plated phosphor bronze with gold plating per ASTM B 488 standard
  • High visibility North pointer for proper orientation
Technical Specifications
Model No. JL-260D
Applicable Volt Range 0~480VAC
Rated Frequency 50/60Hz
Power Loading 15A
Signal Control 0-30 VDC, 250 mA Max
Lead 16AWG/14AWG 6" min
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Certifications ANSI C136.41-2013
15A High Current Load Flagship Slim Dimming Receptacle 7P Flagship Ultra Thin Waterproof Rotatable Version
Frequently Asked Questions
What is the 15A high current load flagship slim dimming receptacle?
It is an ultra-thin, high-performance dimming socket receptacle that supports a 15A high current load, designed for intelligent lighting control with a slim profile and strong load capacity.
What are the advantages of the flagship ultra-thin design?
The ultra-thin slim body saves installation space, fits modern compact street lamp and outdoor lighting fixtures, and improves overall appearance integration.
What functions does the 7-pin (7P) rotatable version provide?
The 7-pin interface supports multiple dimming signals and power transmission, while the rotatable design allows flexible angle adjustment during installation to adapt to different lamp structures.
How does the waterproof structure perform in outdoor environments?
It has a high-level waterproof structure, enabling stable operation in rain, snow, humidity and other harsh outdoor conditions, ensuring long-term reliability.
In what scenarios is this high-current slim receptacle mainly applied?
It is mainly used in high-power road lighting, intelligent street lamps, landscape lighting and commercial outdoor lighting systems requiring dimming and large current support.
