NEMA Socket Waterproof Twist Lock Dimming Receptacle NEMA 7P 5P 15A High Current Load
JL-240F Waterproof Twist-lock Dimming Receptacle NEMA 7P/5P

Product Summary

The JL-240F series photocontrol receptacles are designed for lanterns requiring an ANSI C136.10 receptacle to accommodate twist-lock photocontrols. This series conforms to the newly published ANSI C136.41 standard, enabling multi-control of LED lamps through the receptacle.

This series features 2 or 4 gold-plated low voltage pads on the top surface to accommodate photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.

The JL-240F offers enhanced waterproof performance with screw hole O-rings and internal/external sealing using silicone glue.

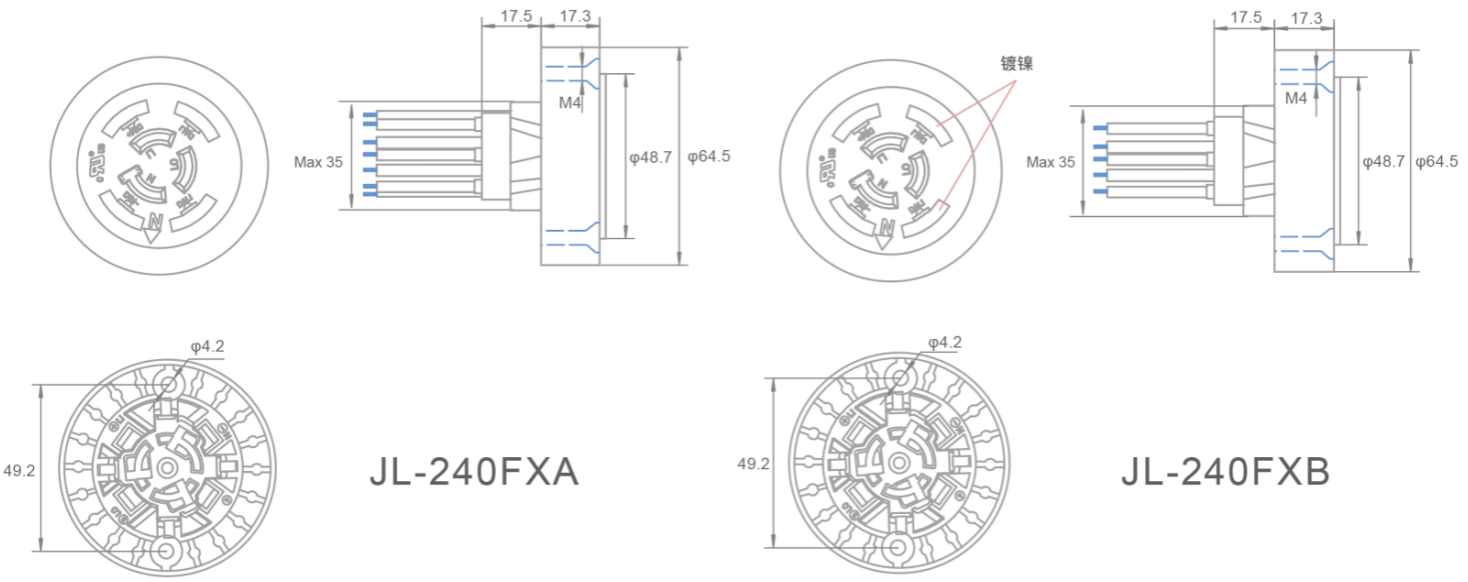

Product Dimensions
NEMA Socket Waterproof Twist Lock Dimming Receptacle NEMA 7P 5P 15A High Current Load
Product Features
  • Body constructed from polybutylene terephthalate
  • Contacts made from phosphor bronze
  • Gold pads made from nickel plated phosphor bronze with gold plating per ASTM B 488
  • Silicone gasket included
  • Enhanced waterproof performance
Technical Specifications
Model No. JL-240F
Applicable Volt Range 0~480VAC
Rated Frequency 50/60Hz
Power Loading 15A
Signal Control 0-30 VDC, 250 mA Max
Lead 16AWG,14AWG 6" min
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Outdoor Wiring Cable ●
Certifications ANSI C136.41-2013
NEMA Socket Waterproof Twist Lock Dimming Receptacle NEMA 7P 5P 15A High Current Load
Frequently Asked Questions
Q1: What is the NEMA Socket Waterproof Twist Lock Dimming Receptacle?
A: It is a waterproof twist-lock type socket receptacle designed for outdoor lighting, supporting dimming control and high-current power supply, widely used in street lamps and intelligent lighting systems.
Q2: What are the available pin configurations for this receptacle?
A: It provides 7-pin (7P) and 5-pin (5P) interface versions to match different types of dimming modules, controllers and power transmission requirements.
Q3: What is the rated load capacity of this receptacle?
A: It supports a high current load up to 15A, enabling stable power supply for large-power lighting fixtures and additional intelligent equipment.
Q4: What functions does the twist-lock and waterproof design provide?
A: The twist-lock structure ensures firm connection and anti-loosening; the waterproof design enables reliable operation in outdoor rain, snow and humid environments.
Q5: In what scenarios is this high-current NEMA receptacle mainly applied?
A: It is mainly used in road lighting, intelligent street lamps, landscape lighting, industrial outdoor lighting and other occasions requiring dimming and high-power load support.
