Fixed Twist Lock Dimmable Receptacle 5P 7P Curved Contact Plate 5/7 Pin Options
JL-240XH Fixed Twist-lock Dimming Receptacle 5P/7P Curved Contact Plate

All JL-240XH series photocontrol receptacles are designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conforms to the newly published ANSI C136.41 standard to allow LED lamp multi-control through the receptacle.

This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.

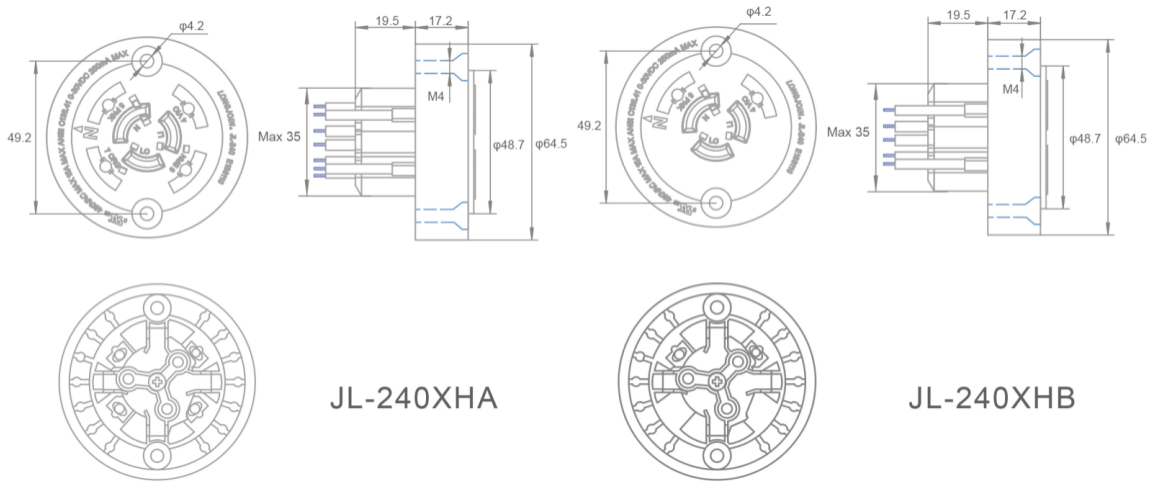

Product Size
Fixed Twist Lock Dimmable Receptacle 5P 7P Curved Contact Plate 5/7 Pin Options
Product Features
  • Glass-Fiber strengthened PBT construction
  • Gilded pads made from phosphor bronze nickel plated and gilded over 0.7μm
  • Gold plating per ASTM B 488 standard
  • Silicone gasket included
  • Gold pad narrowed for competitive cost
Specifications
Model No. JL-240XH
Applicable Volt Range 0~480VAC
Rated Frequency 50/60Hz
Load Rating 15A
Signal Control 0-30 VDC, 250 mA Max
Lead 16AWG/14AWG 6" min
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Outdoor Wiring Cable ●
Certifications ANSI C136.41-2013 Fixed Twist Lock Dimmable Receptacle 5P 7P Curved Contact Plate 5/7 Pin Options
Frequently Asked Questions
What is the Fixed Twist Lock Dimmable Receptacle?

It is a dimming receptacle with a fixed twist-lock structure, used for stable connection and dimming signal transmission in outdoor lighting control systems.

What pin configurations are available for this receptacle?

It provides 5-pin (5P) and 7-pin (7P) configurations, which can be selected according to different dimming protocols and wiring requirements.

What are the advantages of the curved contact plate design?

The curved contact plate provides better contact stability, stronger conductivity, and is resistant to loosening or sparking, ensuring long-term reliable operation outdoors.

What is the function of the fixed twist lock structure?

The fixed twist lock ensures firm connection, providing vibration resistance and anti-falling protection, making the product suitable for long-term outdoor use in street lamps and road lighting.

In what lighting scenarios is this receptacle mainly applied?

It is mainly used in smart street lamps, road lighting, landscape lighting, and industrial outdoor lighting that requires stable dimming control.
