0-480V Wide Voltage Rotatable Twist Lock Dimming Receptacle 5P 7P Extended Rotatable Version
JL-240TL Rotatable Twist-Lock Dimming Receptacle 5P/7P Extended Rotatable Version

Product Summary

All JL-240TL series photocontrol receptacles are designed for lanterns intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This series conforms to the newly published ANSI C136.41 standard to allow LED lamp multi-control through the receptacle.

This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrols with ANSI C136.41 conforming spring contacts, and provides 2 or 4 wiring leads at the rear side for signal connection.

This series also features 360° rotation limiting to conform with ANSI C136.10 requirements for rotatable applications.

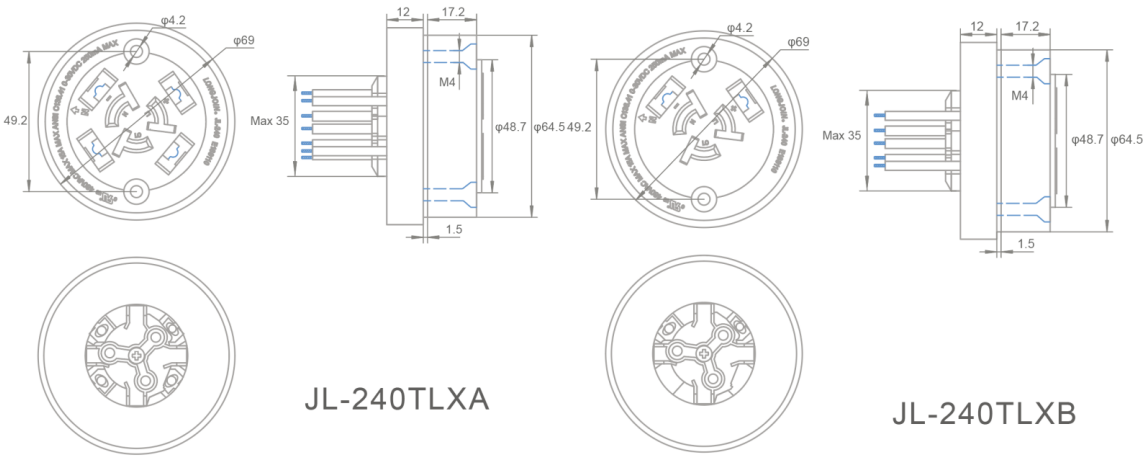

Product Size
0-480V Wide Voltage Rotatable Twist Lock Dimming Receptacle 5P 7P Extended Rotatable Version
Product Features
  • Body made from polybutylene terephthalate
  • Rotation parts made from polycarbonate
  • Contacts made from phosphor bronze
  • Gold pad made from nickel plated phosphor bronze with gold plating per ASTM B 488
  • Thermoplastic Elastomer gasket integrated
Specifications
Model No. JL-240TL
Applicable Volt Range 0~480VAC
Rated Frequency 50/60Hz
Load Rating 15A
Signal Control 0-30 VDC, 250 mA Max
Lead 16AWG, 14AWG 6" min
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Outdoor Wiring Cable ●
Certifications ANSI C136.41-2013 0-480V Wide Voltage Rotatable Twist Lock Dimming Receptacle 5P 7P Extended Rotatable Version
Frequently Asked Questions
Q1: What is the 0-480V wide voltage rotatable twist lock dimming receptacle?
A: It is a dimming socket receptacle supporting 0-480V wide voltage, equipped with a rotatable twist lock structure, used for stable power supply and dimming control in outdoor lighting systems.
Q2: What pin configurations does this product support?
A: It provides both 5-pin (5P) and 7-pin (7P) versions to meet different dimming signal transmission and wiring requirements of various lighting fixtures.
Q3: What are the advantages of the extended rotatable design?
A: The extended rotatable structure allows flexible angle adjustment during installation, improves adaptability to different lamp positions, and makes wiring and installation more convenient.
Q4: What is the benefit of the 0-480V wide voltage design?
A: The wide voltage range enables the receptacle to work stably under different power supply systems, suitable for high-voltage street lamps, industrial lighting and various public lighting projects.
Q5: In which scenarios is this extended rotatable dimming receptacle mainly used?
A: It is mainly used in road lighting, smart street lamps, landscape lighting, industrial and mining lighting and other occasions requiring wide voltage and flexible installation.
