Specifications
Brand Name :
LongJoin
Model Number :
JL-250F
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated operating voltage :
120~277VAC
Max operating voltage :
320VAC
AC line rated load :
15A
Control line rated load :
0-30 VDC, 1500mA
Certification :
ANSI C136.41-2013,UL 1449,UL 773,RoHS,RU,CE,CB,UKCA
Real-world Scenarios :
Utility-scale Projects
Description
Built In Surge Protection Adapter NEMA Socket 7P 347VAC And 480VAC Versions
JL-250F Built in Surge Protection Adapter Socket
The JL-250F is designed for outdoor lamps and installed between the traditional NEMA socket and the light controller. It enables rapid transformation to improve the surge protection capability of NEMA interface lamps. The SPD inside lamps can be replaced by JL-250F, providing more convenient installation, maintenance and replacement while effectively reducing operation and maintenance costs.
The product features built-in surge differential mode + surge common mode protection, significantly improving the light controller's performance in complex electromagnetic interference environments. The combination design of temperature fuse and MOV+GDT prevents heating deterioration caused by MOV aging and over-energy. The center bottom ground hole design provides grounding for the lamp controller and enhances common mode suppression capability.

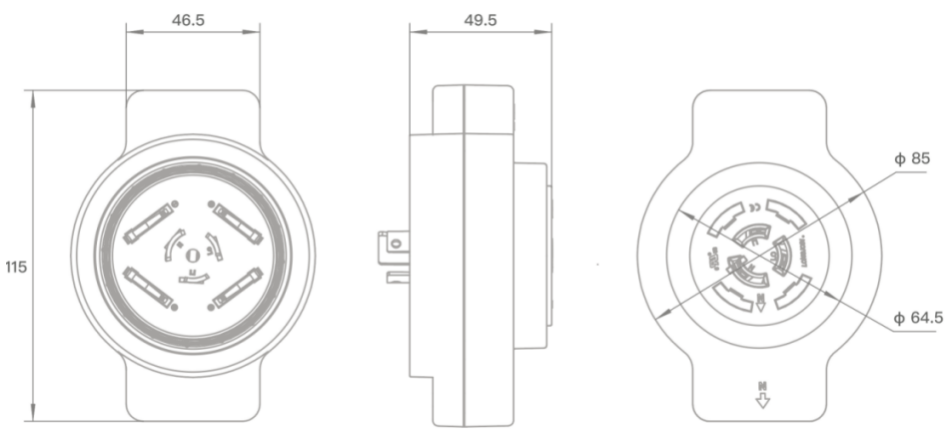

Product Dimensions
Built In Surge Protection Adapter NEMA Socket 7P 347VAC And 480VAC Versions
Product Features
  • Product certification: ANSI C136.41 UL 1449 UL 773 ROHS CB CE UKCA
  • Component certification: UL CUL TUV VDE PSE CQC ROHS REACH
  • 20KV/10KA, 10KV/5KA different protection levels available
  • Differential mode + common mode protection (L-N, L-G, N-G)
  • 1.2/50μs & 8/20μs combined wave performance tests
  • Center ground hole design
  • Diagnostic LED indicator
  • GDT+MOV technology prevents MOV aging from forming leakage current, ensuring longer life
  • Built-in temperature fuse with over-temperature protection
  • High strength PC material construction
  • Gold-plated signal terminals in phosphor bronze nickel plating (ASTM B 488 compliant)
  • Copper plug components
  • Flat design for reduced wind resistance
  • Ergonomic mechanical handshake design for easier rotation
  • 347VAC and 480VAC versions available
Technical Specifications
Specification 250F15CL 250F15C 250F15DL 250F15D 250F21CL 250F21C 250F21DL 250F21D
Rated operating voltage 120~277VAC
Max operating voltage 320VAC
Rated operating frequency 50/60Hz
Rated surge voltage 10KV 10KV 20KV 20KV 10KV 10KV 20KV 20KV
Rated surge current 5KA 5KA 10KA 10KA 5KA 5KA 10KA 10KA
Max surge current 10KA 10KA 20KA 20KA 10KA 10KA 20KA 20KA
Max energy 300J 300J 405J 405J 300J 300J 405J 405J
Clamping voltage 1200V 1150V 1200V 1150V 1150V 1100V 1150V 1100V
L-N surge protection √
L-G,N-G surge protection √ √ √ √
Ground hole √ √ √ √
Leakage current suppression (GDT) √ √ √ √
Over-temperature protection √
Diagnostic LED √
AC line rated load 15A
Control line rated load 0-30 VDC, 1500mA
Operating temperature -40°C ~ +70°C
Operating humidity HR96%
Lifetime long-life Normal long-life Normal long-life Normal long-life Normal
Certification ANSI C136.41-2013, UL 1449, UL 773
Built In Surge Protection Adapter NEMA Socket 7P 347VAC And 480VAC Versions
Frequently Asked Questions
Q1: What is the Built In Surge Protection Adapter NEMA Socket?
A: It is a NEMA standard socket with built-in surge protection function, used for outdoor lighting control systems to provide stable power and signal connection for dimming and photosensitive control modules.
Q2: What is the role of the built-in surge protection design?
A: Built-in surge protection effectively suppresses instantaneous overvoltage and surge interference, protecting lighting control modules and driver circuits from damage while extending equipment service life.
Q3: What pin specification does this NEMA socket adopt?
A: This product adopts a 7-pin (7P) interface design, meeting transmission needs for high voltage, power supply and multi-channel dimming signals simultaneously.
Q4: What voltage versions are available for this product?
A: It provides two voltage versions: 347VAC and 480VAC, suitable for medium and high voltage outdoor lighting systems in different regions and projects.
Q5: In which scenarios is this surge protection NEMA socket mainly applied?
A: It is mainly used in road lighting, intelligent street lamps, industrial and mining lighting, and outdoor public lighting with high voltage and high surge risk.
