NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage
Specifications
Brand Name :
LongJoin
Model Number :
JL-240SXB
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Applicable Volt Range :
0~480VAC
Load Rating :
15A
Signal Control :
0-30 VDC, 250 mA Max
Lead :
16AWG,14AWG 6" min
Certifications :
RoHS,RU,CE,CB,UKCA
Real-world Scenarios :
Highway & Expressway Lighting
Description

JL-240SXB Fixed Twist-lock dimming receptacle 5P Ultra thin version

Product Summary

All the JL-240SXB photocontrol receptacle was designed for the lanterns those intended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This product conforms newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle.

This series offers 2 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 wiring leads at rear side for signal connection.

Especially, this product does not occupy any space inside the lantern for those cases less internal space available.

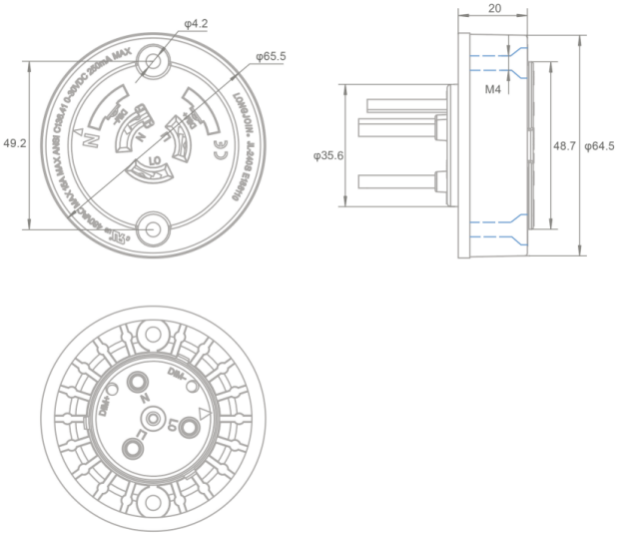

Product size

NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage

Product Features

  • Glass-Fiber strongen PBT

  • Gilded Pads made from phophor bronze Nickel plated and gilded over 0.7um

  • Gold plating per ASTM B 488

  • Silicone gasket applied toflange

  • Shorter body design for slim fixtures

Specifications

Model No.

JL-240SXB

Applicable Volt Range

0~480VAC

Rated Frequency

50/60Hz

Load Rating

15A

Signal Control

0-30 VDC, 250 mA Max

Lead

16AWG/14AWG

6" min

Ambient Temperature

-40°C ~ +70°C

Related Humidity

96%

Outdoor Wiring Cable

●

Certifications

NEMA Socket Fixed Twist Lock Dimming Receptacle 5P Ultra Thin Version 0-480V Wide Voltage

FAQs

Q1: What is the NEMA Socket Fixed Twist Lock Dimming Receptacle 5P?
A: It is a 5-pin dimming receptacle with NEMA interface and fixed twist-lock structure, specially designed for outdoor intelligent lighting control systems.
Q2: What are the advantages of the ultra-thin version design?
A: The ultra-thin body greatly saves installation space, fits modern compact lamp designs, and improves the overall integration and aesthetics of lighting fixtures.
Q3: What is the performance of the 0–480V wide voltage design?
A: It supports a wide voltage range of 0–480V, enabling stable operation under different power supply systems and strong adaptability to various road and industrial lighting projects.
Q4: What is the benefit of the fixed twist lock structure?
A: The fixed twist lock ensures a firm, anti-loosening and reliable connection, effectively preventing disconnection caused by outdoor vibration, wind and rain, and ensuring long-term stable use.
Q5: In which scenarios is this receptacle mainly used?
A: It is widely used in street lighting, smart street lamps, landscape lighting, industrial lighting and other occasions requiring dimming control and wide voltage adaptation.
