15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
Specifications
Brand Name :
LongJoin
Model Number :
JL-200V
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power Volt Range :
0~480VAC
Load Rating :
15 A
Ambient Temperature :
-40°C ~ +70°C
Related Humidity :
96%
Certifications :
RoHS,RU
Real-world Scenarios :
Highway & Expressway Lighting
Description
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
JL-200V Photocontrol Receptacle

The JL-200V rotary lock type light control switch socket series products are specifically designed for outdoor lighting fixtures, providing power control for rotary lock type light controllers/switches on lighting fixtures.

This product features three locking terminals that comply with ANSI C136.10 and ANSI/UL773 area lighting standards for plug-in and rotary locking optical controllers.

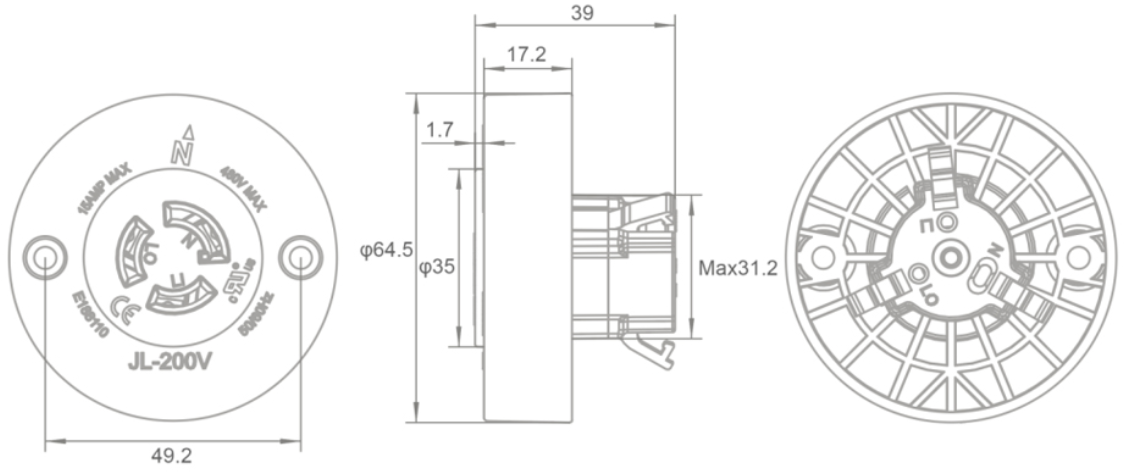

Product Dimensions
15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
Product Features
  • Bakelite body for long-life service
  • Silicone gasket for superior waterproof performance
  • V-shaped socket design eliminates electrical wires, enabling direct plug-and-connect installation for lamp assembly factories
  • Eliminates intermediate wiring strips, reducing connection costs
  • Patented card pin design provides strong wire locking and supports miswiring removal
  • Combination use achieves IP66 protection level (when paired with JL-208-IP66)
  • Contacts made of durable Phosphor bronze material
Technical Specifications
Model No. JL-200V
Power Volt Range 0~480VAC
Rated Frequency 50/60Hz
Load Rating 15 A
Ambient Temperature -40°C ~ +70°C
Related Humidity 96%
Applicable cables Power cord: 16AWG, double insulated 16AWG, peeled head with tin lining, power cord peeled head 12-15mm
Certifications 15A High Current Load Photocontrol Receptacle Plug In Connection NEMA 3P
Frequently Asked Questions
What is the 15A high current load photocontrol receptacle?

It is a plug-in type socket for photosensitive control devices, supporting 15A high current load, primarily used for outdoor lighting control systems.

What interface standard does this receptacle adopt?

It adopts the standard NEMA 3-pin (3P) interface, which offers excellent universality and compatibility with mainstream photocontrol products.

What are the characteristics of the plug-in connection design?

The plug-in structure enables quick and convenient installation and replacement, simplifies on-site wiring, and improves maintenance efficiency.

What is the advantage of 15A high current load capacity?

It can stably carry high-power lighting loads, ensuring safe and reliable operation in high-power street lamp and outdoor lighting systems.

In which scenarios is this NEMA 3P photocontrol receptacle mainly used?

It is primarily used in road lighting, street lamps, courtyard lights, park lighting and other public outdoor lighting applications with high-power requirements.
