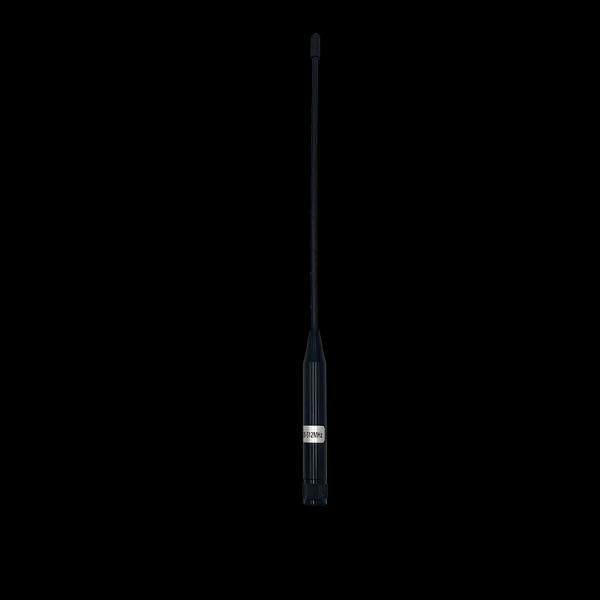

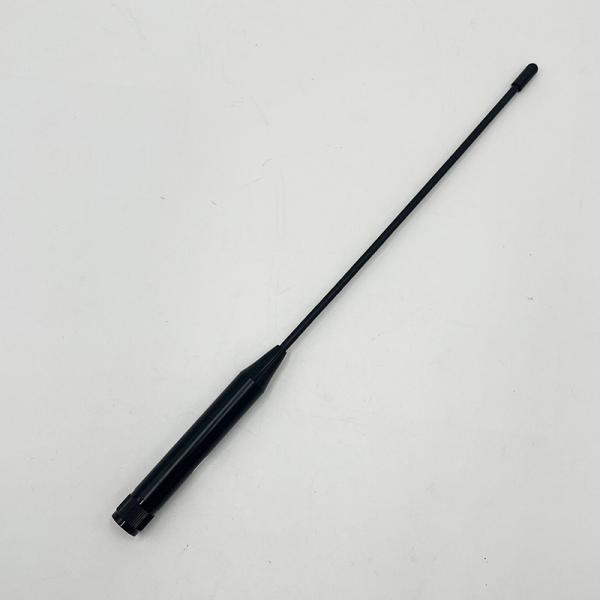

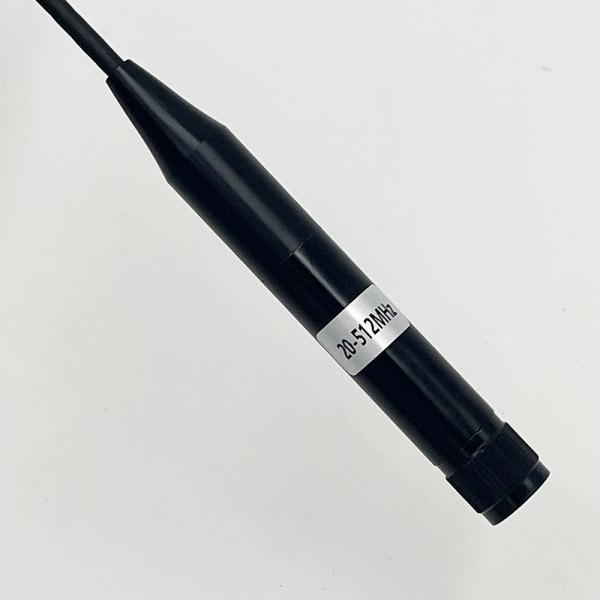

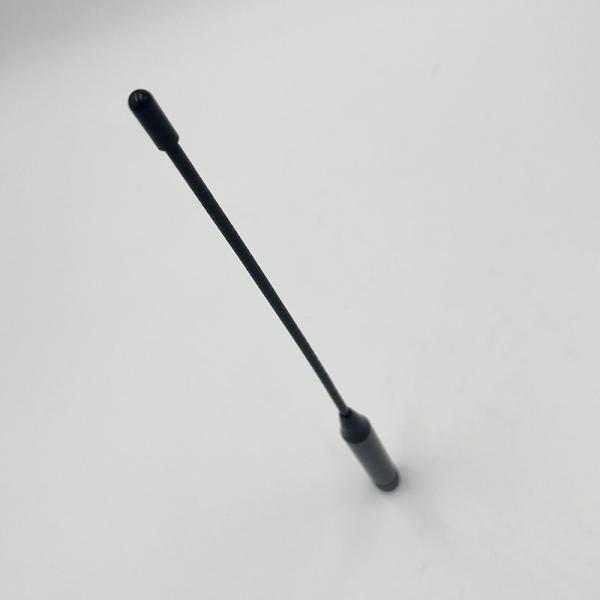

SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
SMA male 20-512M Handheld Device Soft Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11895-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
20-512MHz
VSWR :
<2.0
Peak Gain :
1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 20-512MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 38-85°
Max Power 50W
B. Material & Mechanical Characteristics

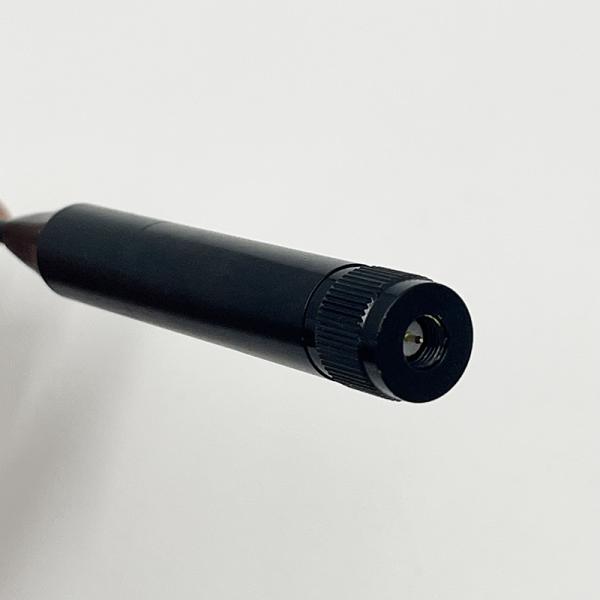

Connector Type SMA-J connector
Dimension Φ15*305mm
Weight 0.06Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA male 20-512M Handheld Device Soft Antenna

2.2 Total Efficiency & Gain:

频率(MHz) 增益(dBi) 效率(%)
20 -1.3 17.1
40 -0.8 15.6
60 -2.6 23.9
80 -3.7 22.0
100 -4.6 18.8
120 -3.7 22.1
140 -4.6 17.1
160 -4.9 15.6
180 -3.6 20.6
200 -2.9 27.4
220 -3.5 20.0
240 -2.4 24.7
260 -2.3 25.2
280 -0.3 40.8
300 -0.3 42.0
320 -0.3 38.0
340 -0.1 40.4
360 -0.8 35.5
380 -0.5 35.3
400 -0.4 33.7
420 0.8 35.6
440 1.0 41.1
460 0.9 46.5
480 -0.2 44.2
500 -0.8 42.7
512 -1.6 34.5
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
100MHz SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna
300MHz SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna
500MHz SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna SMA male 20-512M Handheld Device Soft Antenna
