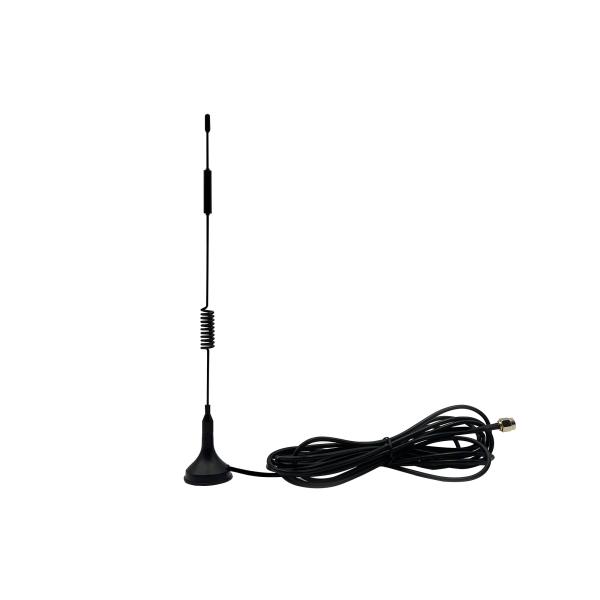

Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10707-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960MHz; 1710-2700MHz
VSWR :
<1.5
Peak Gain :
-1.4dBi
Impedance :
50
Description

Magnetic Mount Antenna 4G Antenna RG174 Cable 30x225

1. Specification

A. Electrical Characteristics
Frequency 824-960MHz 1710-2700MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <2.0 <2.0
Gain -1.4dBi -2.2dBi
Efficiency ≈10% ≈10%
Polarization Linear Linear
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 34-146° 24-53°
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG174 Cable
Dimension Φ30*225mm
Weight 0.048Kg
Antenna material Carbon Steel
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm

2.2 Total Efficiency & Gain:

Frequency(MHz) 690.0 720.0 750.0 780.0 810.0 840.0 870.0 900.0 930.0 960.0
Gain (dBi) -7.76 -9.19 -9.09 -7.15 -8.46 -9.13 -8.50 -3.44 -1.47 -2.18
Efficiency (%) 9.35 6.67 6.51 7.11 4.30 3.07 4.25 14.68 17.47 24.22

Frequency(MHz) 1700.0

1800.0

 1900.0 2000.0 2100.0 2200.0 2300.0 2400.0 2500.0 2600.0 2700.0
Gain (dBi) -4.13 -2.57 -4.53 -3.24 -2.24 -4.60 -5.37 -6.84 -5.09 -7.87 -7.97
Efficiency (%) 14.74 13.76 9.89 13.53 15.48 11.42 7.60 5.95 7.06 5.25 5.70
Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
690MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
840MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
960MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm

3D 2D-Horizontal 2D-Vertical
1700MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
2200MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
2700MHz Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm Gps External Magnetic Mount Antenna 4G RG174 Cable 30x225mm
