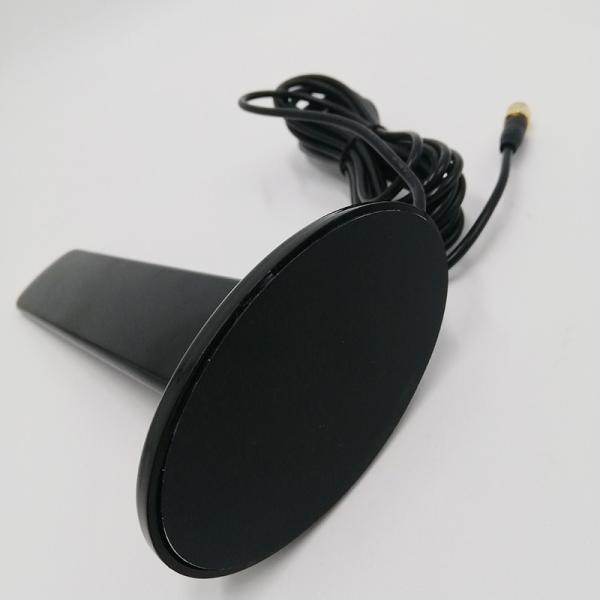

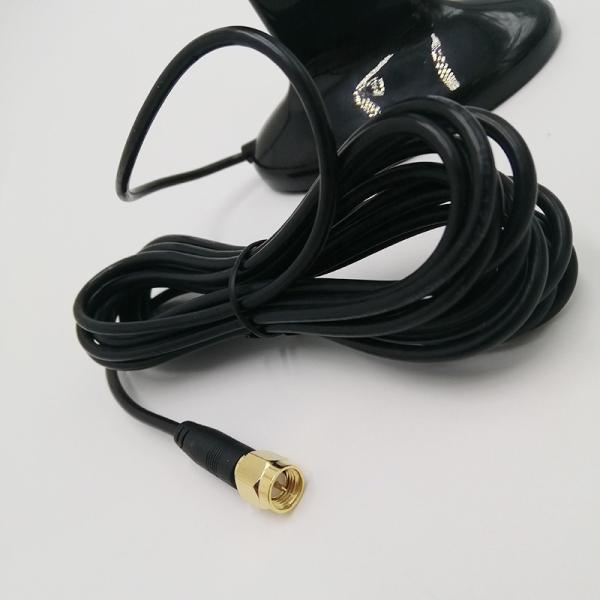

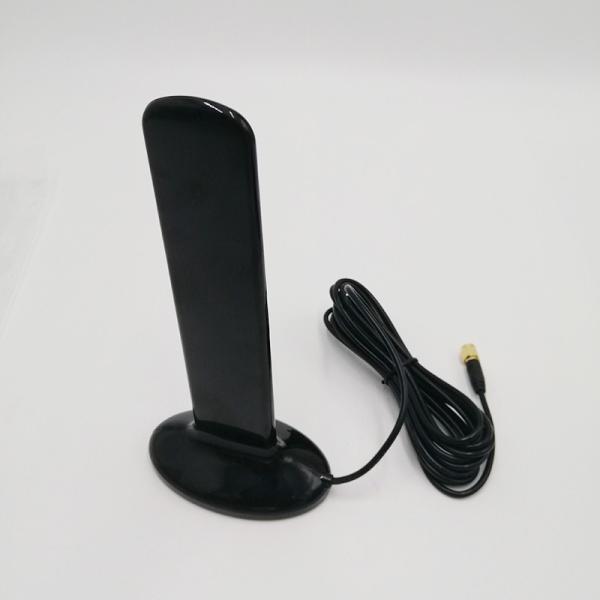

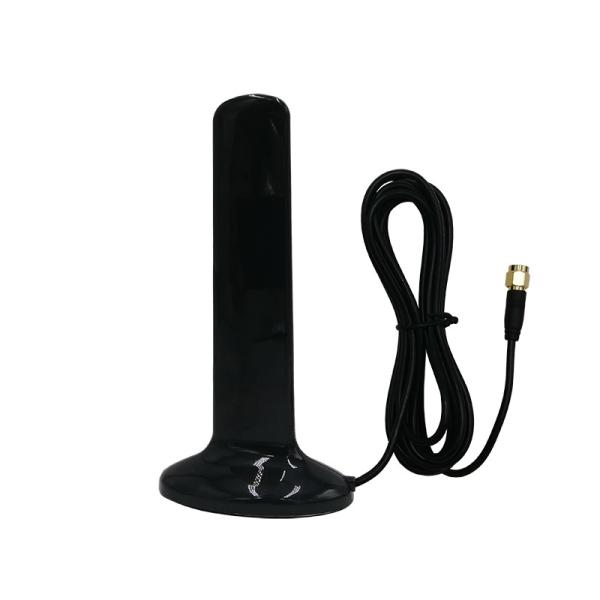

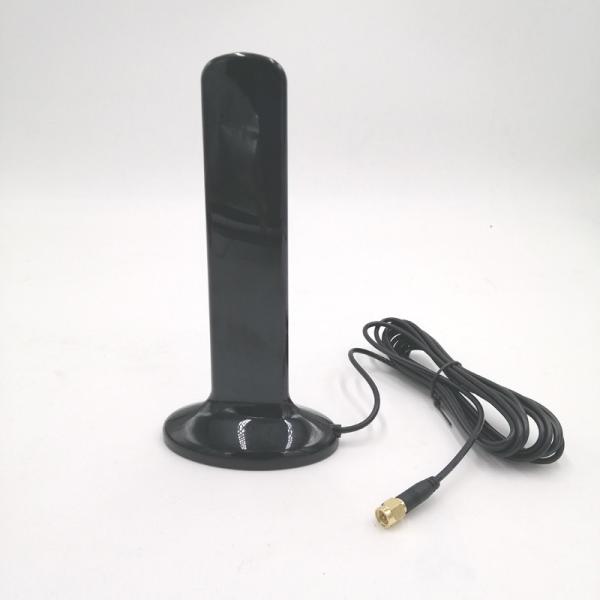

4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10095-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
698-960/1710-2700MHz
VSWR :
<2.5
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 698-960/1710-2700MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Polarization Linear
Horizontal Beamwidth 360°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG174 Cable L=3M
Dimension Φ62*208mm
Weight 0.12Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

4G Sma Mag Mount Vehicle Antenna Chuck SMA Male RG174 Line 3m Router Gateway Vehicle Sailboat Knife Type Flat Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%) Frequency(MHz) Gain(dBi) Efficiency(%)
698 -1.0 32.0 1710 -2.5 20.7
720 -0.9 35.6 1800 -2.0 21.2
740 -0.7 38.3 1900 -3.5 21.5
760 -0.5 45.0 2000 -4.6 18.1
780 -0.8 42.4 2100 -3.6 21.2
800 -0.4 41.6 2200 -3.4 20.6
820 -0.6 38.7 2300 -3.4 19.6
840 -0.2 37.9 2400 -3.2 18.9
860 -0.9 29.3 2500 -2.9 17.9
880 -0.7 30.5 2600 -3.8 15.4
900 0.3 33.8 2700 -4.2 15.8
920 0.6 33.3
940 0.9 36.3
960 0.6 35.1

Test Item

Procedure

Requirement

1. Visual inspection and Dimension

Check

Applicable methods using x5

magnification

 follow specification
2. Rapid Changing of Temperature

-40˚C (30minutes) to 90˚C (30minutes);

24 cycles

After 2 hours recovery:

1. no visible damage

2. Freq. Tol.: < ±5%
3. Damp Heat 24 hours at 60˚C; 90 ~ 95% RH

After 2 hours recovery:

1. no visible damage

2. Freq. Tol. : < ±5%
4. Endurance 24 hours at 90˚C

After 2 hours recovery:

1. no visible damage

2. Freq Tol.: < ±5%
