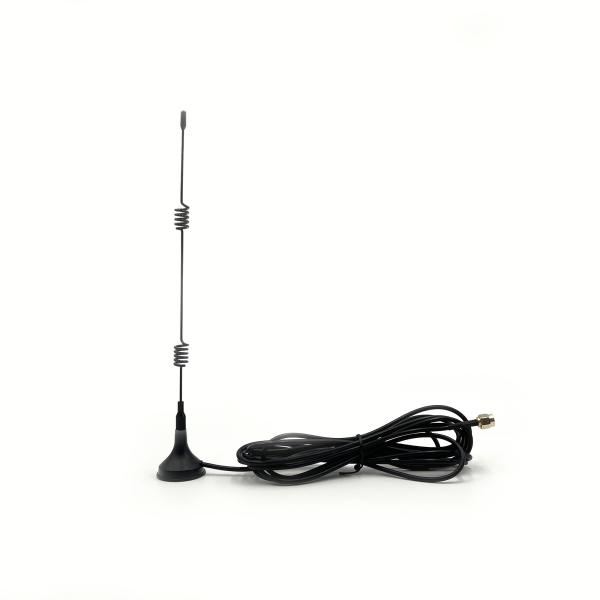

2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10691-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
-2.1dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain -2.1dBi
Efficiency ≈12%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25-28°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Cable Type RG174 Cable
Dimension Φ30*223mm
Weight 0.046Kg
Antenna material Carbon Steel
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) -3.28 -3.33 -3.25 -3.05 -3.05 -2.92 -2.43 -2.15 -2.21 -2.28 -2.13
Efficiency (%) 11.68 11.18 11.07 11.54 11.27 11.27 12.24 12.51 11.99 11.52 11.75
2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
2450MHz 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
2500MHz 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223 2.4 Ghz Magnetic Mount Antenna WIFI Antenna RG174 Cable 30x223
